| Weight | 0.78 kg |
|---|---|
| Dimensions | 22 × 12 × 8 cm |
| Hign-concerned Chemical | None |
| Is Smart Device | no |
| Operating Mode | Auto+Manual |
| Measuring Capacitance Range | 0.001nF~99.99mF |
| Operating Temperature | -20 – 10000 ℃ |
| Measuring Resistance Range | 0.01Ω~99.99MΩ |
| Certification | CE, FCC, RoHS |
| DIY Supplies | ELECTRICAL |
| Model Number | ZT-702S |
| Measuring Inductance Range | / |
| Origin | Mainland China |
| Brand Name | cretrust |
| Dimensions | 177*89*40mm |
| DC Current | 0.001A~10A |
| AC Current | 0.001A~10A |
| AC Voltage | 0.1mV~750.0V |
| DC Voltage | 0.1mV~999.9V |
| Display Type | Digital display |
| Frequency | 0.01Hz~999.9kHz |
| Diode | Yes |
| On/Off beep | Yes |
| True RMS | Yes |
| Data Hold | Yes |
| Screen backlightAuto Power Off | Yes |
| Low battery alert | Yes |
| Display | 9999 Counts |
| Material | ABS+TPE |
| Sampling Rate | 3 times/sec |
| Broadband | 10MHz |
| Sampling method | Real-time sampling |
| Real-time sampling rate | 48MSa/s |
| Input Coupling | DC, AC |
| Input impedance | 1Ω2, @16pf |
| Probe attenuation | X1, X10 |
| Maximum input voltage | 150V(DC+AC peak) |
| Sampling rate range | 1.5Sa/s-48MSa/s |
| Waveform interpolation | (sinx)x |
| Sweep speed range | 50ns/div-20s/div |
| Time base accuracy | 20ppm |
| Recording length | Up to 65Kbyte |
| Display size | 2.8" HD color screen |
Instock

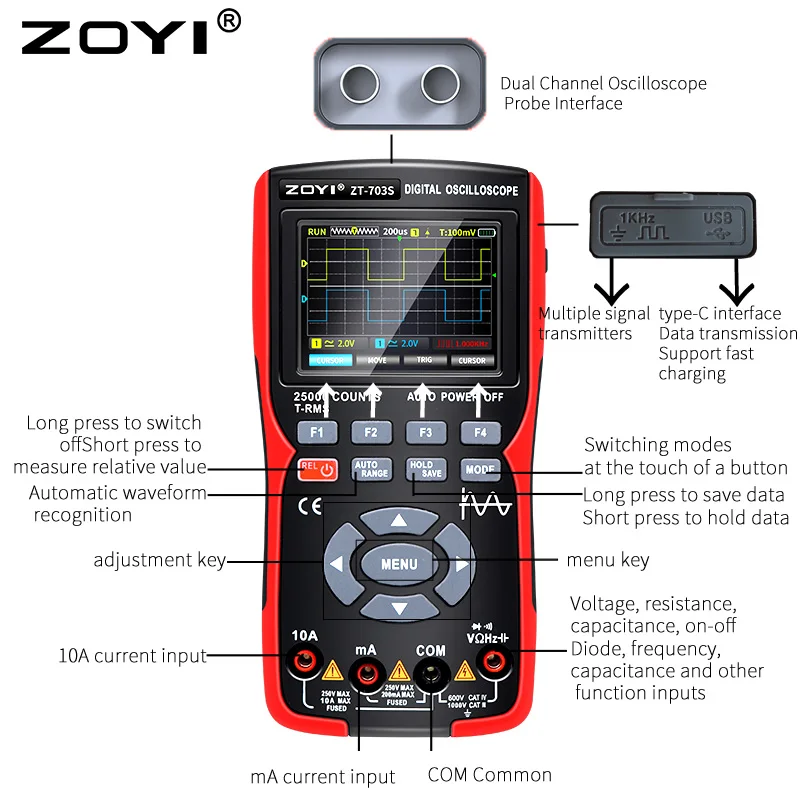

Digital Oscilloscope Multimeter Dual-channel Real-time sampling Signal Generator rate 48MSa/s True RMS Professional Tester
