| Weight | 1.5 kg |
|---|---|
| Dimensions | 18 × 18 × 10 cm |
| Hign-concerned Chemical | None |
| is_customized | Yes |
| Model Number | AV-160D |
| Brand Name | SOZZDA |
| Origin | Mainland China |
| Certification | CE |
| Vibration Sensor | 3-Axis Piezoelectric accelerometer |
| Axial Vibration | Any one axis of X, Y, Z or 3 axes of XYZ |
| Accuracy | ±5%+2 digits |
| Measurement Range | Displacement : 0.001-4.000 mm equivalent peak-peak / 0.04-160.0 mil, Velocity : 0.1-400.0 mm/s true RMS / 0.004-16.00 inch/s, Acceleration : 0.1-400.0 m/s² equivalent peak / 0.3-1312 ft/s² / 0.0-40g |
| Frequency Range | Displacement : 10Hz. ~ 1kHz., Velocity :10Hz. ~1kHz, Acceleration: 10Hz. ~ 10kHz. |
| Analogue Output | AC output 0~2.0V peak full scale (load resistance: above 10k) |
| Power Supply | 4×1.5vAAA (UM-4) Battery |
| Size | 140x70x30mm |
| Weight | 130g (Not including Batteries) |
Instock

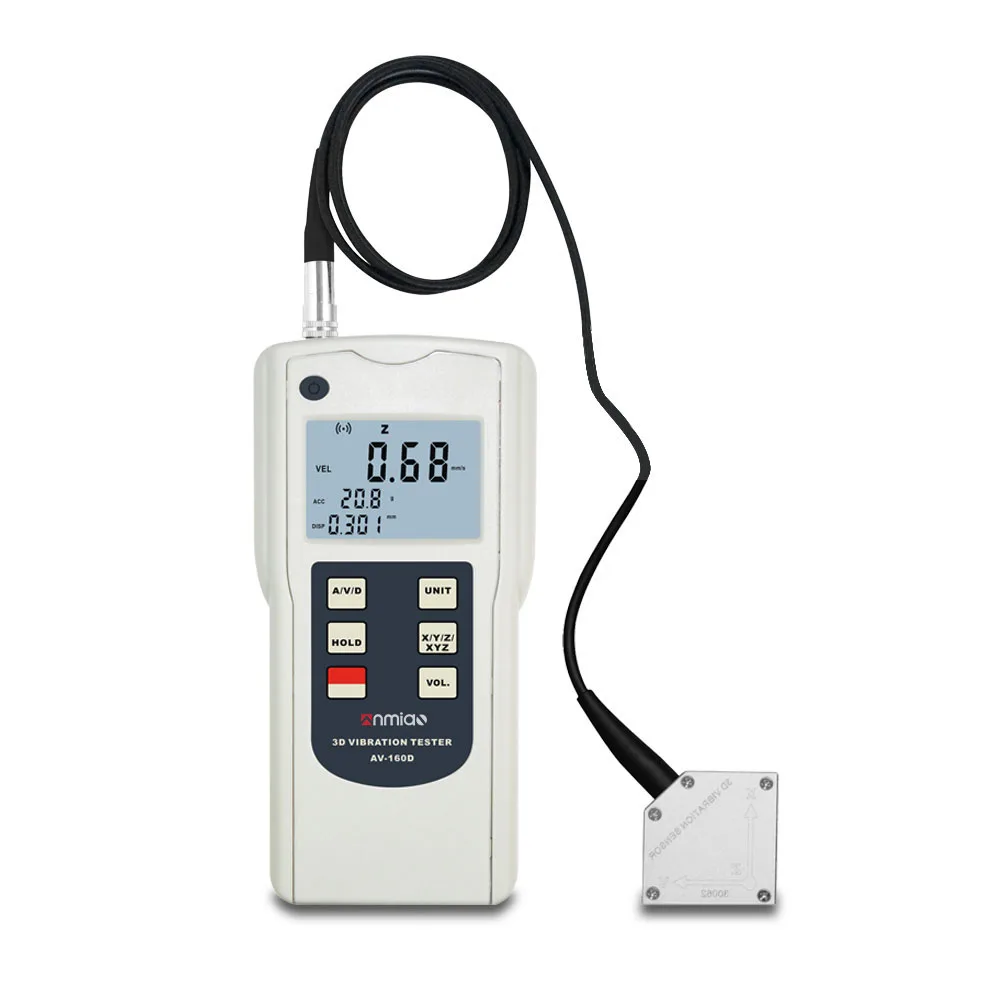

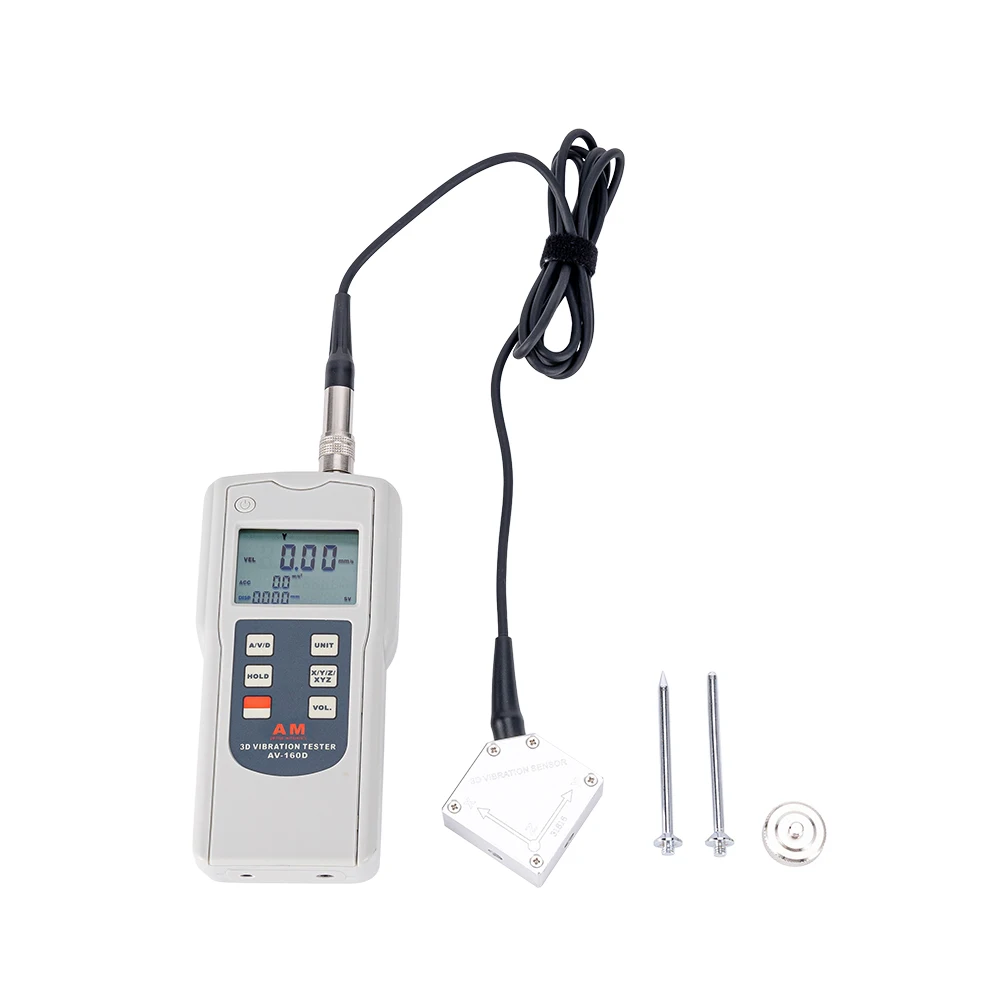

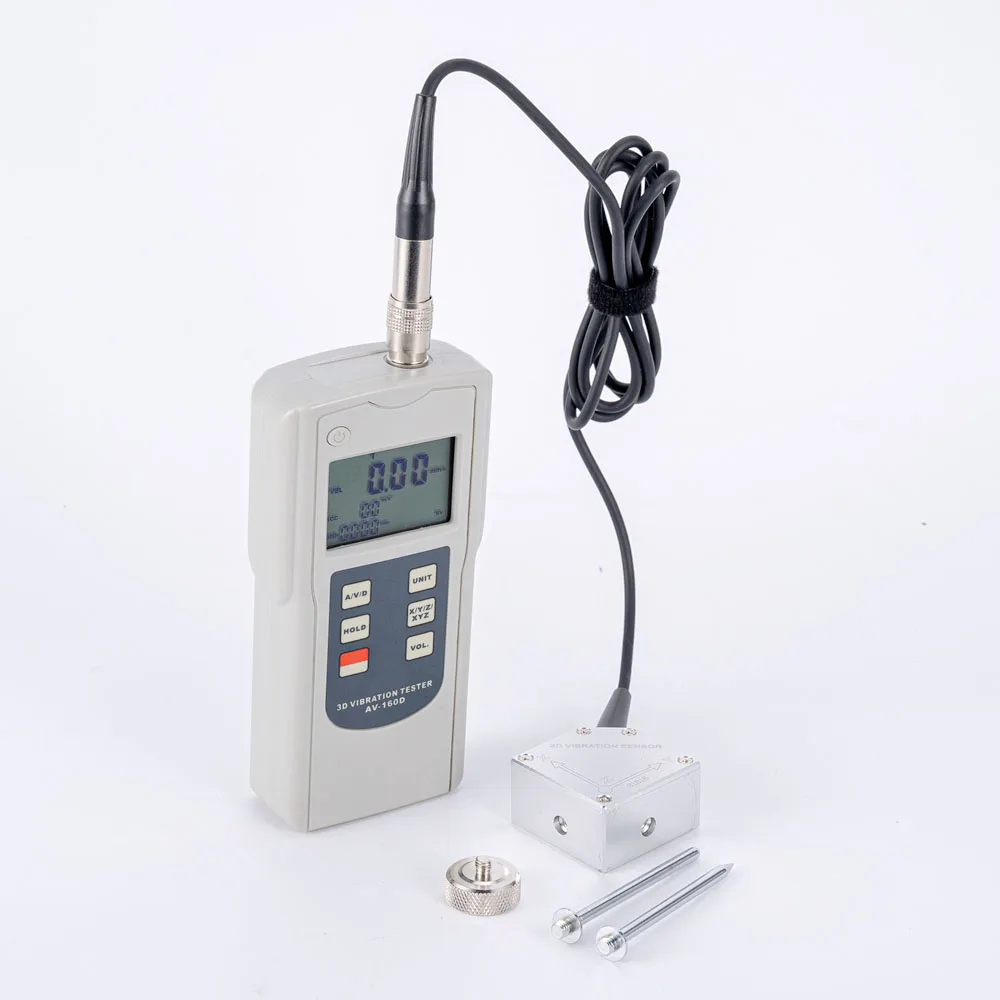

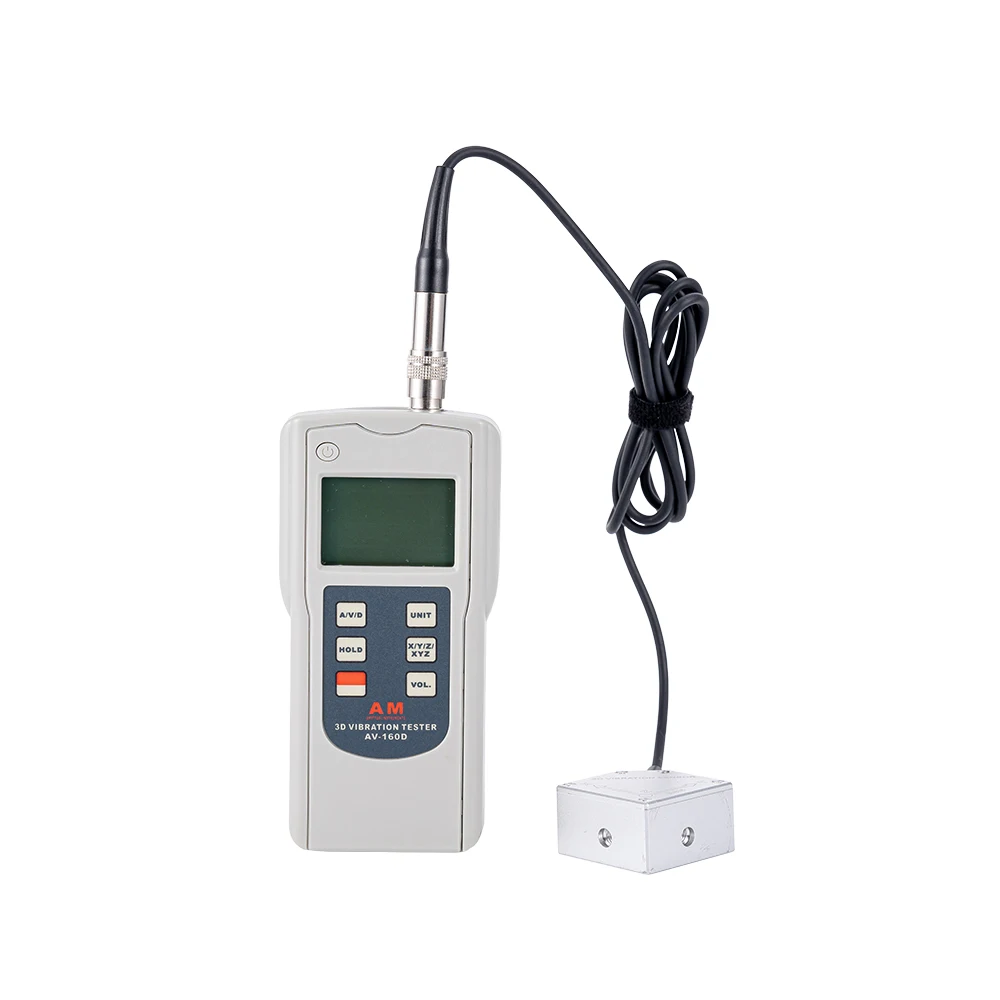

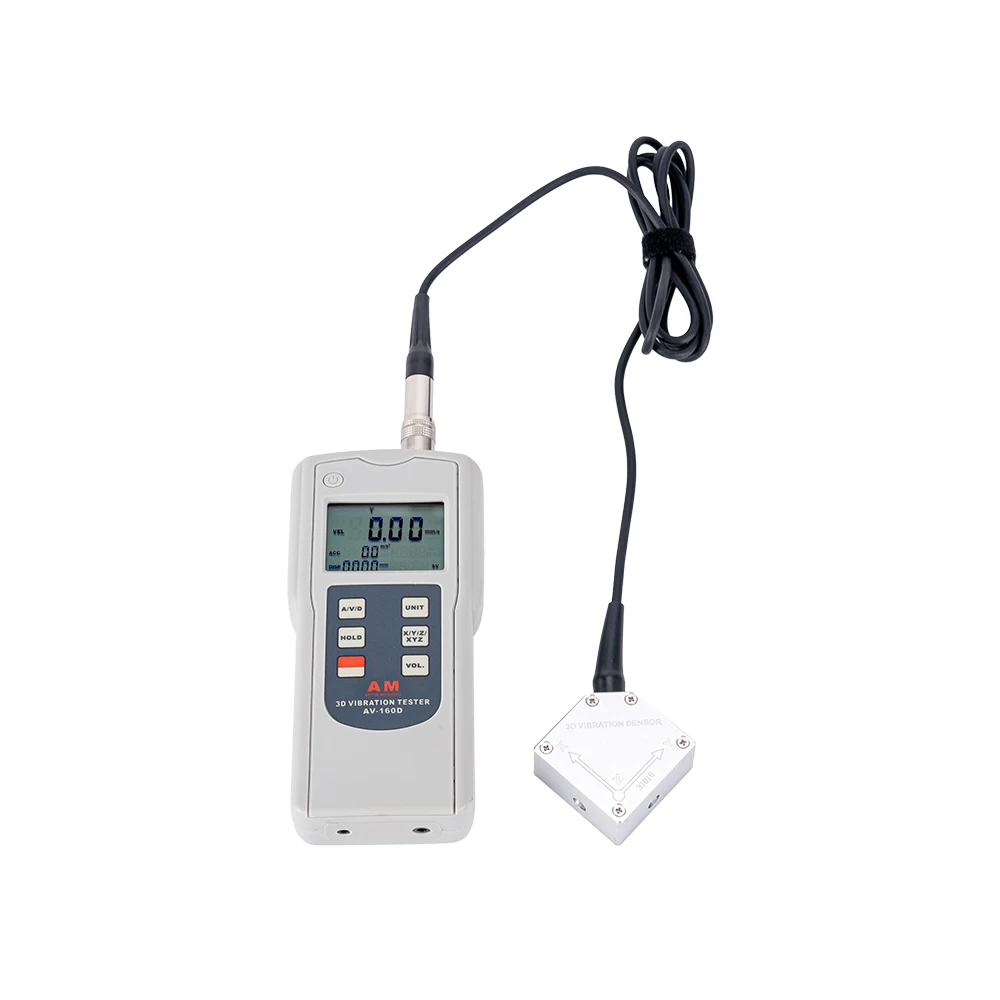

AV-160D 3D Triaxial Vibration meter digital Vibration Tester 10 Hz ~ 1K Hz Mechanical Motion Vibrometer Piezo Vibration Sensor
