| Weight | 1.5 kg |
|---|---|
| Dimensions | 22 × 12 × 9 cm |
| Hign-concerned Chemical | None |
| is_customized | Yes |
| Model Number | AV-160B |
| Brand Name | SOZZDA |
| Origin | Mainland China |
| Certification | CE |
| Transducer | Piezoelectric accelerometer |
| Accuracy | ±5%+2 digits |
| Displacement | 0.001-4.000 mm equivalent peak-peak / 0.04-160.0 mil |
| Velocity | 0.1-400.0 mm/s true RMS / 0.004-16.00 inch/s |
| Acceleration | 0.1-400.0 m/s² equivalent peak / 0.3-1312 ft/s² / 0.0-40g |
| Frequency Range | Displacement : 10Hz. ~ 1kHz, Velocity :10Hz. ~1kHz., Acceleration: 10Hz. ~ 10kHz. |
| Analogue Output | AC output 0~2.0V peak full scale (load resistance: above 10k) |
| Power Supply | 4×1.5vAAA (UM-4) Battery |
| Size | 140x70x30mm |
| Weight | 130g (Not including Batteries) |
Instock

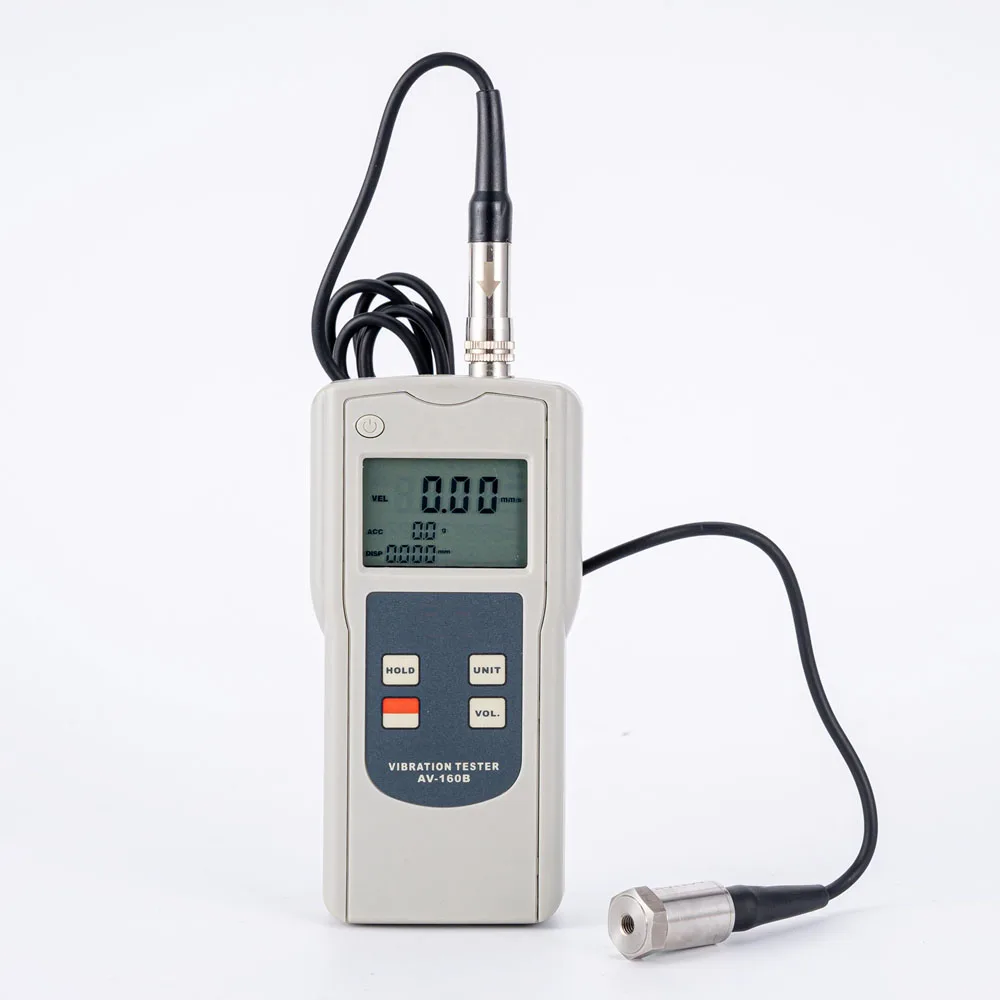

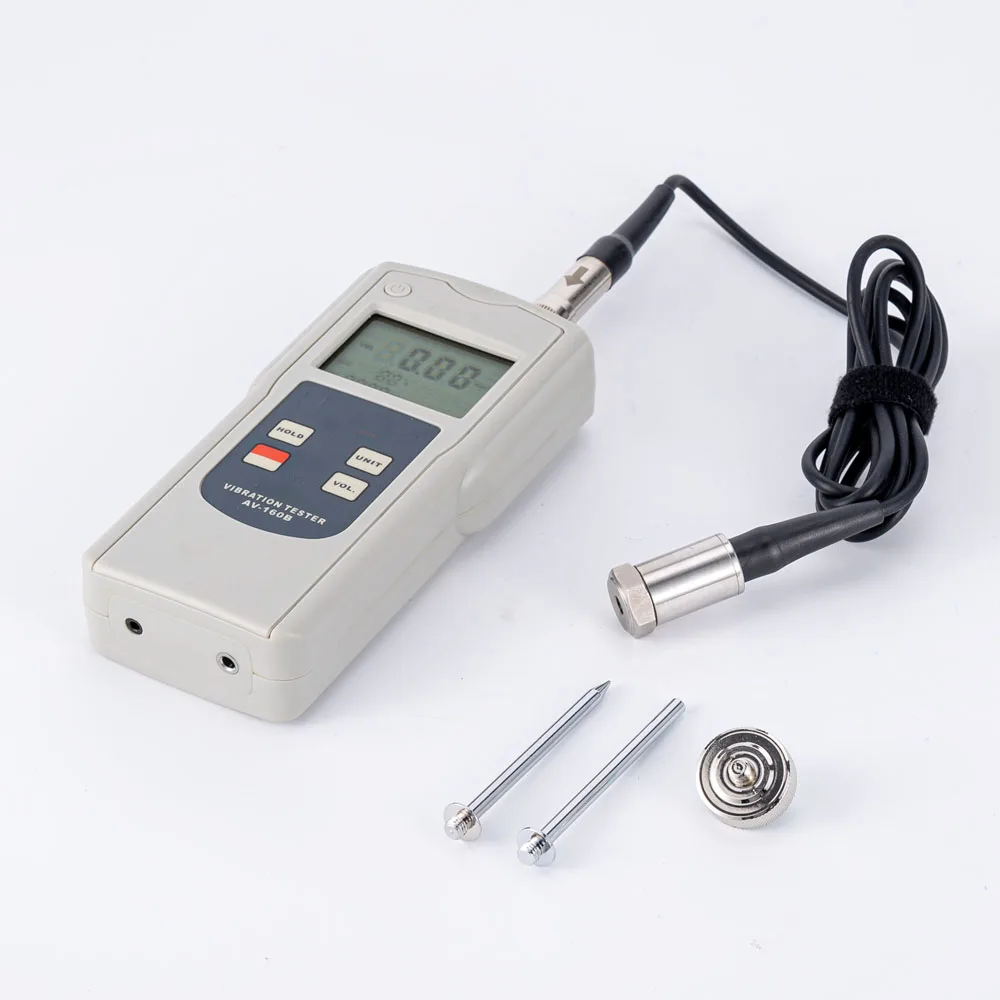

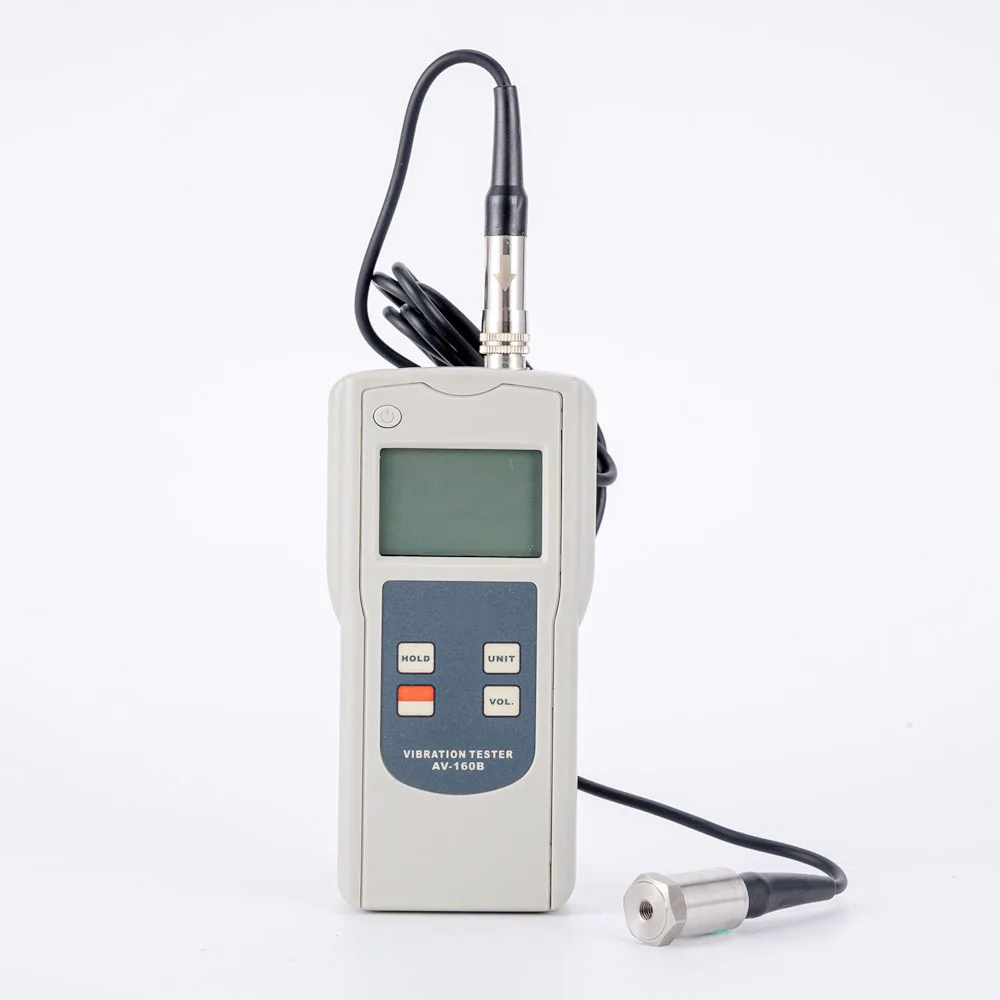

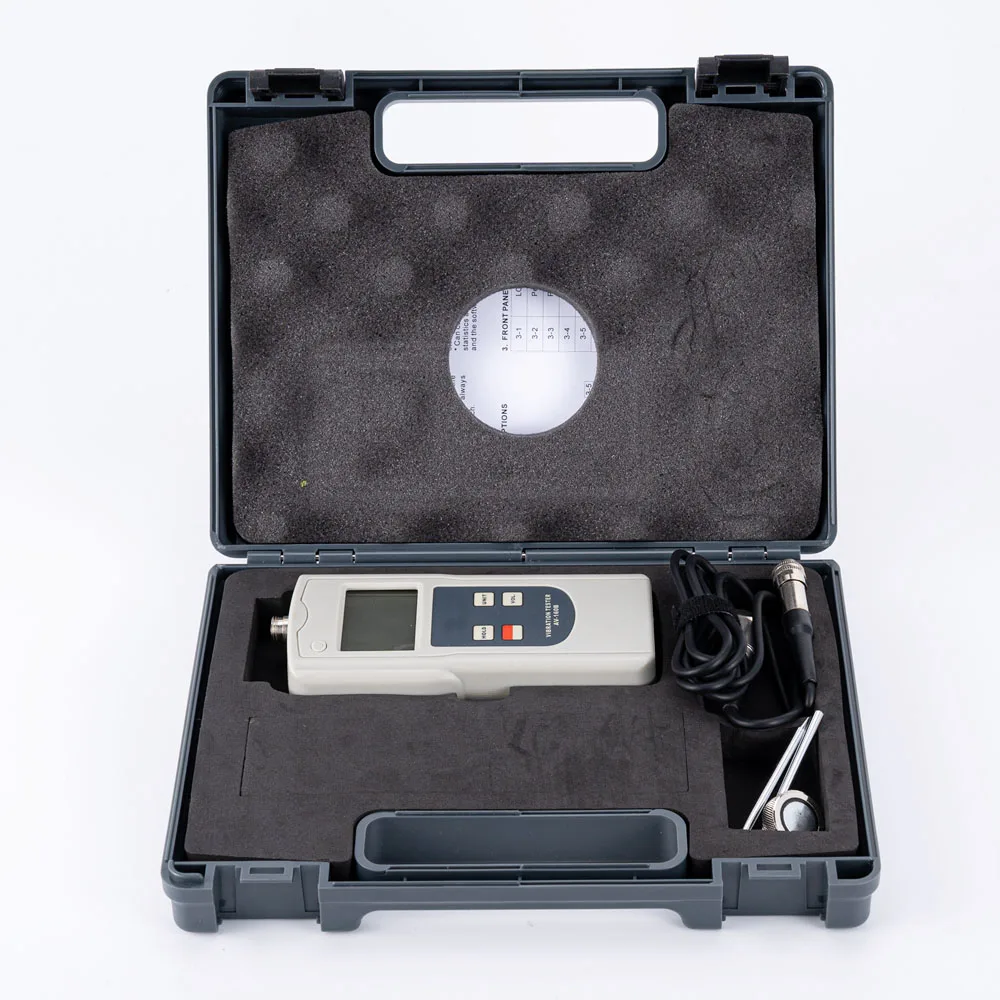

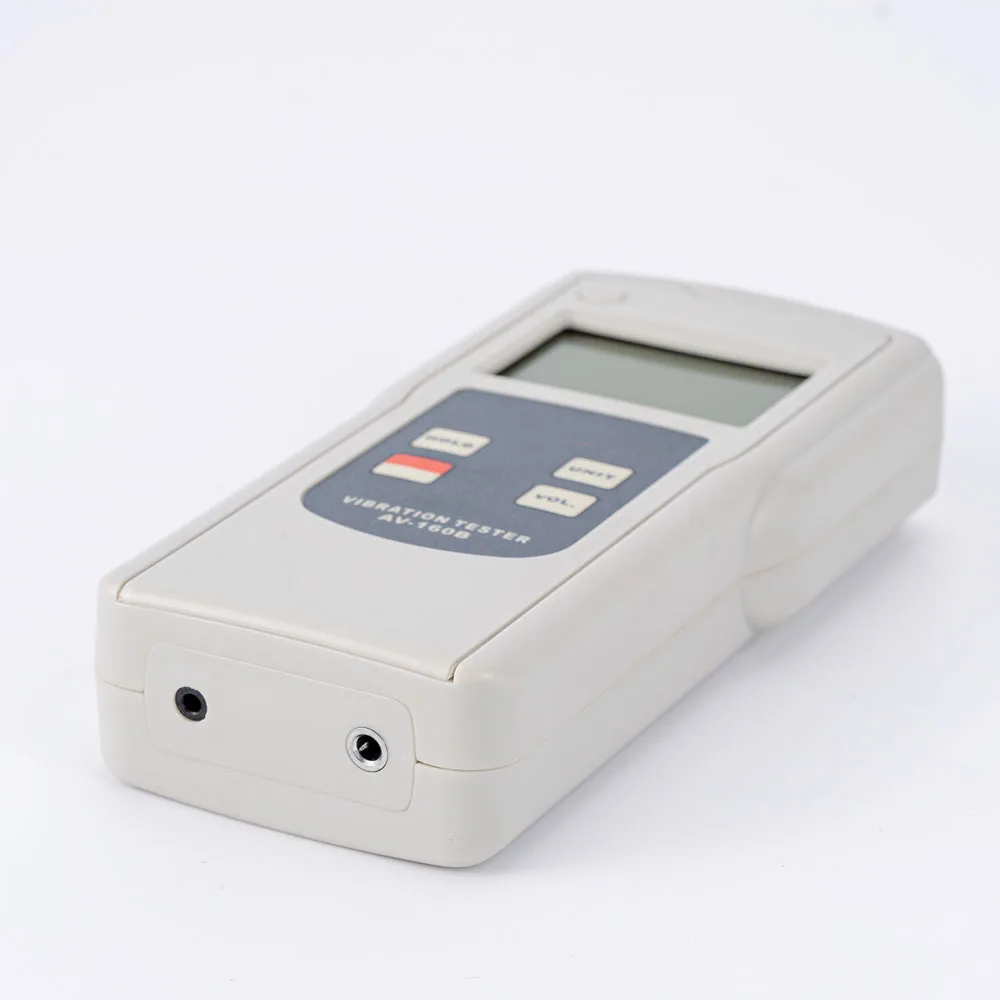

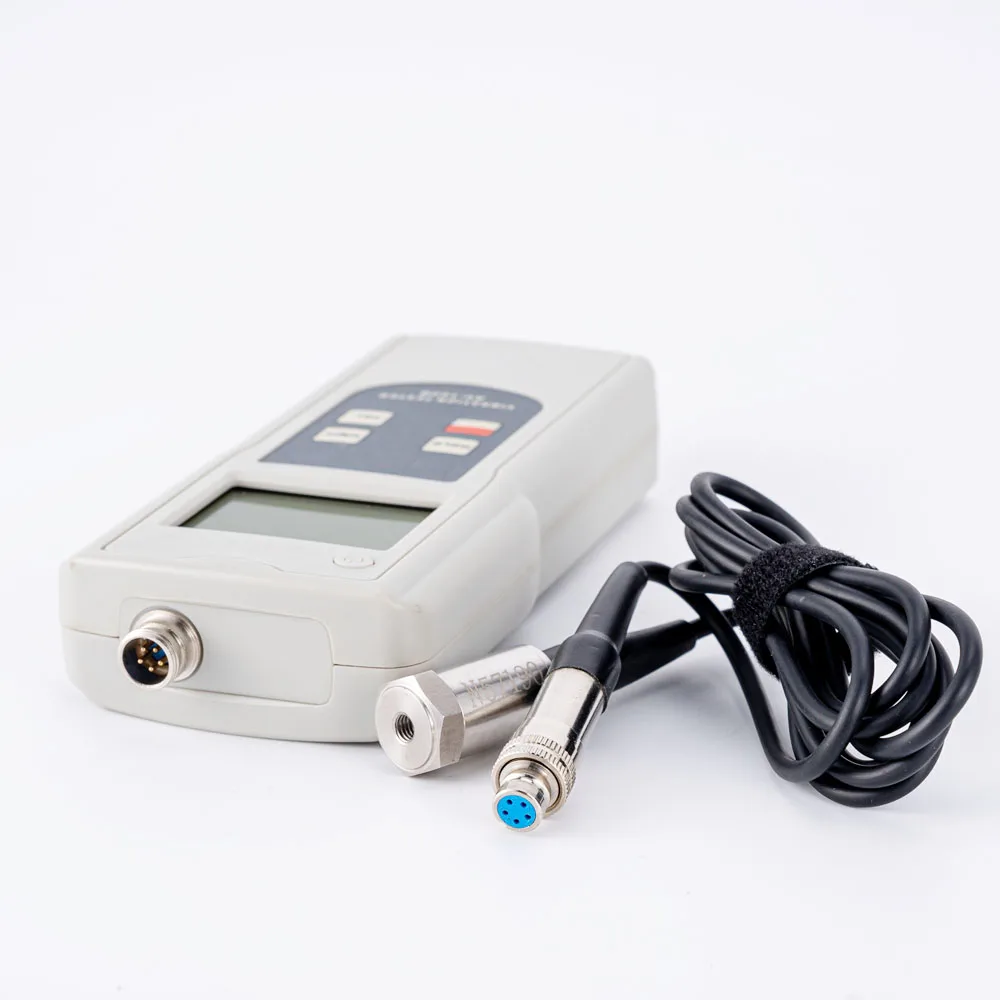

Vibration Tester AV-160B 10-10KHz Mechanical Motor Vibration Meter displays displacement, velocity and acceleration
