| Weight | 1.5 kg |
|---|---|
| Dimensions | 18 × 12 × 13 cm |
| Hign-concerned Chemical | None |
| is_customized | Yes |
| Model Number | SRT-6100 |
| Brand Name | SOZZDA |
| Origin | Mainland China |
| Certification | CE |
| Standards | GB/T6062, ISO4287, DIN4768, JIS B, ANSI46.1 |
| Display | LCD |
| Parameters | Ra Rz |
| Range | Ra:0.05um~10.00um Rz:0.1um~50.0um |
| Accuracy | <<±15% |
| Fluctuation of Display Value | <<10% |
| Resolution | 0.001/0.01/0.1 |
| Radius of Probe Pin | 10um |
| Material of Probe Pin | Diamond |
| Measurement Force of Probe | 16mN(1.6gf) |
| Vertical Radius of Guiding Head | 48 mm |
| Maximum Driving Stroke | 12.5mm/0.5inch |
| Cutoff length(l) | 0.25mm, 0.8mm, 2.5mm |
| Evaluation Length | 1L~2L Optional |
| Power Supply | 4×1.5V AA(UM-3)Battery |
| Dimensions | 128mmx80mmx30mm |
| Weight | 280g |
Instock

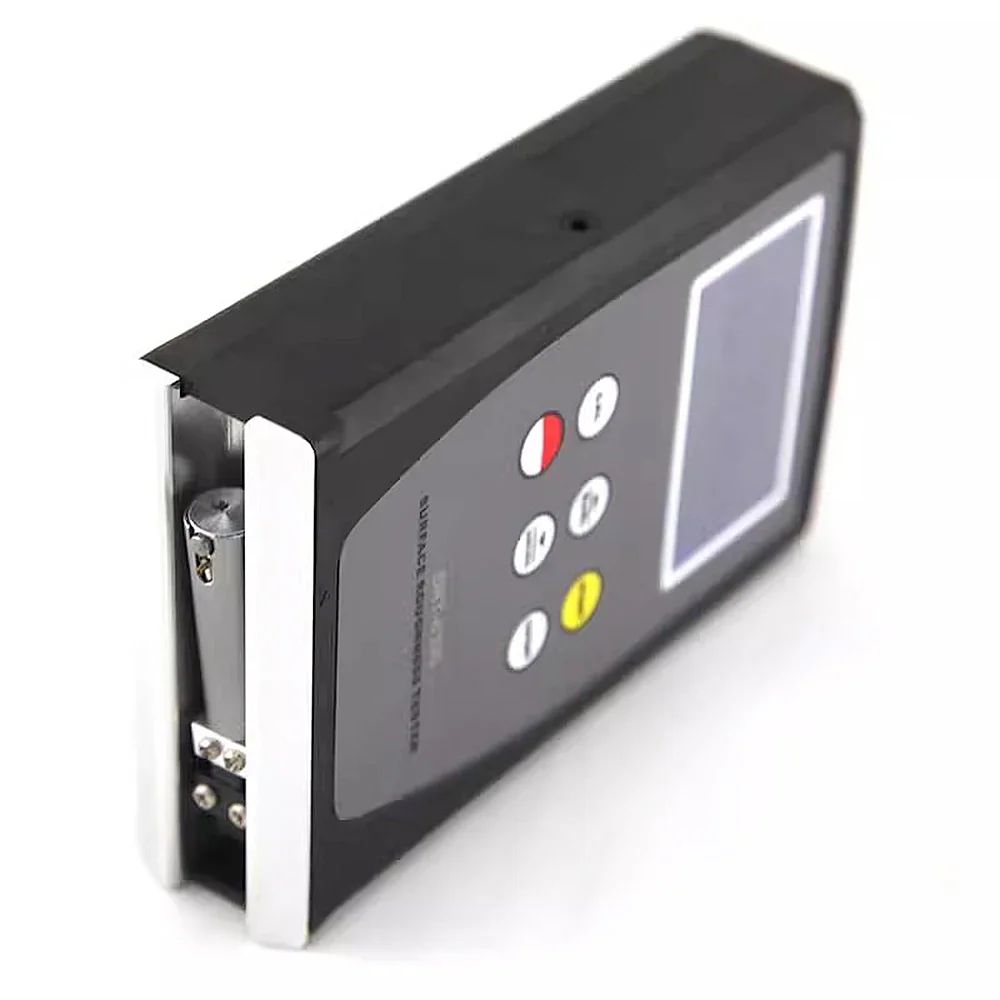

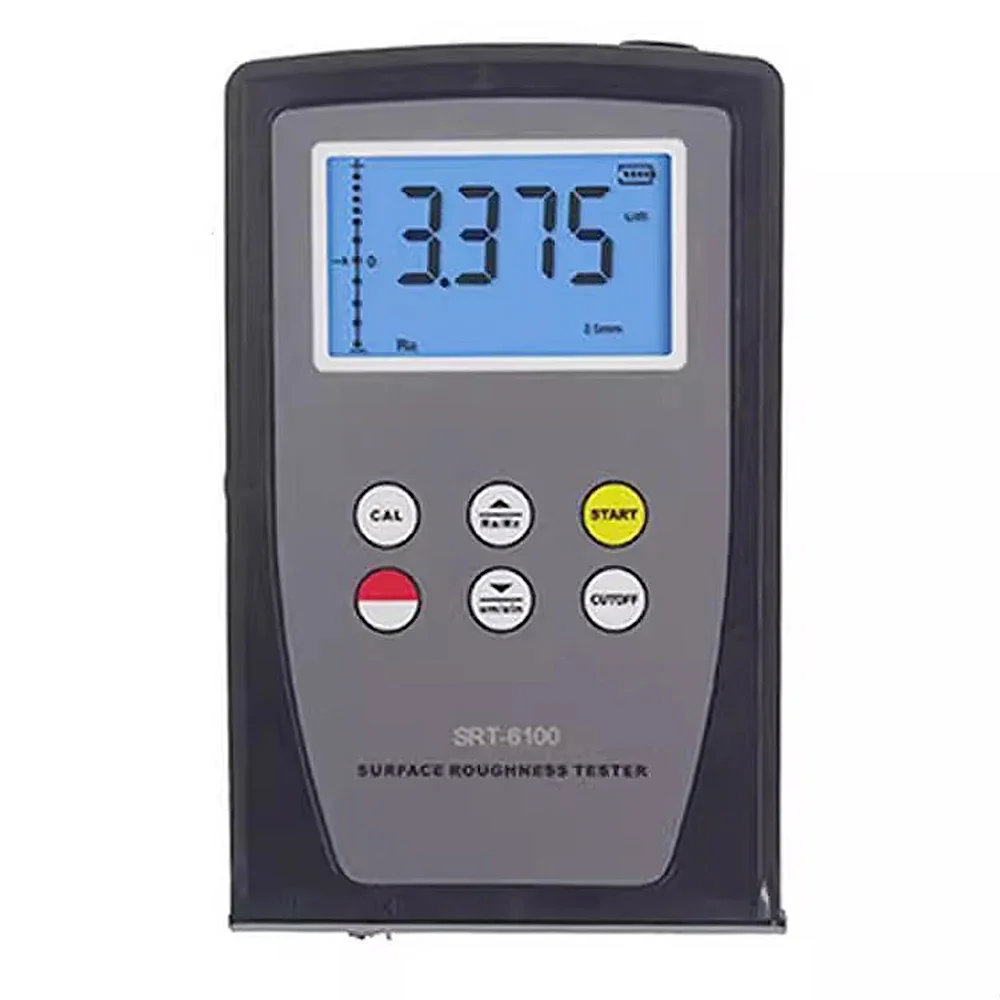

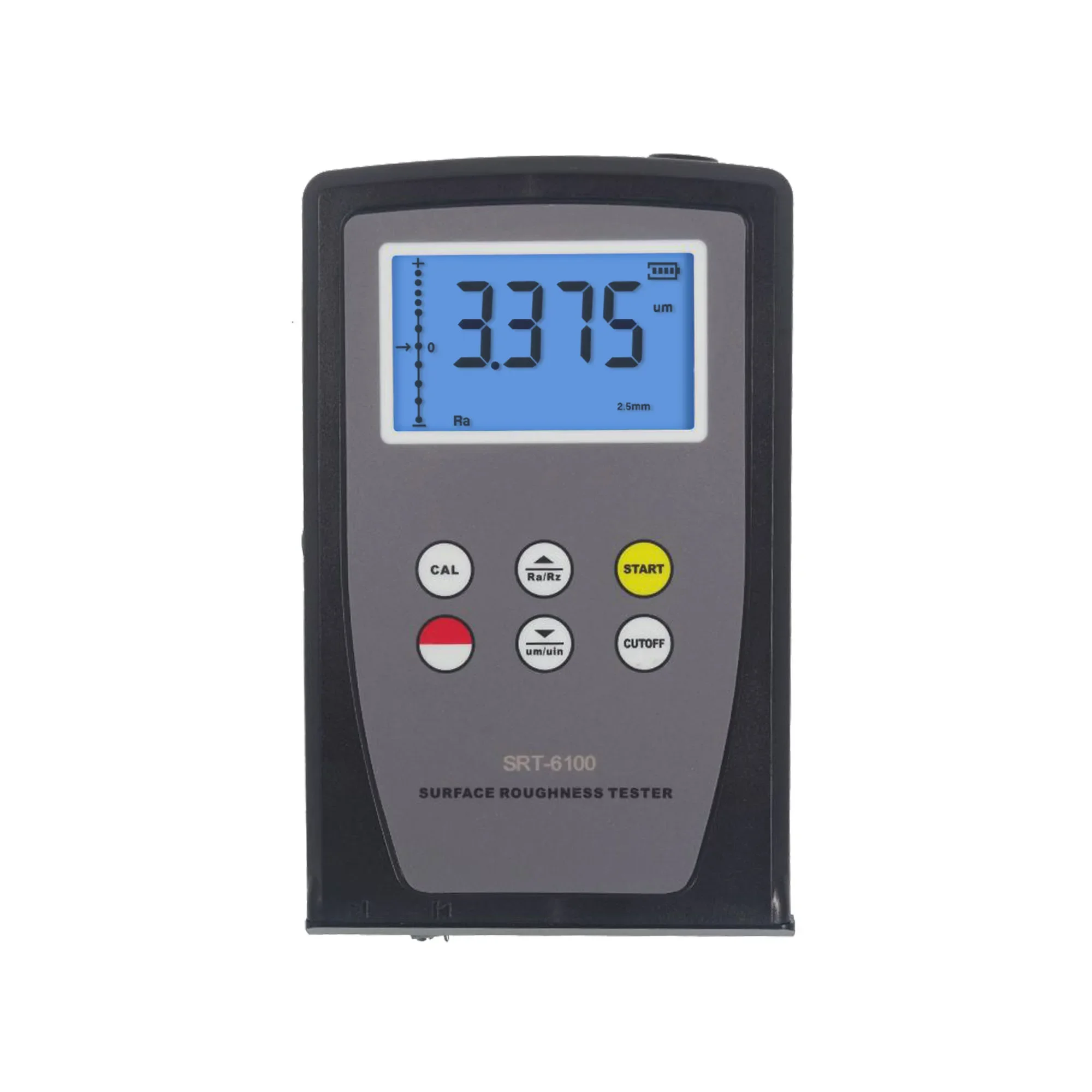

Digital Surface Roughness Tester SRT-6100 0.001µm Roughness Tester for Metalworking Parts Ra 0.05µm~10.00µm Rz 0.1µm~50.0µm
