| Weight | 1.5 kg |
|---|---|
| Dimensions | 20 × 13 × 10 cm |
| Hign-concerned Chemical | None |
| is_customized | Yes |
| Model Number | AR-132C |
| Brand Name | SOZZDA |
| Origin | Mainland China |
| Certification | CE |
| Measuring Range | Ra 0.05-10.00um/1.000-400.0uinch, Rz 0.020-100.0um/0.780-4000uinch |
| Accuracy | ±15% |
| Fluctuation of display value | 10% |
| Resolution | 0.001um, 0.01um, 0.1um |
| Radius | 10um |
| Material | Diamond |
| Measurement Force | 16mN(1.6gf) |
| Angle | 90 |
| Vertical Radius | 48mm |
| Maximum Driving Stroke | 12.5mm/0.5inch |
| Cutoff Length | 0.25mm, 0.8mm, 2.5mm |
| Measuring | Sampling Length: 0.25mm Vt: 0.135mm/s, Sampling Length: 0.8mm Vt: 0.5mm/s, Sampling Length: 2.5mm Vt: 1mm/s |
| Returning | Vt=1mm/s |
| Evaluation length | 1~2L cut off optional (0.25mm sampling length =1L) |

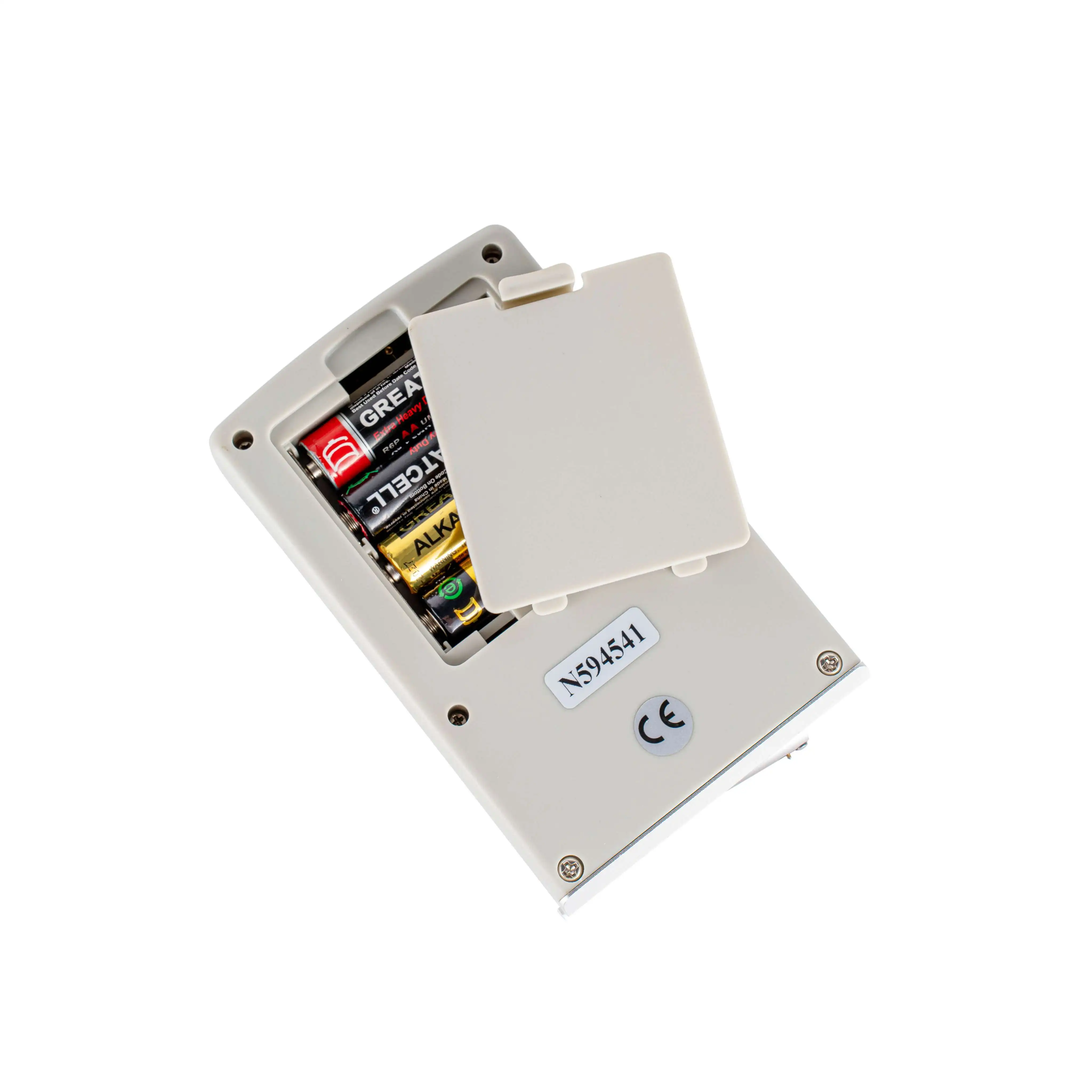

| Power Supply | 4×1.5vAA Um-3 Battery |
| Size | 140x75x33 mm |
| Weight | 280 g (Not including batteries) |
Instock

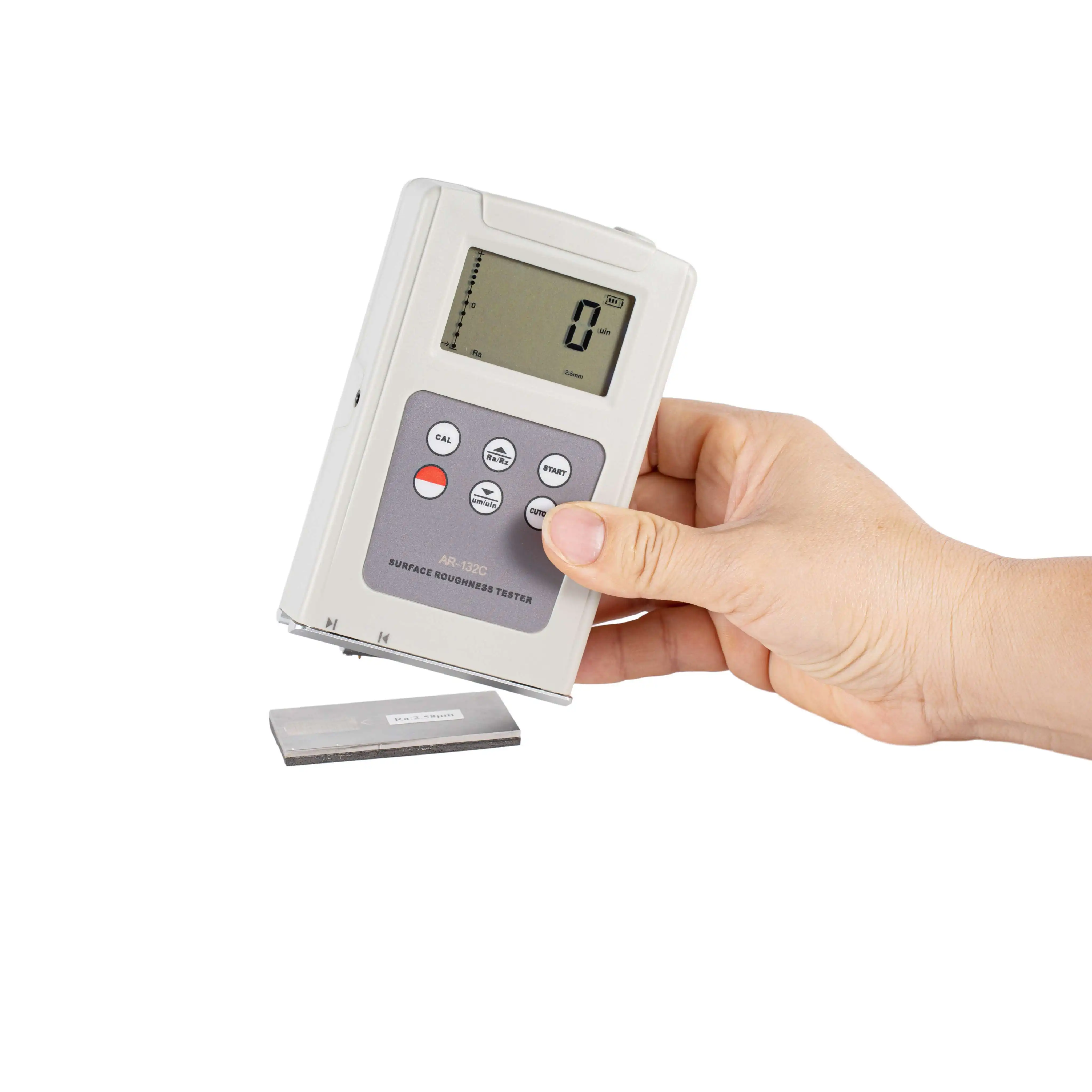

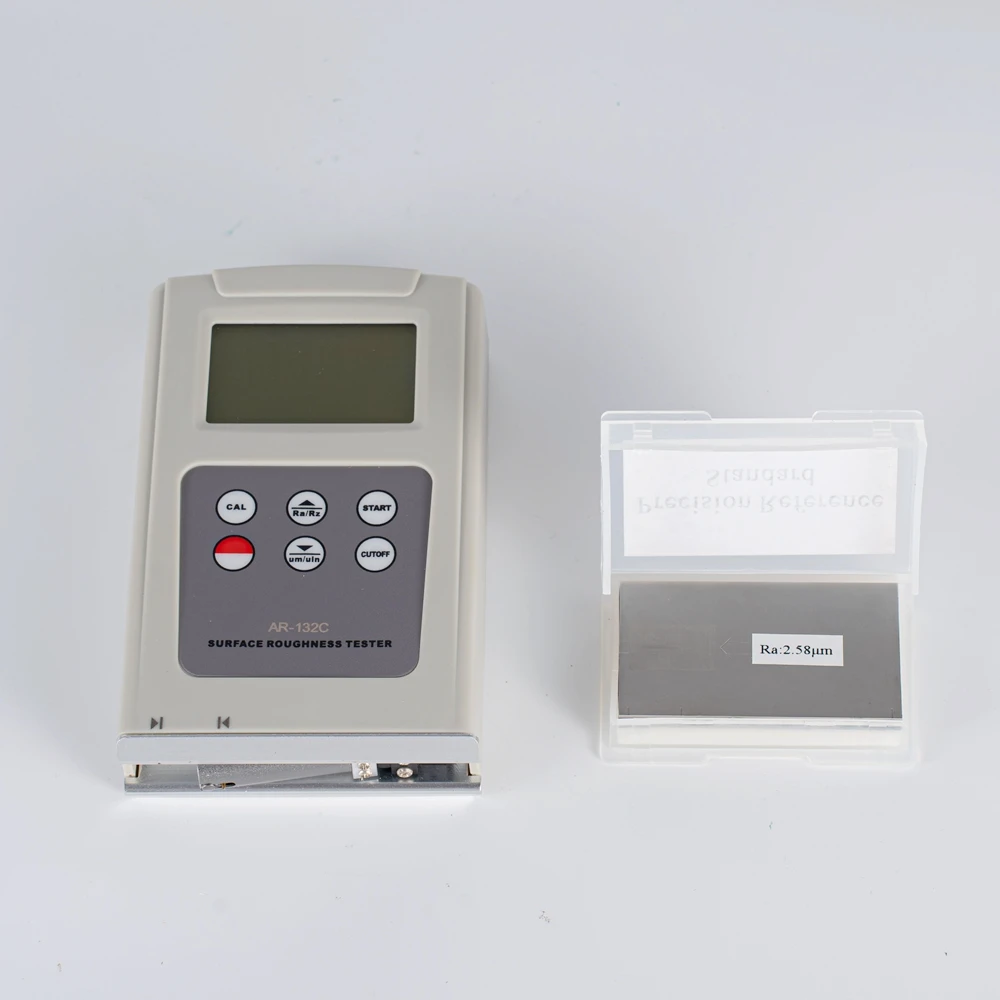

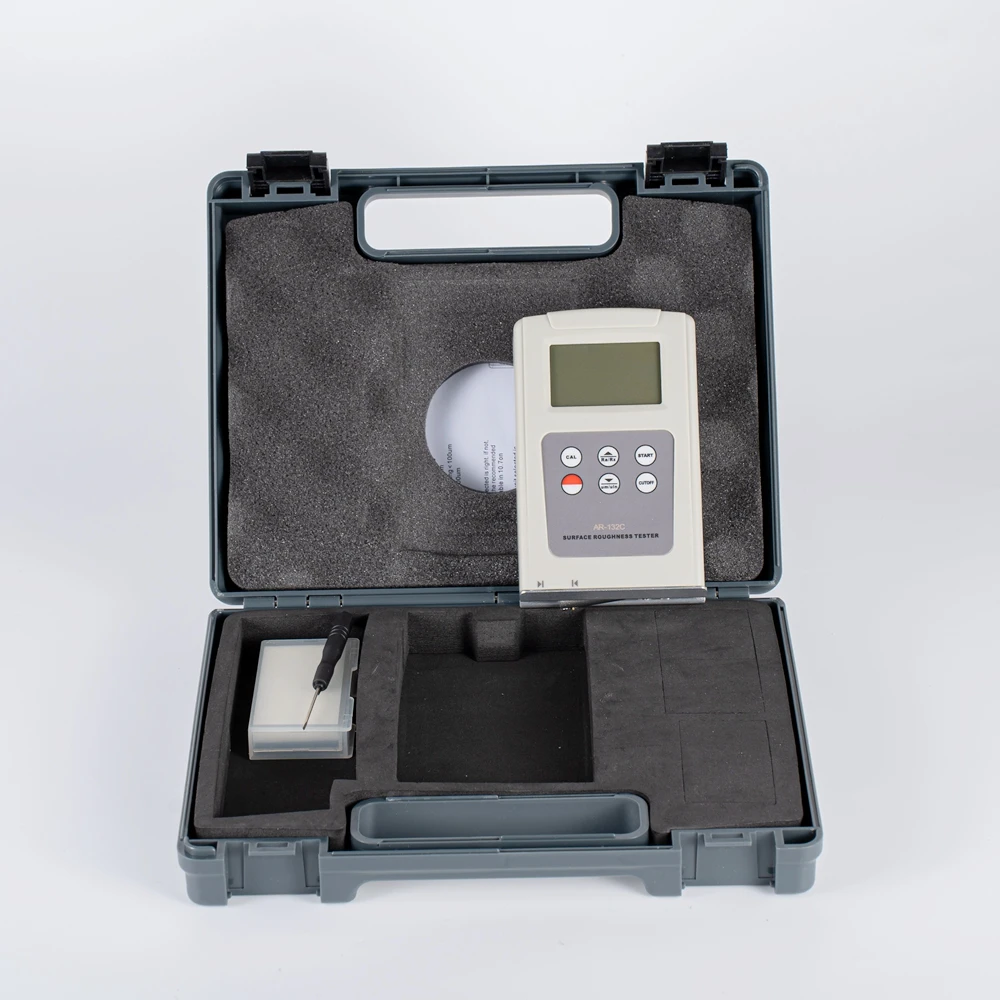

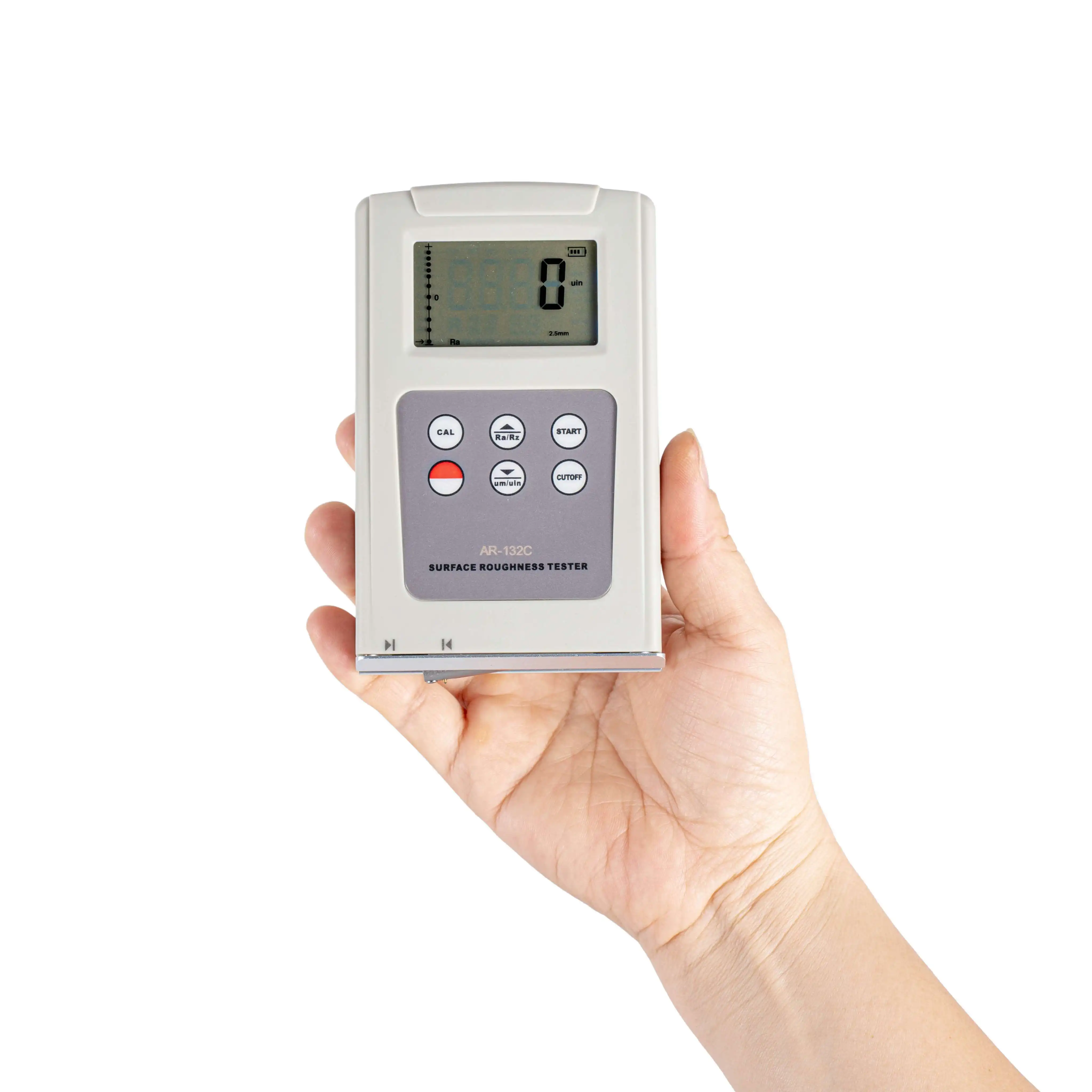

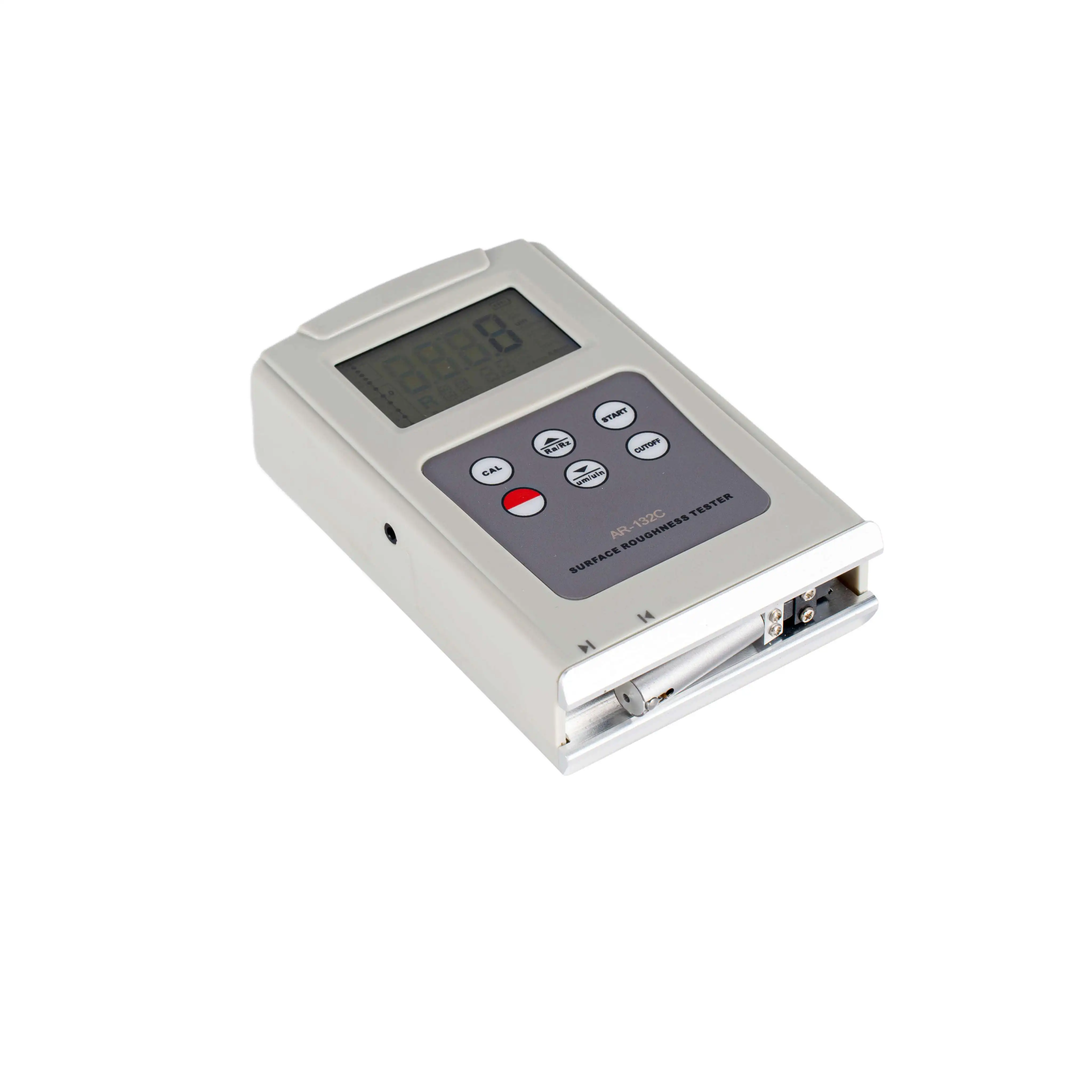

AR-132C Metal Surface Roughness Measuring Instrument High Accuracy 0.001μm Digital Surface Roughness Measuring Instrument
