| Weight | 0.2 kg |
|---|---|
| Dimensions | 17 × 7 × 7 cm |
| Hign-concerned Chemical | None |
| Plug Type | None |
| Size | 65 x 39 x 11 mm, 65 x 39 x 11 mm (height from top of Pi pins) |
| Model Number | GPOE-PiHat |
| Brand Name | zhangqing |
| Certification | CE, FCC |
| Origin | Mainland China |
| Item Type | poe Injector |
| Material | PI hat PCB board |
| Power and data source input | RJ 45 female connector on Pi 3 B+ or Pi 4 |
| Input Voltage Range | From 12 to 56 volts |
| Data to powered device | All 4 pairs are active for data at 10/100/1000 |
| Input Current at 48v | 265 ma input delivers 2 amps out |
| Output Voltage Max load (5v10w) | 5v +- 2% at 2 amps 10 watts |
| Isolation | Not isolated |
Instock

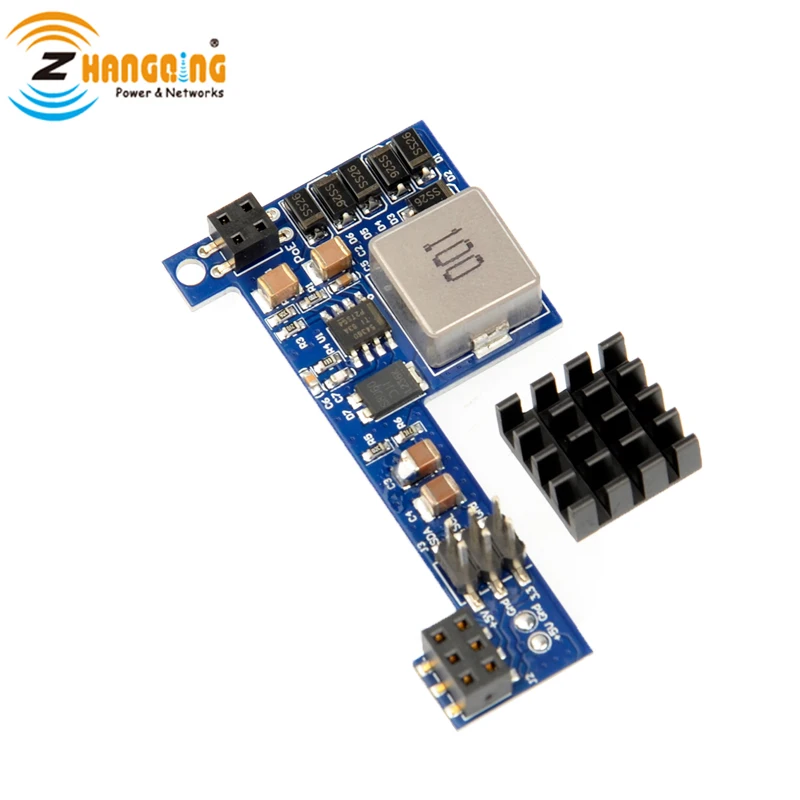

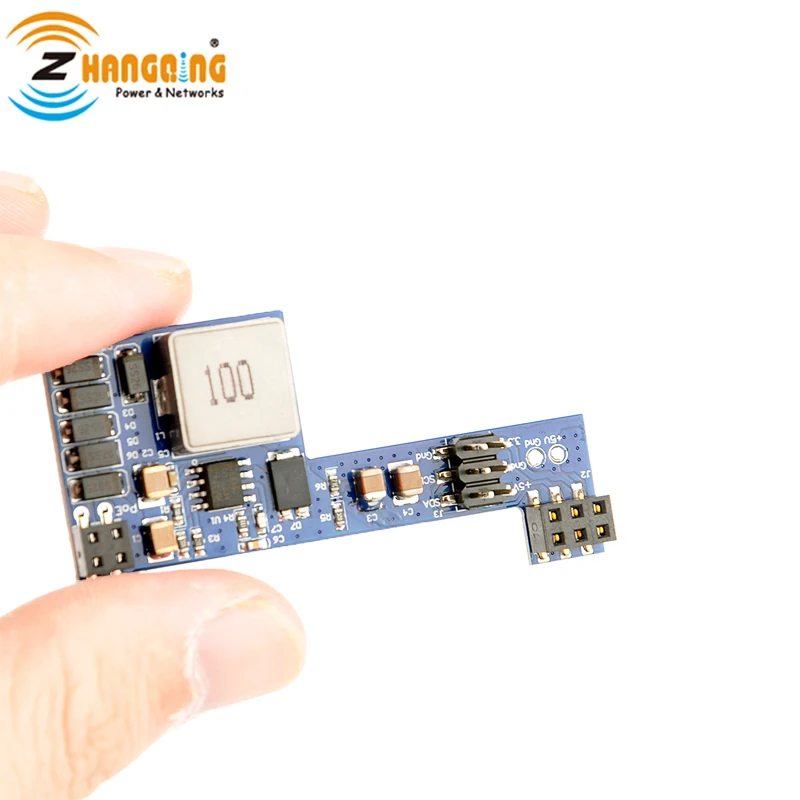

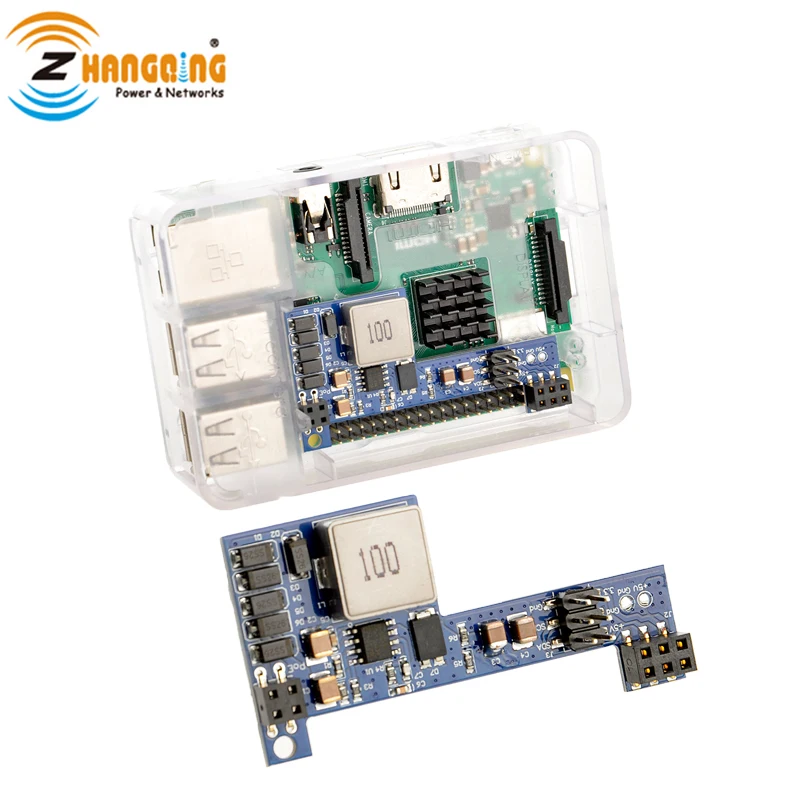

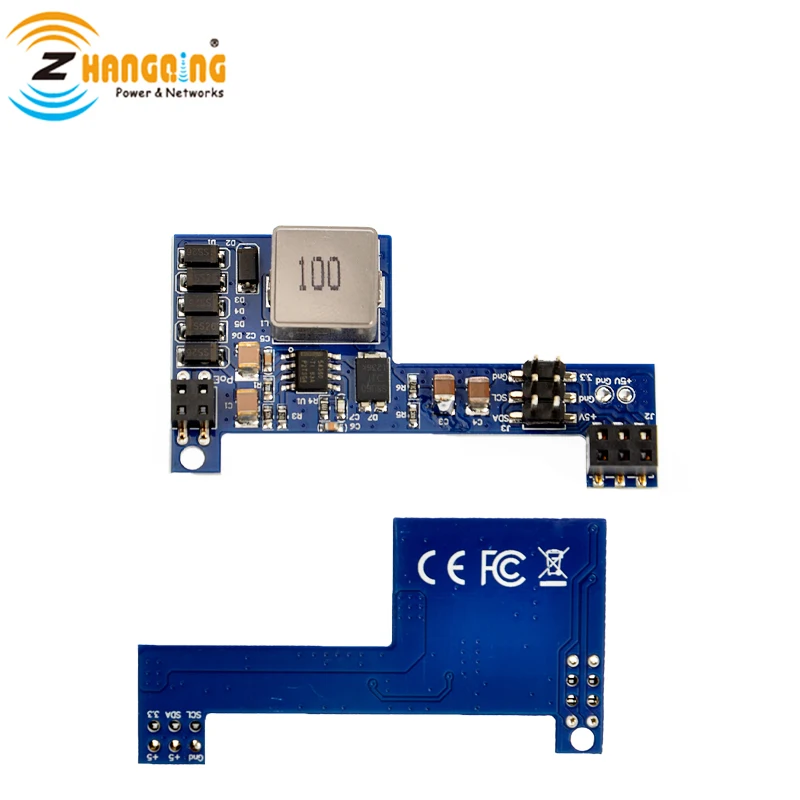

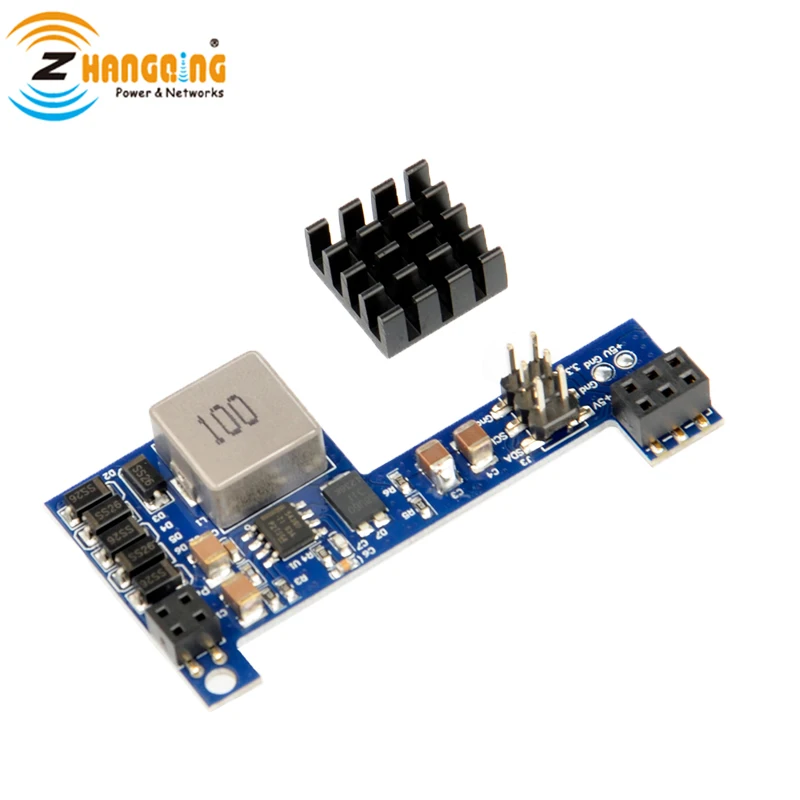

Passive POE-PiHat 10W PoE delivering power to a Raspberry Pi 3B+ or Pi 4, Output 5V PoE Hat board
