| Weight | 0.2 kg |
|---|---|
| Dimensions | 22 × 13 × 6 cm |
| Hign-concerned Chemical | None |
| Operating Mode | AUTO |
| Measuring Capacitance Range | 1pF-20mF(Dvalue, ESR) |
| Operating Temperature | 0 – 50 ℃ |
| Measuring Resistance Range | 10mΩ-10MΩ |
| Certification | CE, RoHS |
| DIY Supplies | ELECTRICAL |
| Model Number | SK-DB1 |
| Measuring Inductance Range | 1uH-60H(Q value, EsR) |
| Origin | Mainland China |
| Brand Name | cretrust |
| Dimensions | 146*30*18mm |
| Display Type | Digital display |
| Frequency | 100Hz-10KHz adjustable |
| Adjustable highest accuracy | 0.5% |
| Diode measurement | Yes |

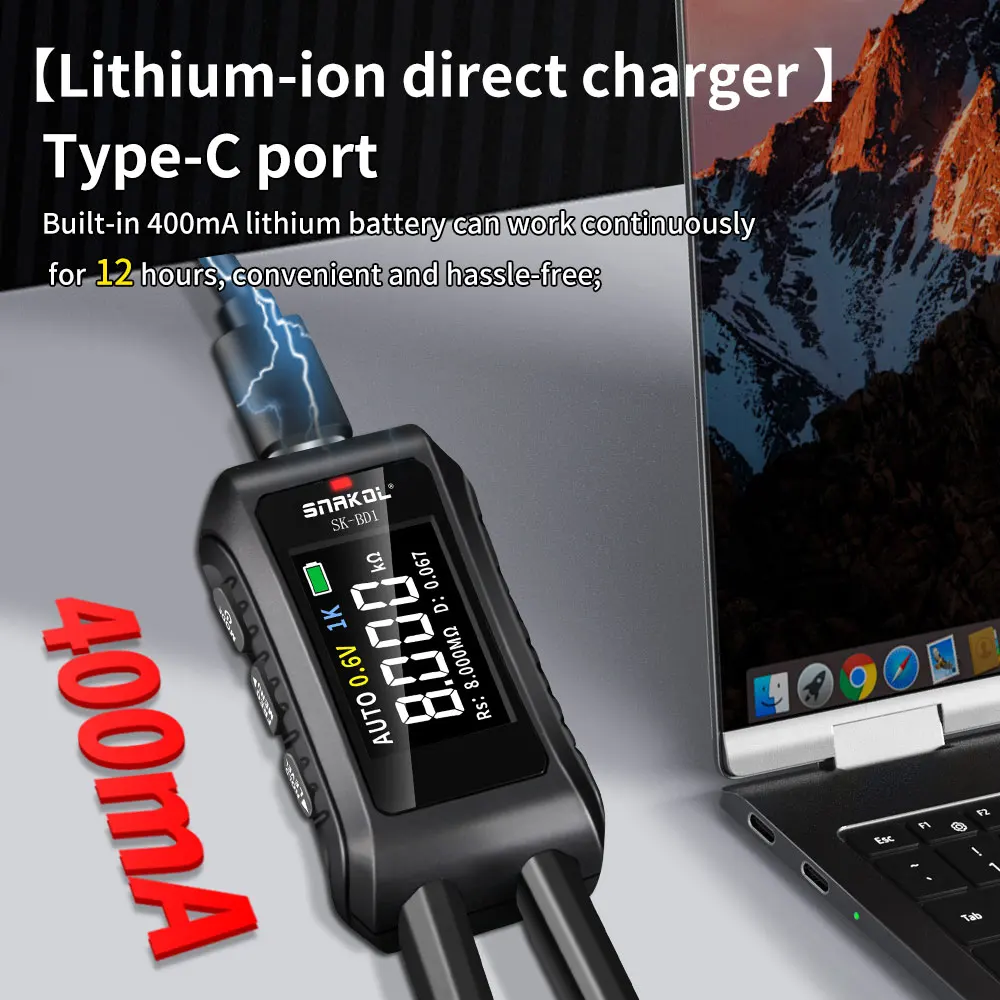

| power supply | rechargeable 400mA lithium battery |
| 0.3V, 0.6Vrms RMS test level | Yes |

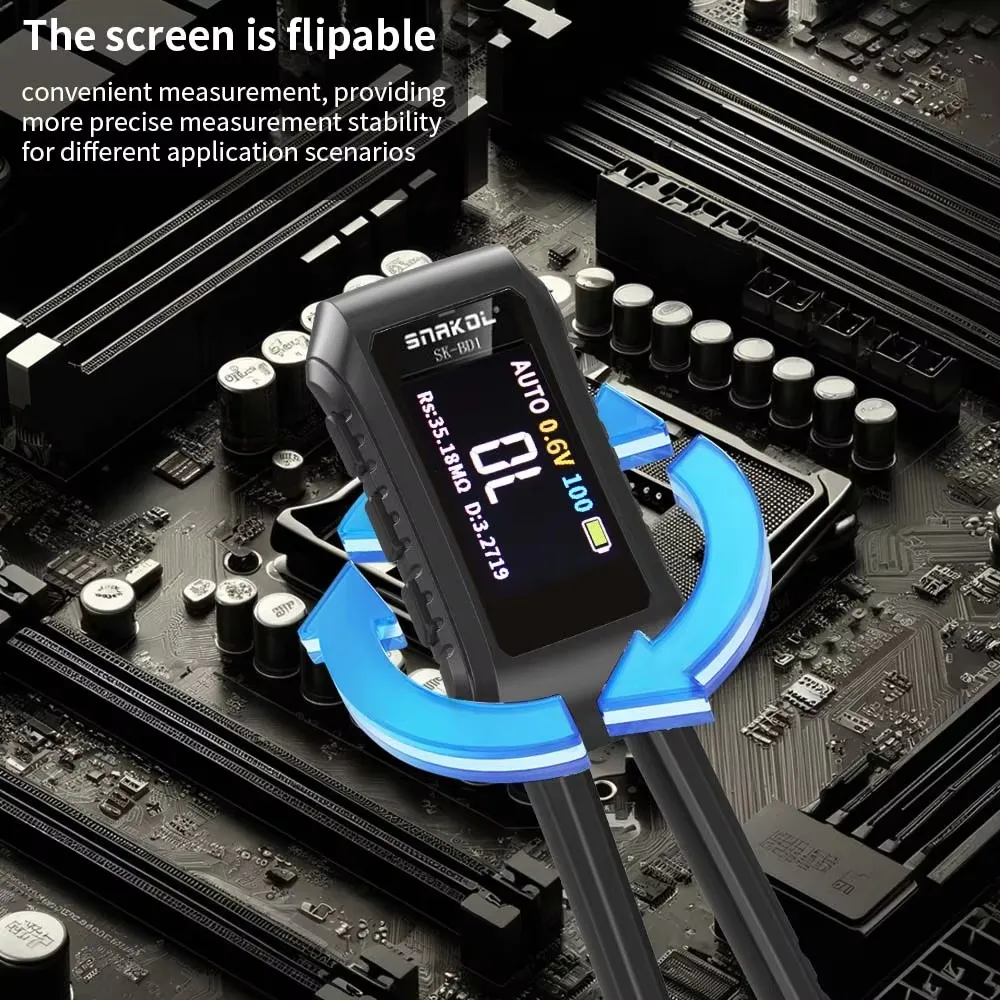

| pisplay screen | OLED |
| Sampling Rate | 1 Times/second |
| Auto Power off | Yes |

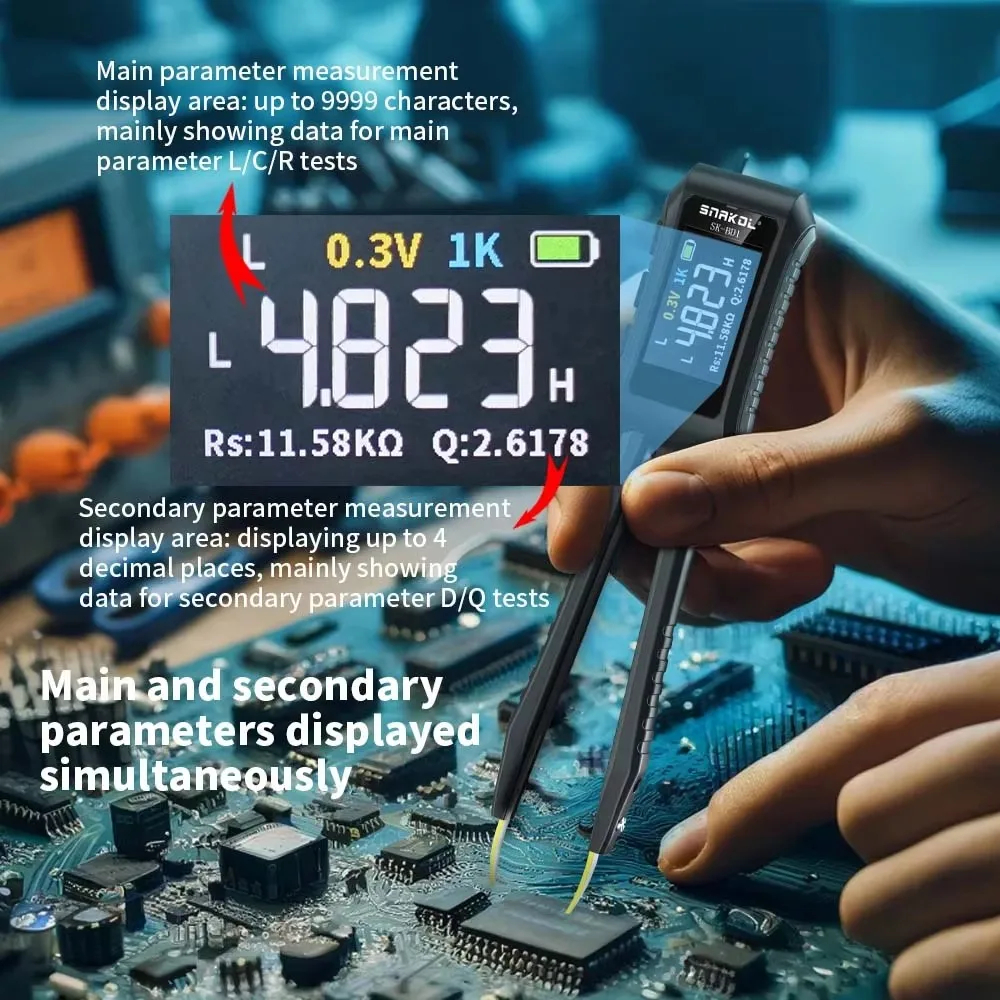

| Parameters | L C R D Q RS |
Instock

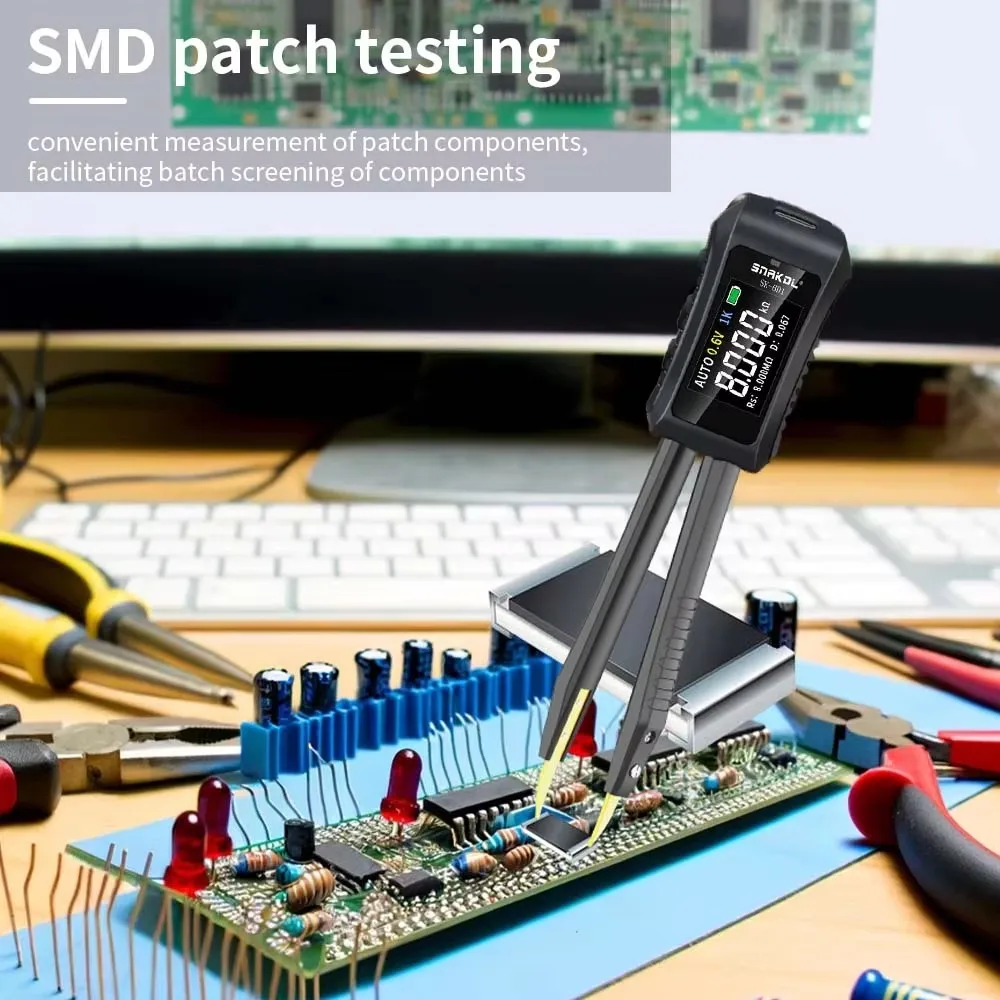

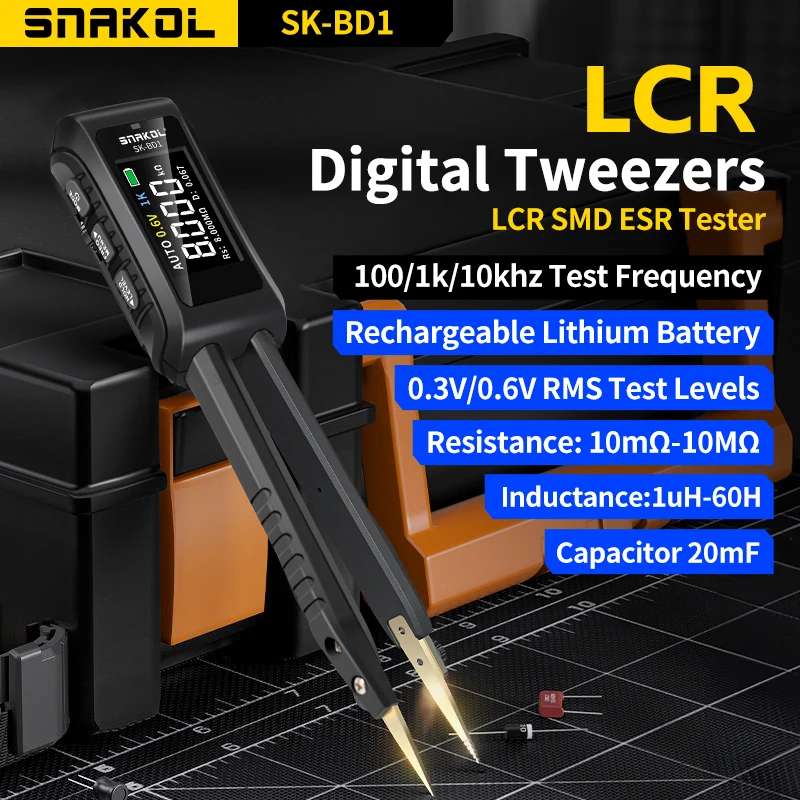

Mini Smart Digital Tweezer LCR SMD ESR Tester Resistance Capacitance Inductance Continuity Diode Electronic component Test Meter
