| Weight | 1 kg |
|---|---|
| Dimensions | 26 × 15 × 12 cm |
| Hign-concerned Chemical | None |
| is_customized | None |
| Model Number | AR-132C |
| Brand Name | SOZZDA |
| Origin | Mainland China |
| Measuring Range | Rq:0.05-10.00um, Rt:0.0.020-100.0um |
| Accuracy | ±15% |
| Fluctuation of display value | 10% |
| Resolution | 0.001um, 0.01um, 0.1um |
| Radius | 10um |
| Measurement Force | 16mN(1.6gf) |
| Angle | 90° |
| Vertical Radius | 48mm |
| Maximum Driving Stroke | 17.5mm/0.7inch |
| Cutoff Length | 0.25mm, 0.8mm, 2.5mm |
| Measuring | Sampling Length: 0.25mm Vt: 0.135mm/s |
| Returning | Vt=1mm/s |
| Evaluation length | 1~2L cut off optional (0.25mm sampling length =1L) |
| Data Memorize | 7 Groups |
| Size | 140x75x33 mm |
| Weight | 280 g (Not including batteries) |
| Power Supply | 4×1.5vAA Um-3 Battery |
Instock

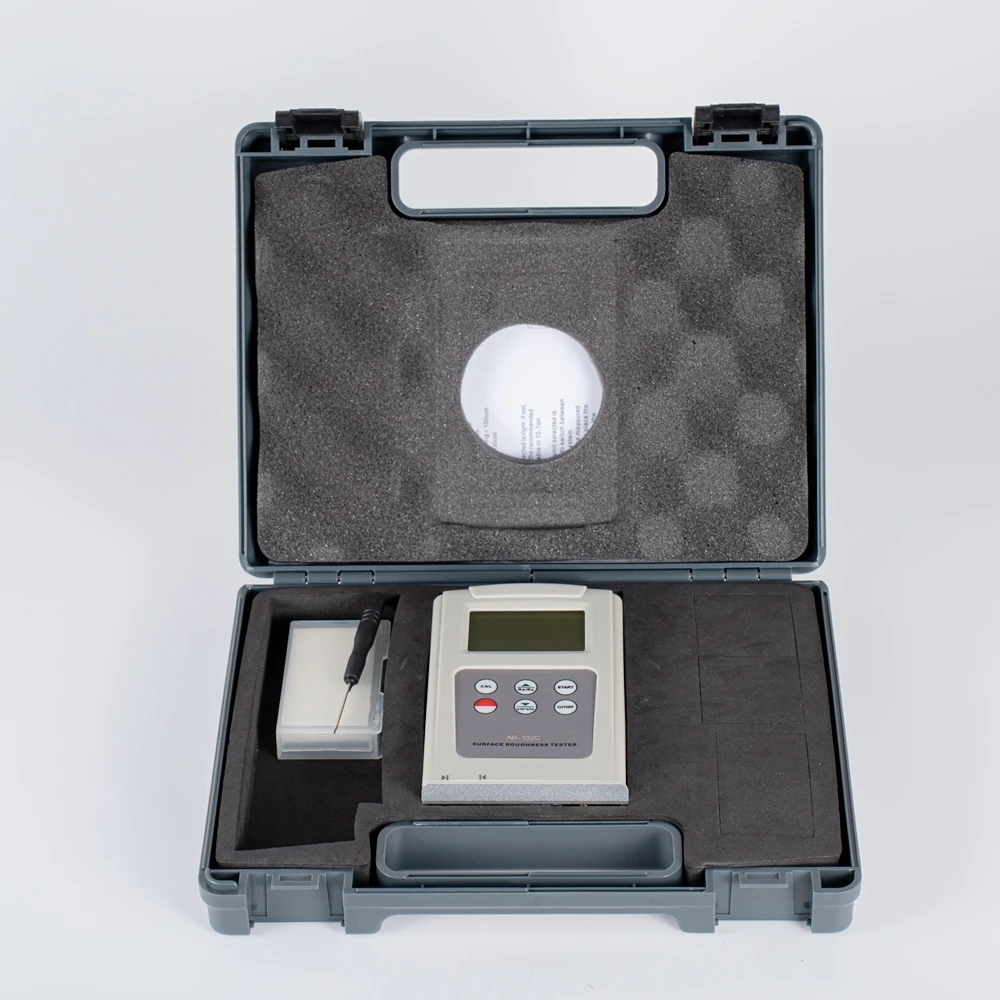

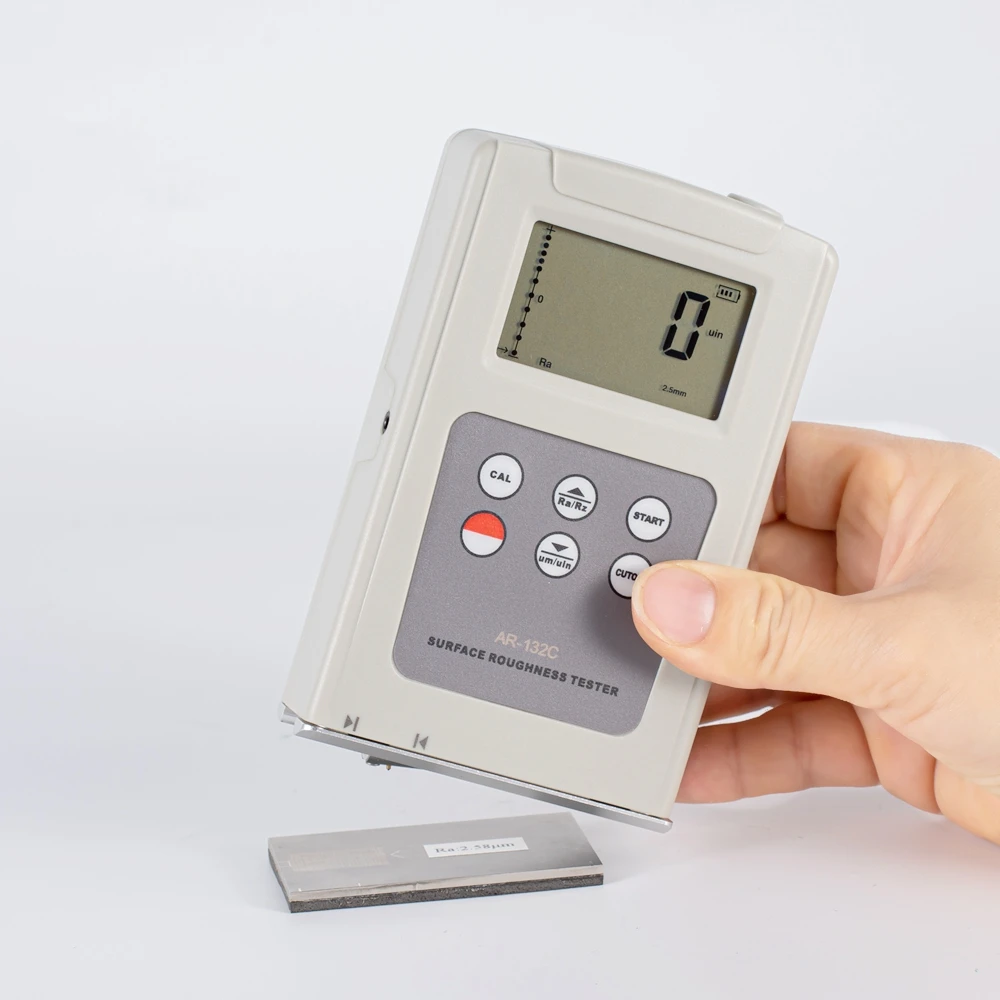

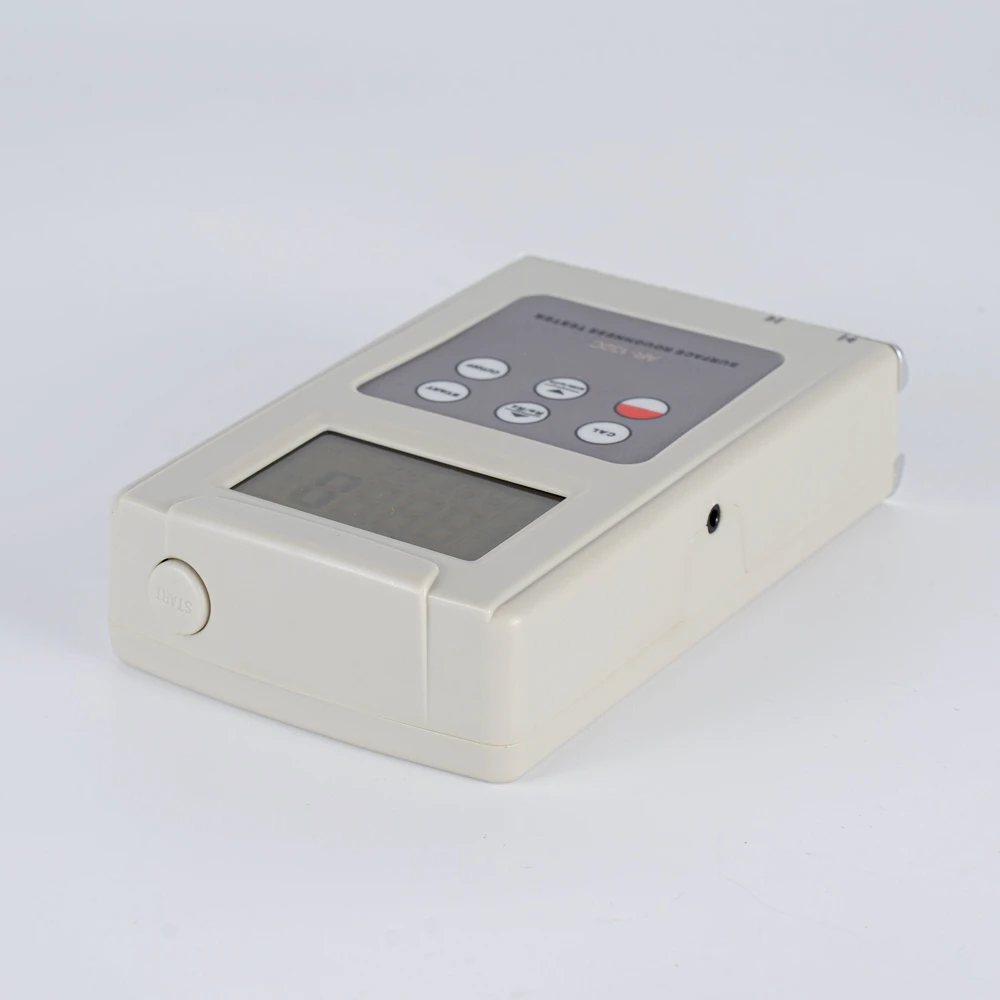

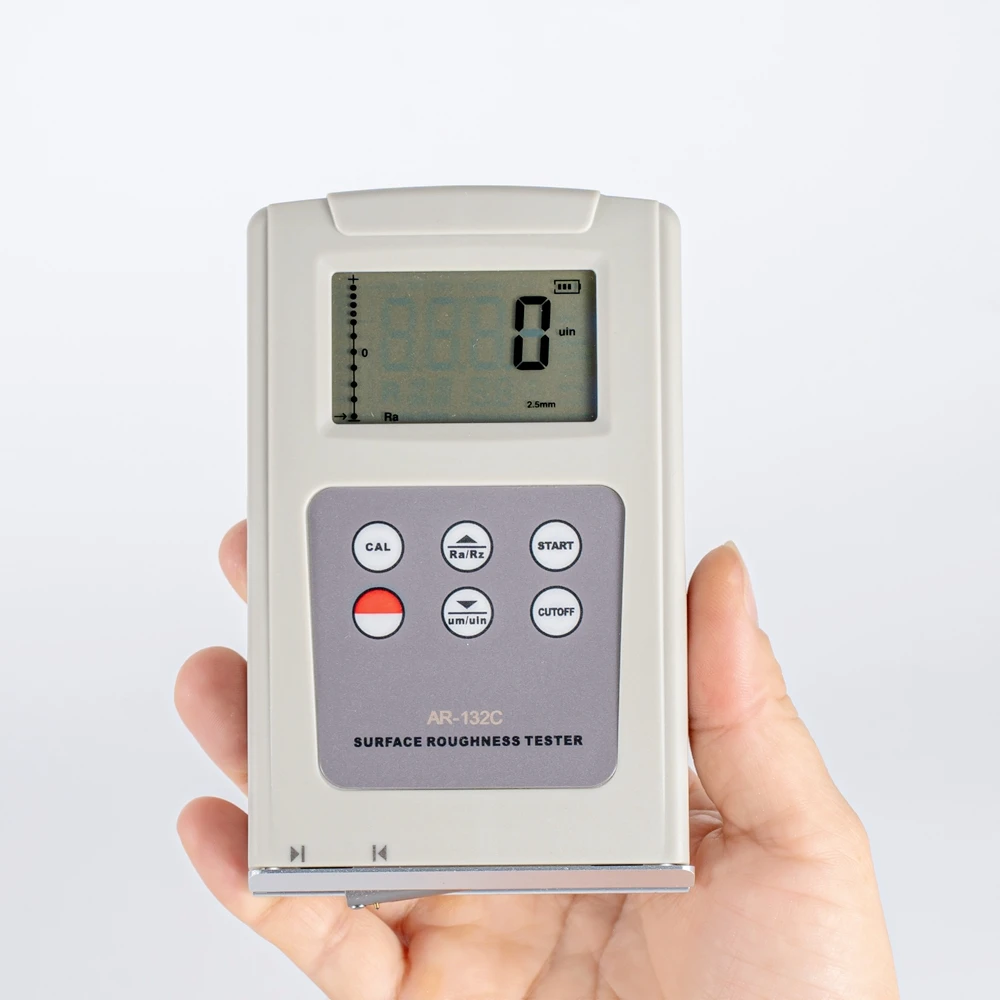

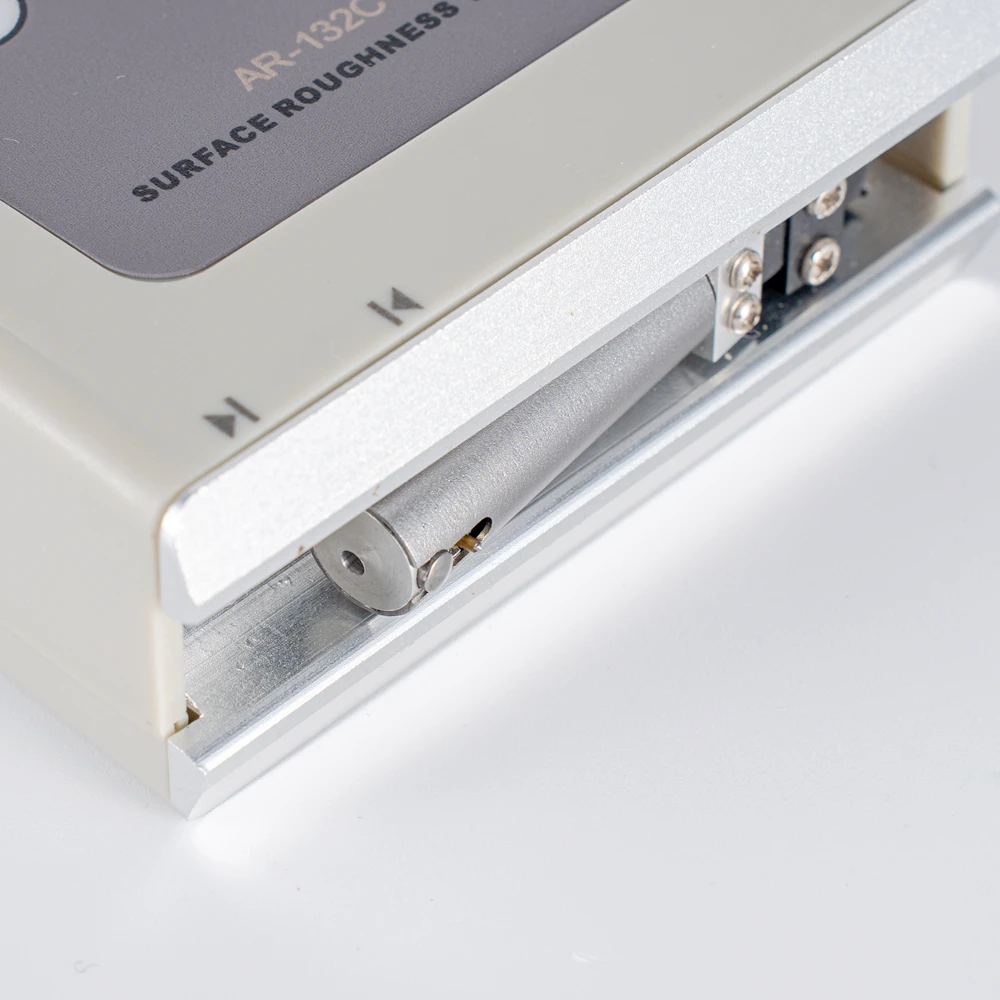

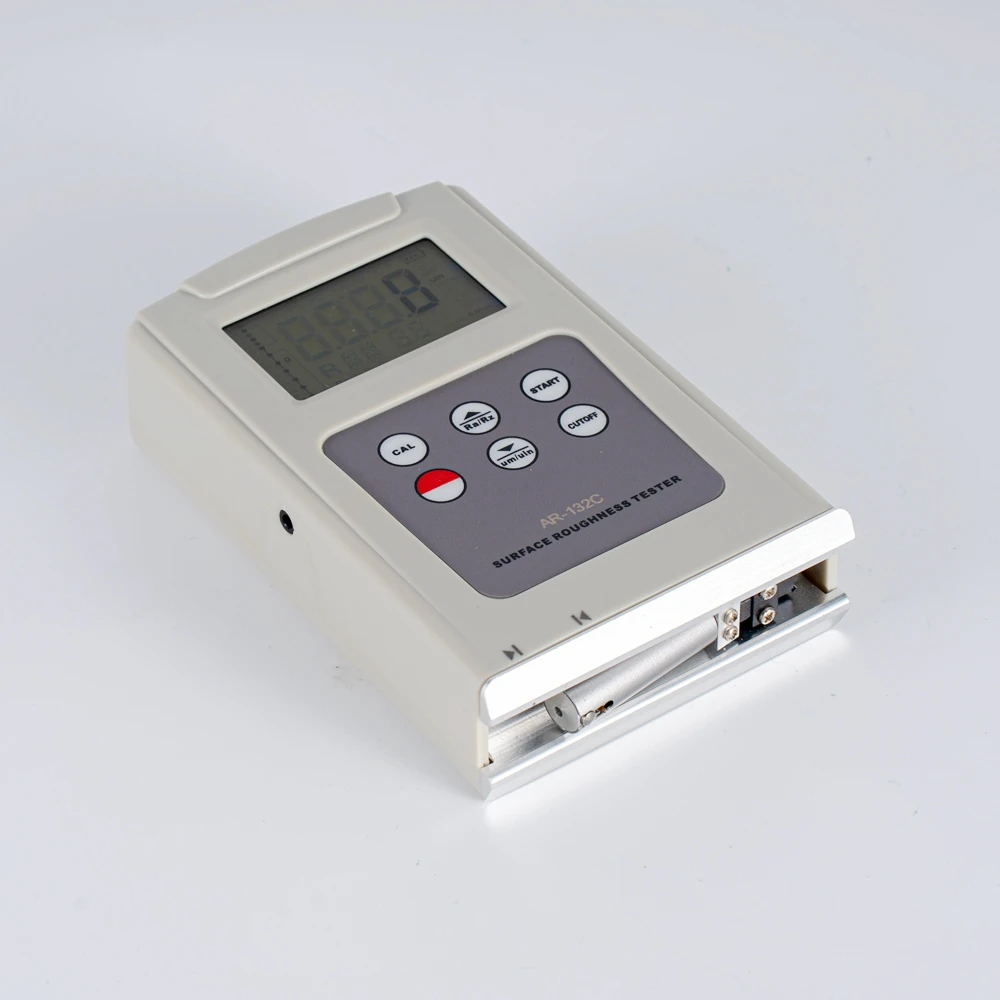

Integrated AR-132C High Precision Surface Roughness Tester Metal Non-Metal Portable Handheld Finish Tester LCD
