Crypto paymentInstock
| Weight | 0.203 kg |
|---|---|
| Dimensions | 17 × 10 × 3 cm |
| Hign-concerned Chemical | None |
| Plug Type | None |
| Size | 148*98*34mm |
| Model Number | POE014-FS/POE014G-FS |
| Certification | CE, FCC, RoHS |
| Origin | Mainland China |
| Item Type | POE Spliter |
| Network Protocol | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Installation | Wall Mounted |

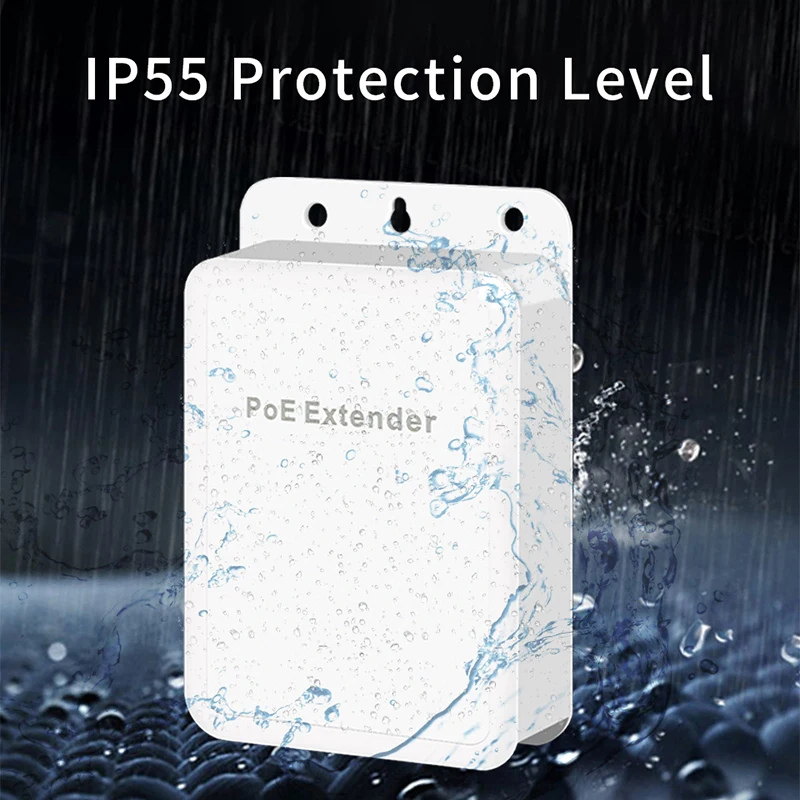

| Keypoint | Waterproof |
| Transmission rate | 10/100/1000Mbps |
| POE Protocol | IEEE 802.3at / 802.3af |
| Port | 3/4*10/100/1000Mbps RJ45 POE Out, 1*10/100/1000Mbps RJ45 POE in |
| POE in | 1/2+, 3/6-, 4/5+, 7/8- |
| POE out | 1/2+, 3/6- |
| Power for POE013-FS/POE013G-FS | 30W, 24W Output, 8W Per port |
| Transfer Mode | Store and forward |

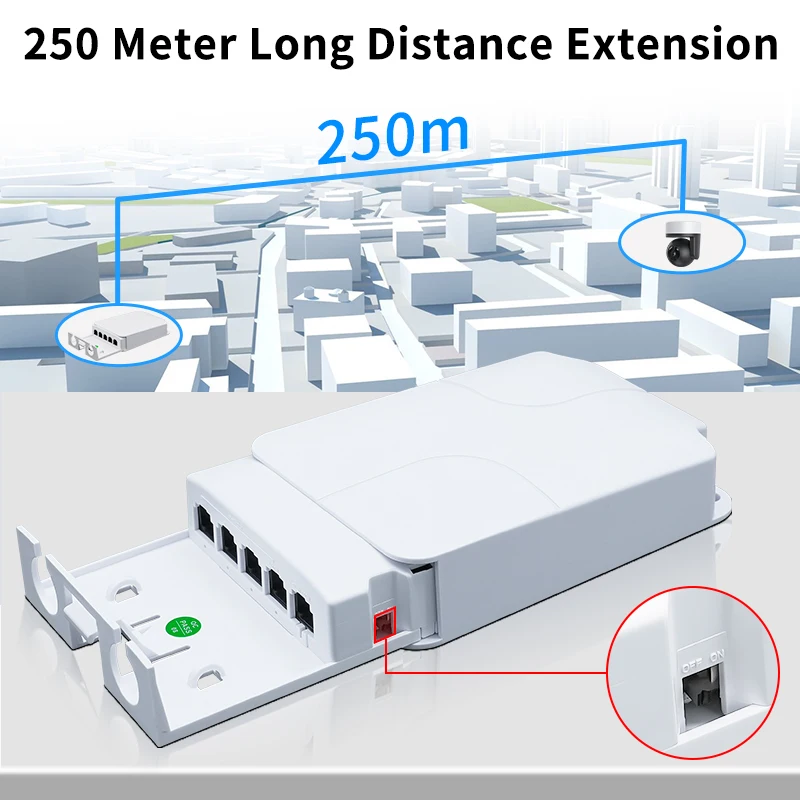

| Transmission | 100 meters for 1000Mbps, 250 meters for 100Mbps |
| MAC Address | 1K/2K |
| Bandwidth | 1Gbps/1.6Gbps/10Gbps |
| Forwarding Rate | 10BASE-T:14880PPS/port, 100BASE-tx:148800pps/port, 1000BASE-tx:1488000pps/port |
| Working Temperature | -10℃–55℃ |
| Power Input of POE013-FS/POE013G-FS | DC44-57V, 30W |
| Power Output of POE013-FS/POE013G-FS | DC44-57V, 24W |
| Communication Mode | IEEE802.3X Full-Duplex & Backpressure Half-Duplex |
| Port Function | Power priority mechanism, fast and forwarding, MAC automatic learning and aging |
| Warranty | 2 Years Warranty |
| Power Input of POE014-FS/POE014G-FS | DC44-57V, 90W |
| Power Output of POE014-FS/POE014G-FS | DC44-57V, 85W |
| Power for POE014-FS/POE014G-FS | Max 90W, Max output of Port 1 is 60W, Port 2-4 Max 30W |
Instock

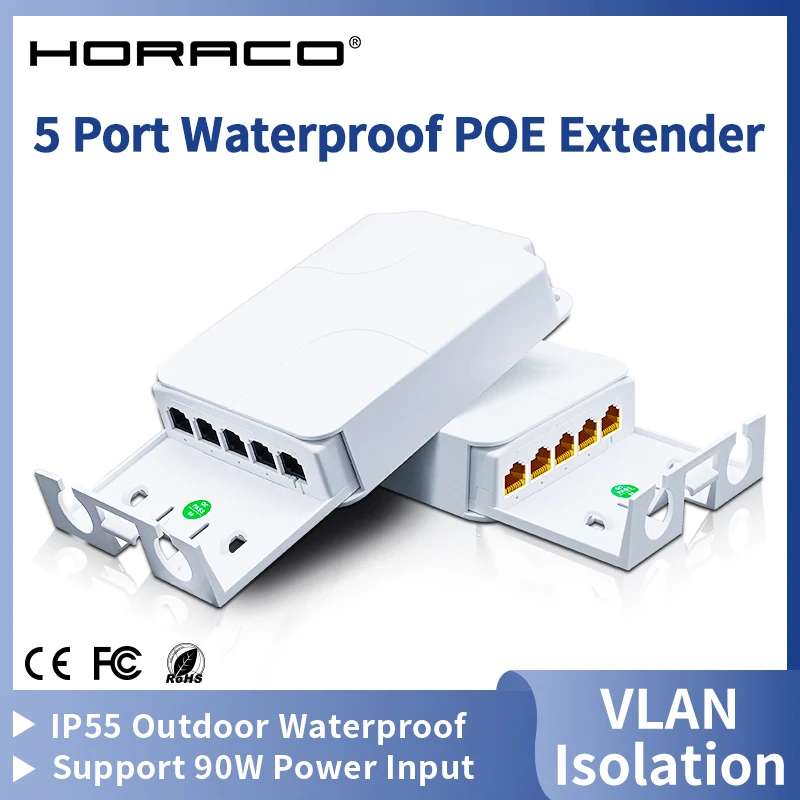

HORACO 5 Port Waterproof POE Extender 4 Port Repeater 100/1000Mbps Outdoor Network IP55 VLAN 44-57V for POE Camera Wierless AP
