| Weight | 0.65 kg |
|---|---|
| Dimensions | 23 × 16 × 5 cm |
| Hign-concerned Chemical | None |
| Model Number | ANT 8S-22S |
| Accessory Type | Battery Accessories |
| Brand Name | JNFN |
| Origin | Mainland China |
| Certification | CE |
| typology | LifePo4 Lithium Battery Protection Board |
| application scenario | Power Battery Management System, Energy Storage Battery Management System |
| functionality | Anti-overcharge protection, anti-overdischarge protection, overcurrent protection, short-circuit protection |
| Charge and Discharge Ports | Common Port BMS |
| GPS | According to Customer need |
| CAN | According to Customer need |
| RS485 | According to Customer need |
| Bluetooth Function | Built inside BT, Support for Android / iOS Phone |
| purpose | LIFEPO4 Battery/lithium battery |
| communications function | UART/BT |
| balance line | Yes and Free |
| Areas of application | Power Battery, E-Bike, E-MotorElectric Scooter, so oncycle |
| Battery Management System Type | Smart BMS |
| Applicable Battery Type | 3.2V /3.7V Lifepo4/Li-ion Battery |
| Automatic battery pack recognition | 3S/4S/7S/8S/9S/10S/11S/12S/13S/14S/15S/16S/17S/18S/19S/20S/21S/22S/23S/24S/25S/26S/27S/28S/29S/30S/31S/32S |
| continuous current | 20A/40A/50A/60A/80A/100A/110A/120A/130A/170A/200A/220A/320A/380A/400A/420A |
| input voltage | 12V/24V/36V/48V/52V/60V/72V/96V |
| balance mode | Charge/Static Equalization |
| Android & iOS APP | Support for Android / iOS Phone |
| Charge Voltage | LiFePO4: 3.65V, Li-ion: 3.42V, LTO: 2.8V |
| Over Charge Protection Delay | 1S |
| Over Discharge Protection Delay | 1S |
| Balance Detect Voltage | 3.8V, (Adjustable) |
| Balance Method | Passive Balance, Full State On |
| Short Circuit Protection | YES |
| Temperature Protection Degrees | -40°C~125°C |
| Wiring Method | Same Port |
| Coulomb Counter | YES |
Instock

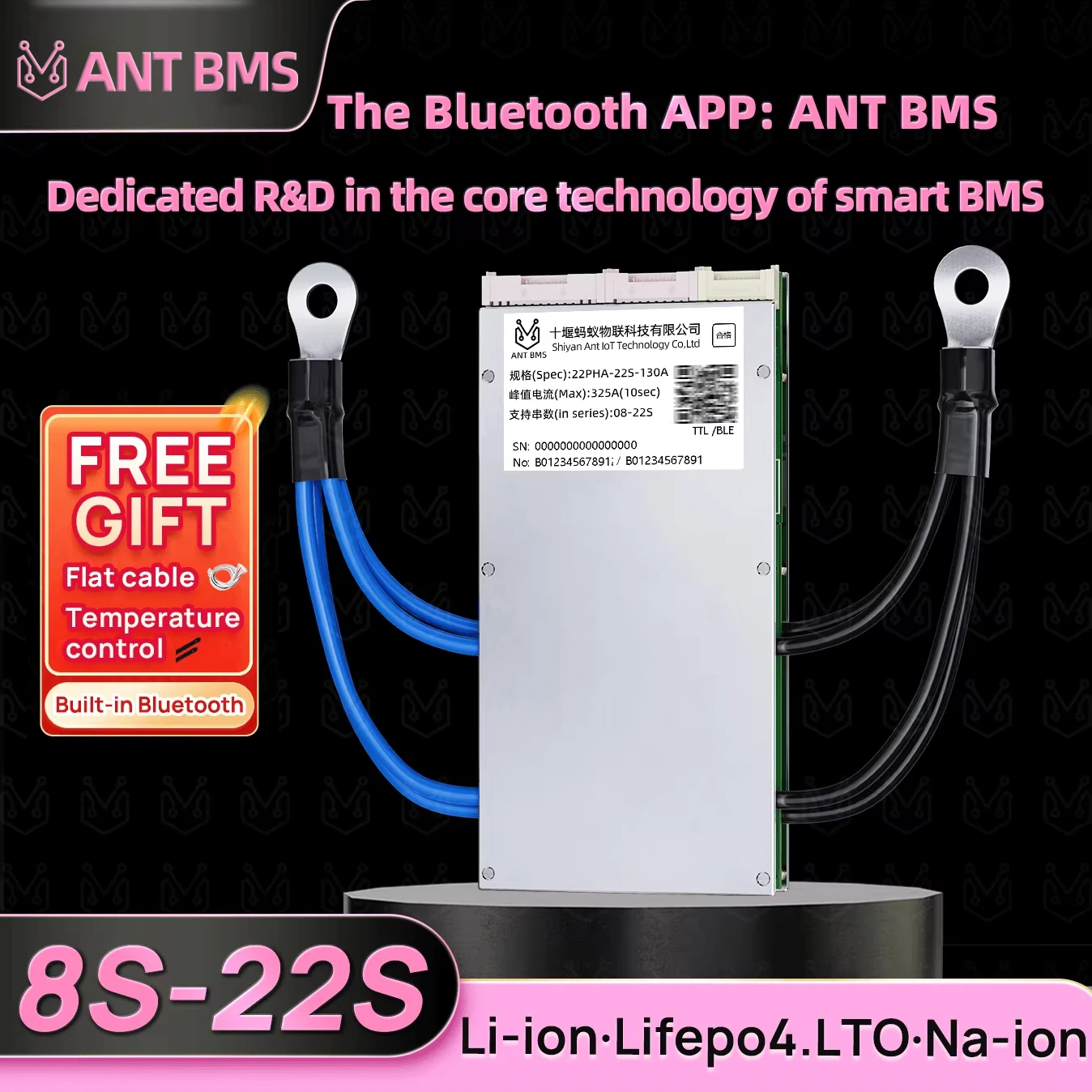

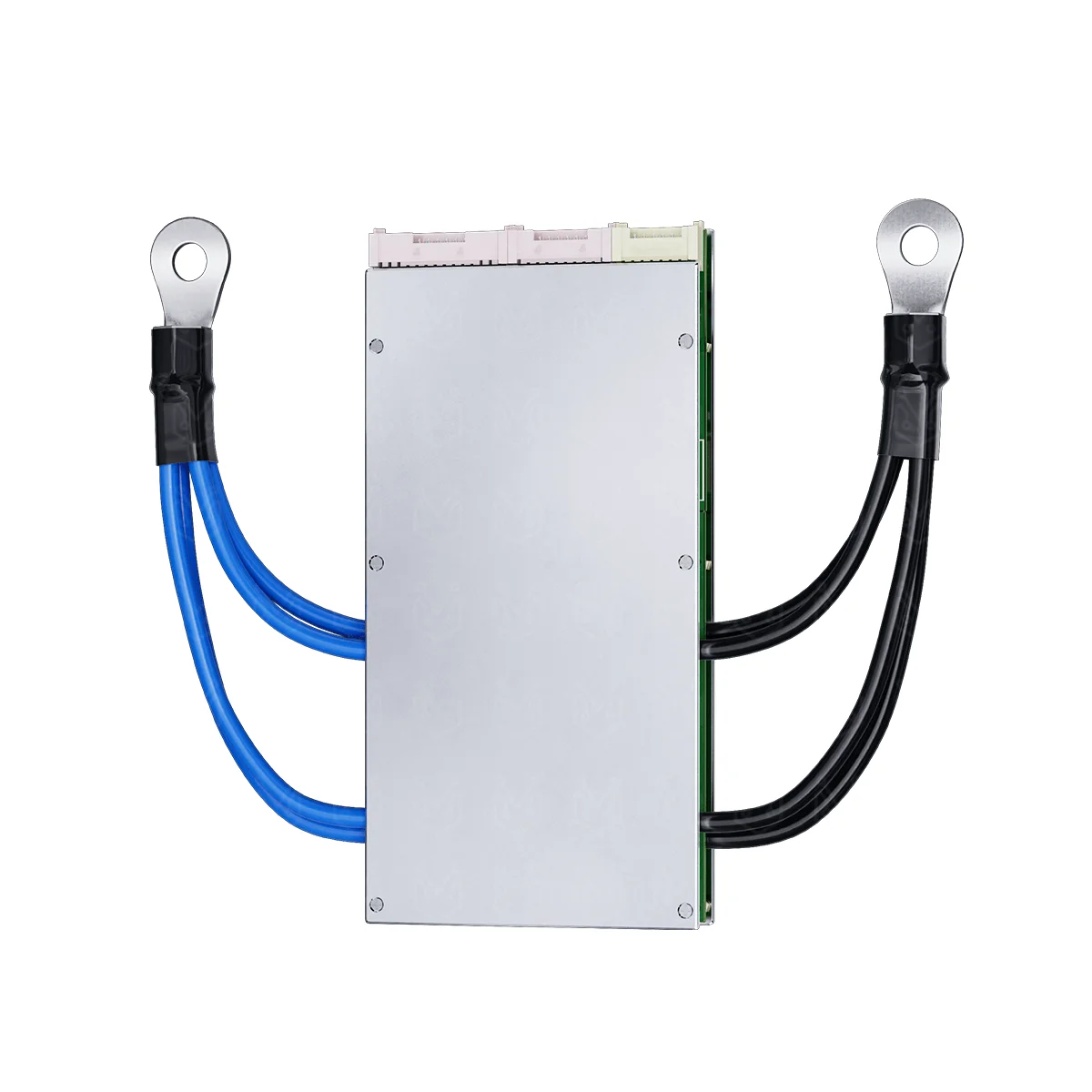

High Power ANT BMS 8S-22S Smart BMS with LCD and App Control LiFePO4 Balance Board for Energy Storage, Marine, Off-Grid Systems
