| Weight | 0.45 kg |
|---|---|
| Dimensions | 18 × 12 × 8 cm |
| Hign-concerned Chemical | None |
| IS Battery Demountable | Yes |
| Certification | CE |
| Origin | Mainland China |
| Real Time Sampling Rate | 250MSa/s |
| Brand Name | FNIRSI |
| Display Size | 3.0 – 4.9 Inches |
| DIY Supplies | ELECTRICAL |
| Band Width | 50MHz |
| Digital Channels | 2 |
| FNIRSI Model | 2C53P |
| Vertical Sensitivity | 10mv/div – 10v/div |
| Time base range | 10ns/div – 10s/div |
| Input Impedance | 1MΩ |
| Peak Voltage | ±400V |
| Input Coupling | AC/DC |
| Bandwidth limit | Support 20MHz limit |
| Trigger Mode | Auto/Normal/Single |
| Probe Attenuation Coefficient | 1x/10x |

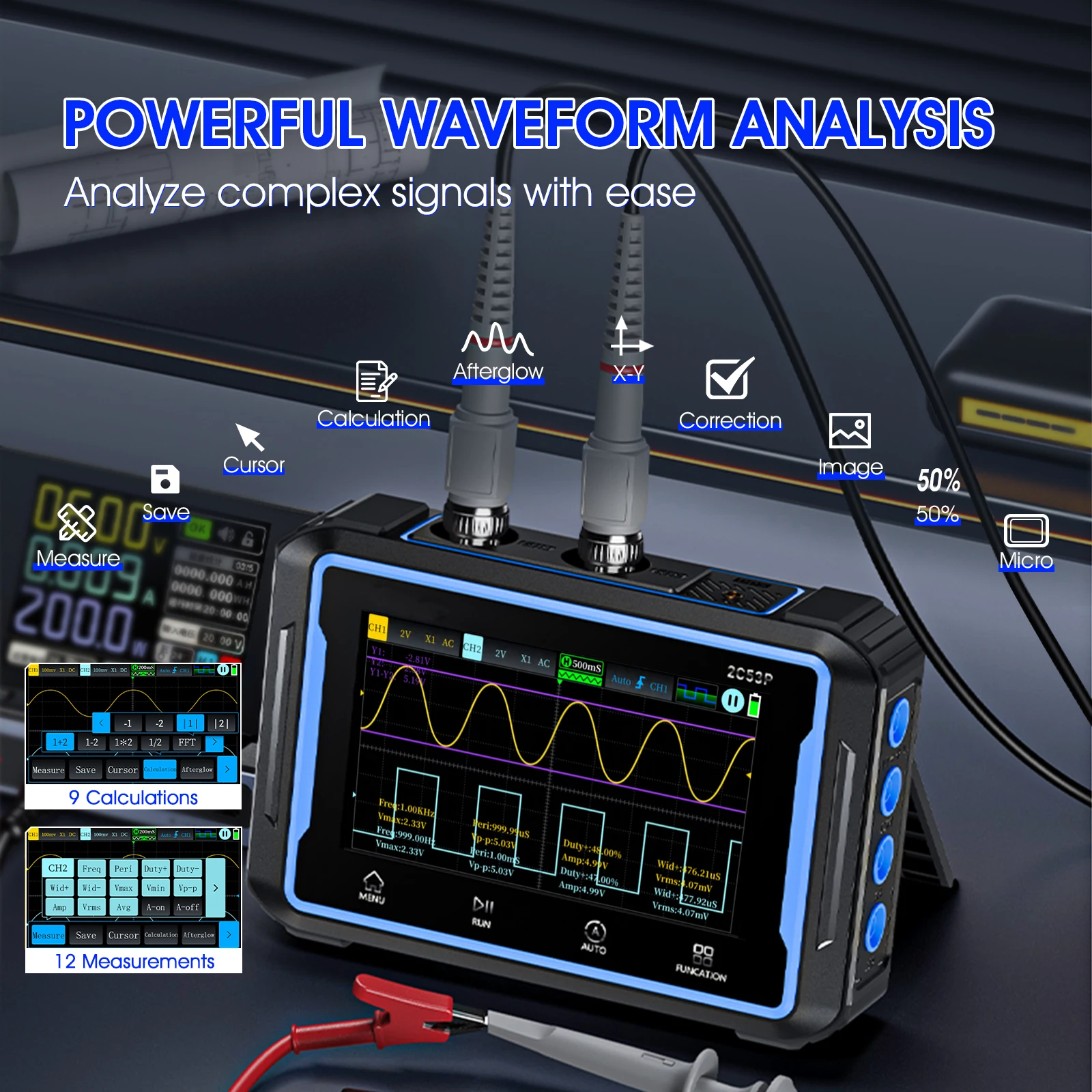

| Waveform Display Mode | YT/XY/scroll |

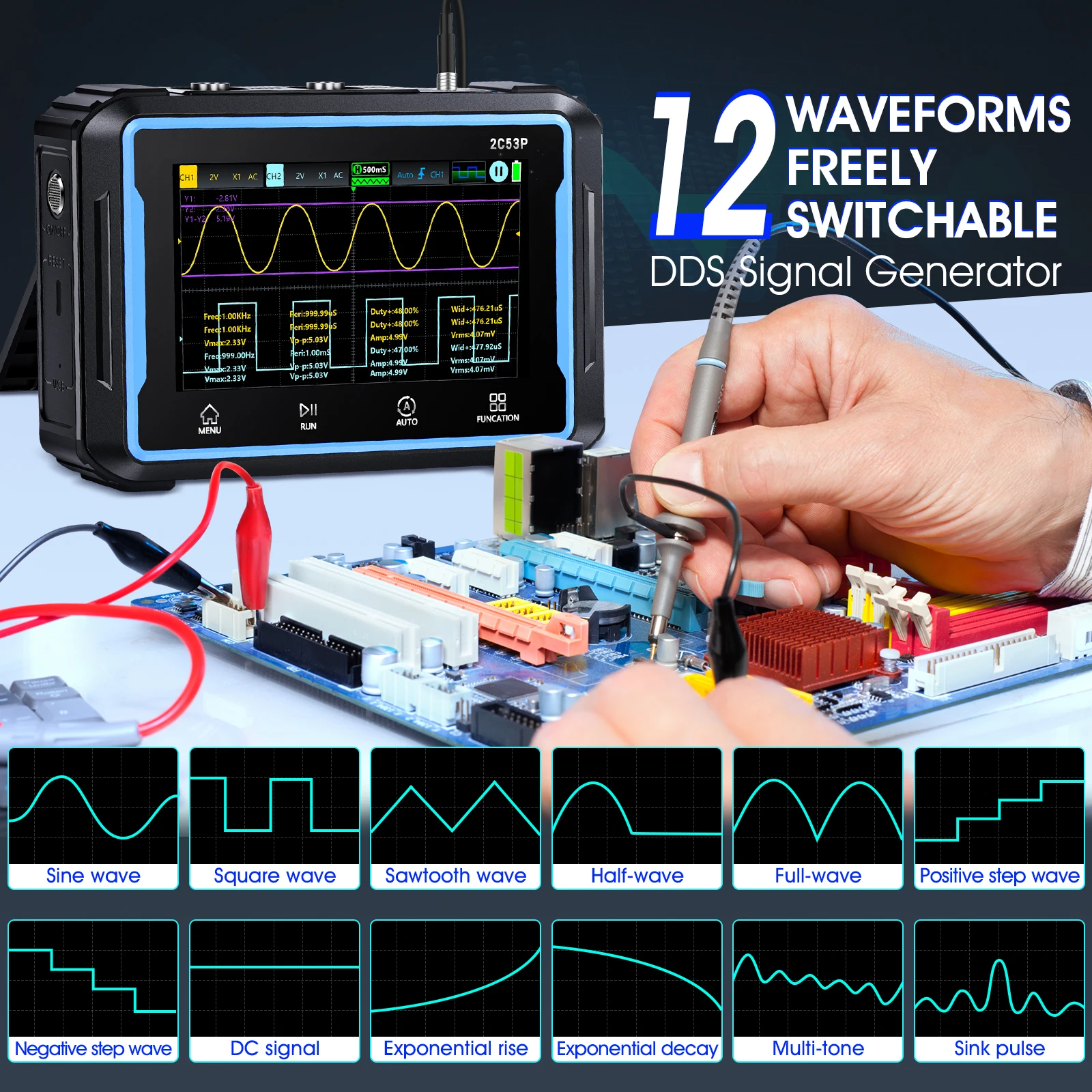

| Different Waveform Output Frequencies | Sine wave: 10MHz, other waveforms 5MHz |
| Waveform Frequency | 0-10MHz |
| Waveform Amplitude | 0.1V-3.0V |
| Square Wave Duty Cycle | 0-100% |

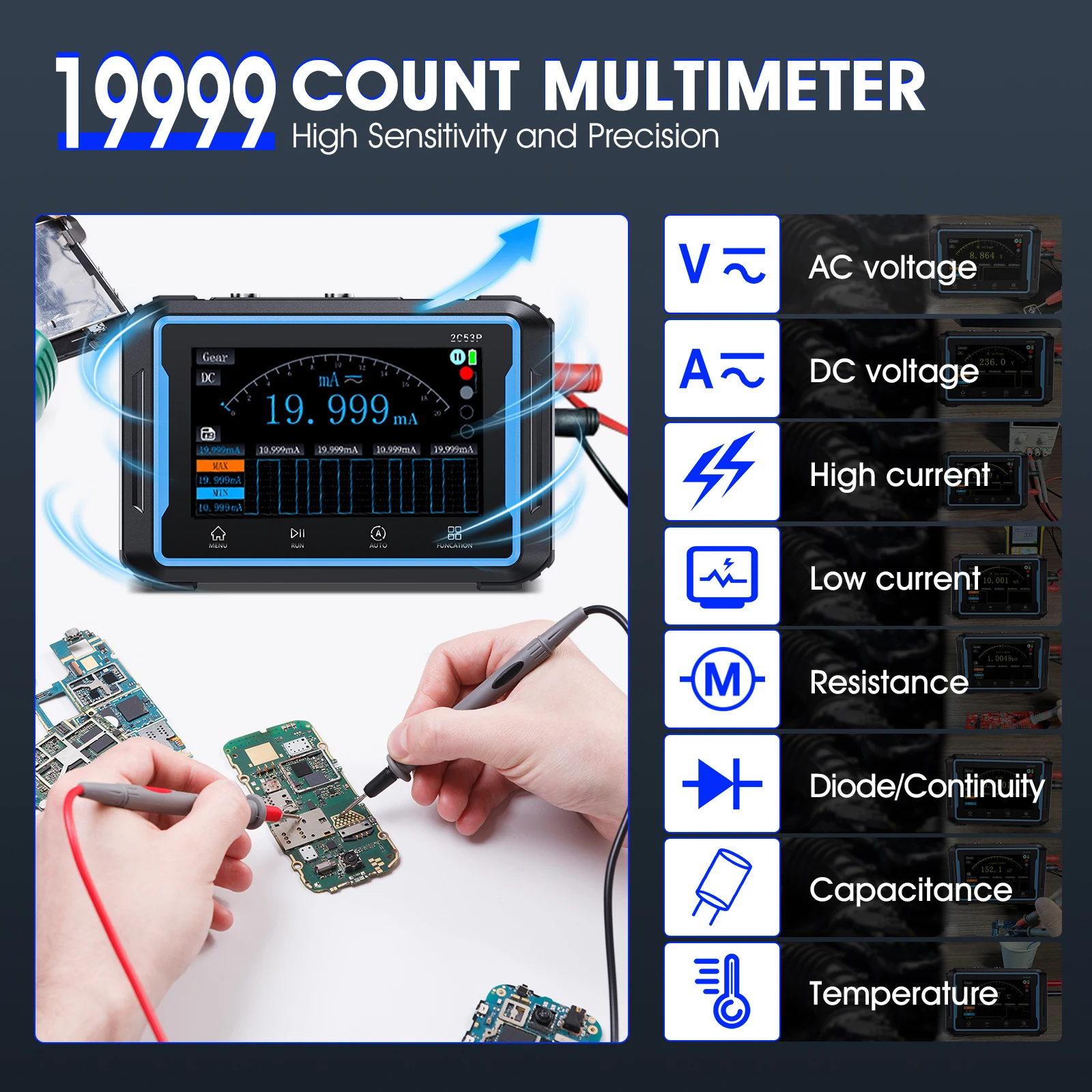

| DC Voltage | 1.9999V/19.999V/199.99V/1000.0V |
| AC Voltage | 1.9999V/19.999V/199.99V/750.0V |
| DC Current | 19.999mA/199.99mA/1.9999A/9.999A |
| AC Current | 19.999mA/199.99mA/1.9999A/9.999A |
| Resistance | 1.9999KΩ/199.99Ω |
| Capacitance | 9.999mF/99.99mF |
| Temperature | -55~1300℃ / -67~2372℉ |
| Diode/ON-OFF | YES |
Instock

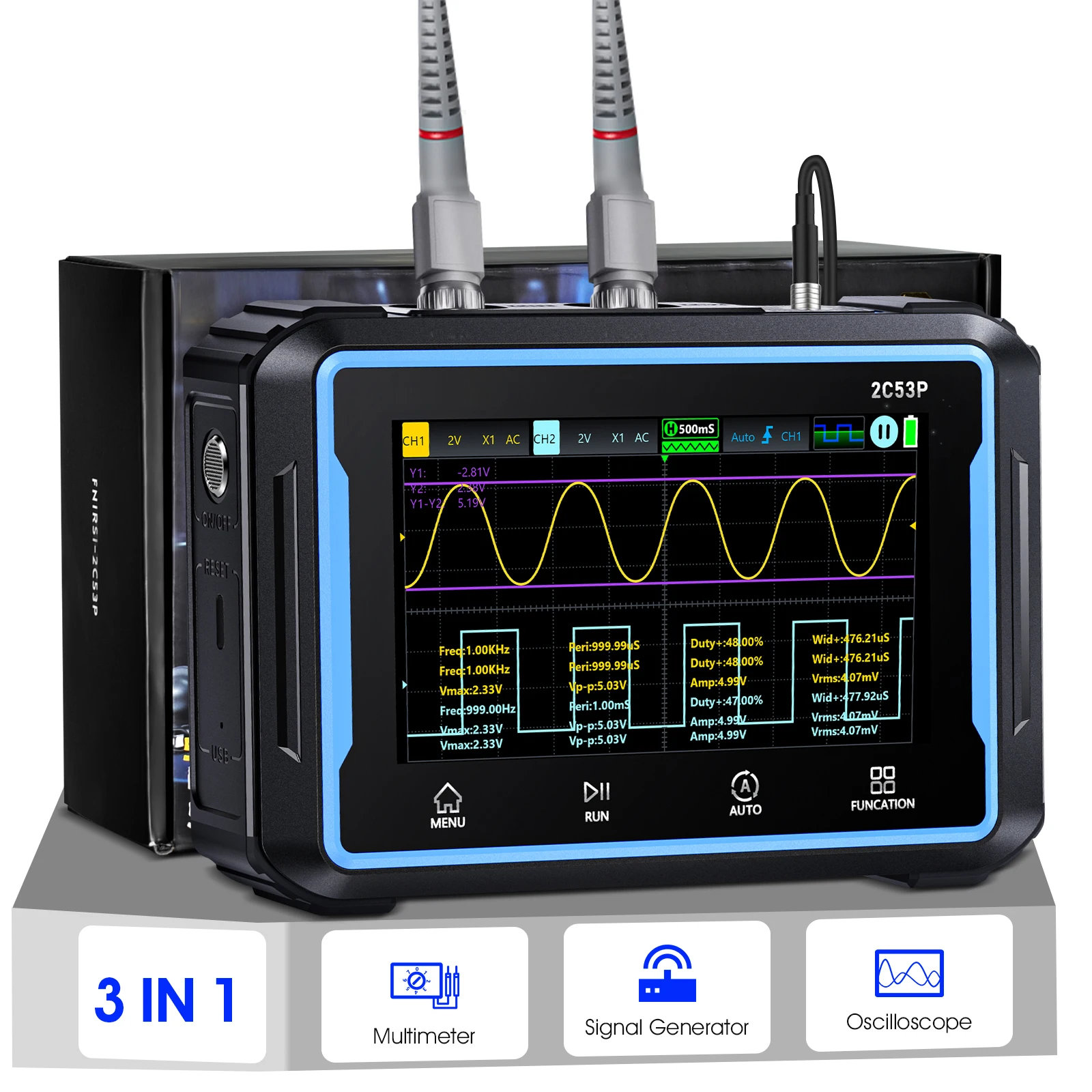

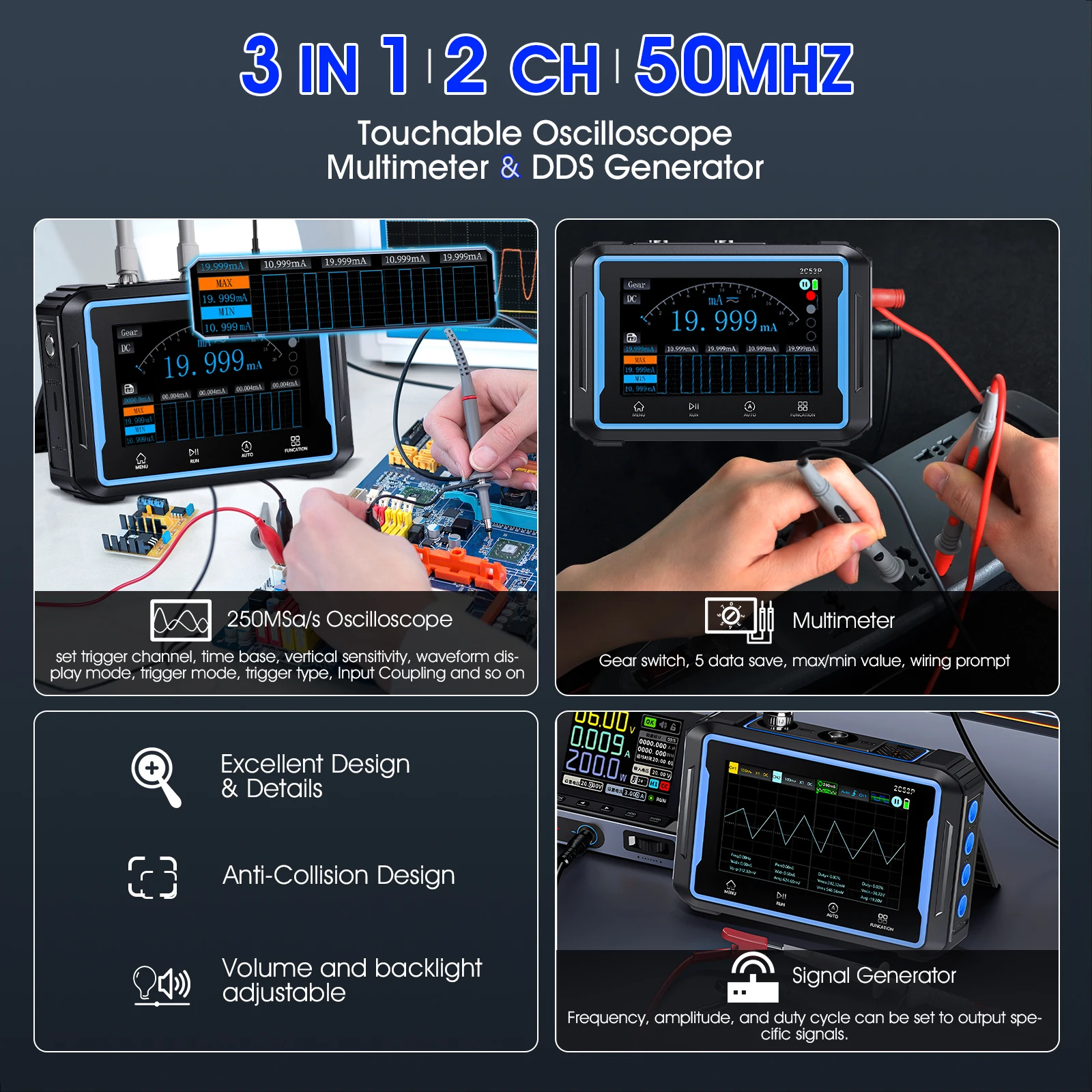

Handheld 2C53P Touch Screen Digital Oscilloscope+Multimeter+Signal Generator 3IN1 Dual Channel 50MHZ Automatic Osciloscópio Tool
