| Weight | 500 kg |
|---|---|
| Dimensions | 300 × 333 × 333 cm |
| Hign-concerned Chemical | None |
| Condition | New, New |
| CNC or Not | CNC, Normal |
| Type | Universal |
| Origin | Mainland China |
| Certification | CE |
| Grinding Diameter(Outer)(mm) | 200 |
| Grinding Diameter(Inner)(mm) | 100 |
| Max. Weight of Workpiece(kg) | 50 |
| Center Height (mm) | 135 |
| Wheel Size(mm) | 400 x 50 x 203 |
| Wheel Speed (rpm) | 1670 |
| Cylindricity (mm) | 0.008/0.01 |
| Surface Roughness(μm) | 1.5 |
| Year | New |
| Place of Origin | Anhui, China |
| Brand Name | wmtcnc or Customized |
| Voltage | 380V |
| Dimension(L*W*H) | 2250x1600x1500mm |
| Weight (KG) | 2200 |
| Power (kW) | 4 |
| Key Selling Points | Competitive Price |
| Warranty | 1 Year |
| Applicable Industries | Construction works, Garment Shops, Retail, Building Material Shops |
| Marketing Type | Hot Product 2022 |
| Machinery Test Report | Provided |
| Video outgoing-inspection | Provided |
| Warranty of core components | 1 Year |
| Core Components | Motor, Bearing, Gearbox, Gear, Pump, PLC |
| Machine type | Cylindrical grinding machine |
| After-sales Service Provided | Engineers available to service machinery overseas |
| Grinding length | 500mm/800mm |
| Max.travel of worktable | 640mm/950mm |
| Grinding wheels dimensions | 400 x 50 x 203mm |
| Grinding head travel | 200mm |
| Work spindle speeds | 25 – 380r/min |
| Max. workpiece weight | 50kgs |
| benchtop cylindrical grinding machine | precision cylindrical grinding machine |
| Color | Customized Optional |
Instock

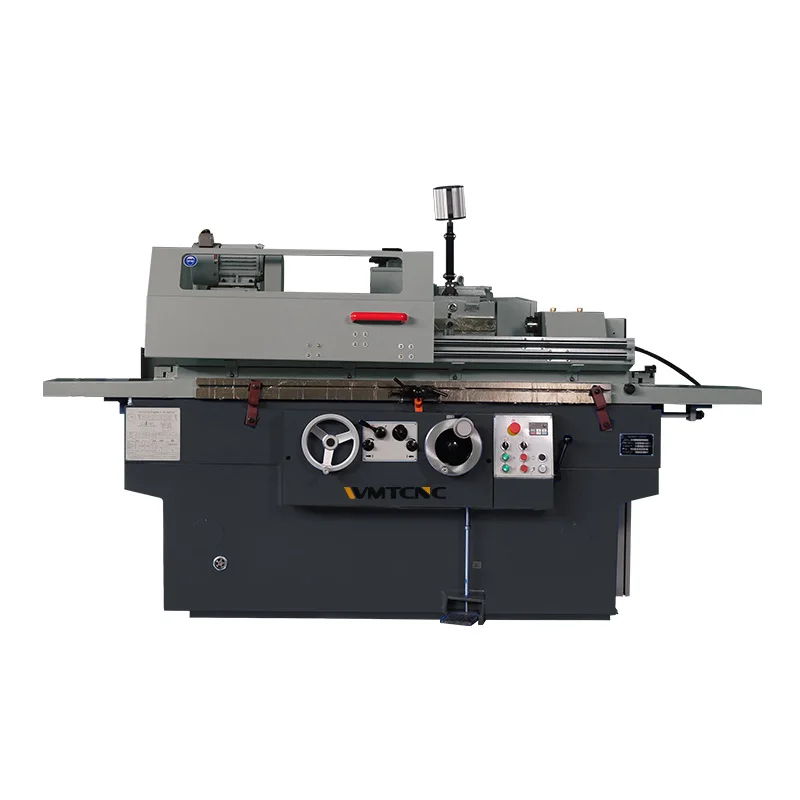

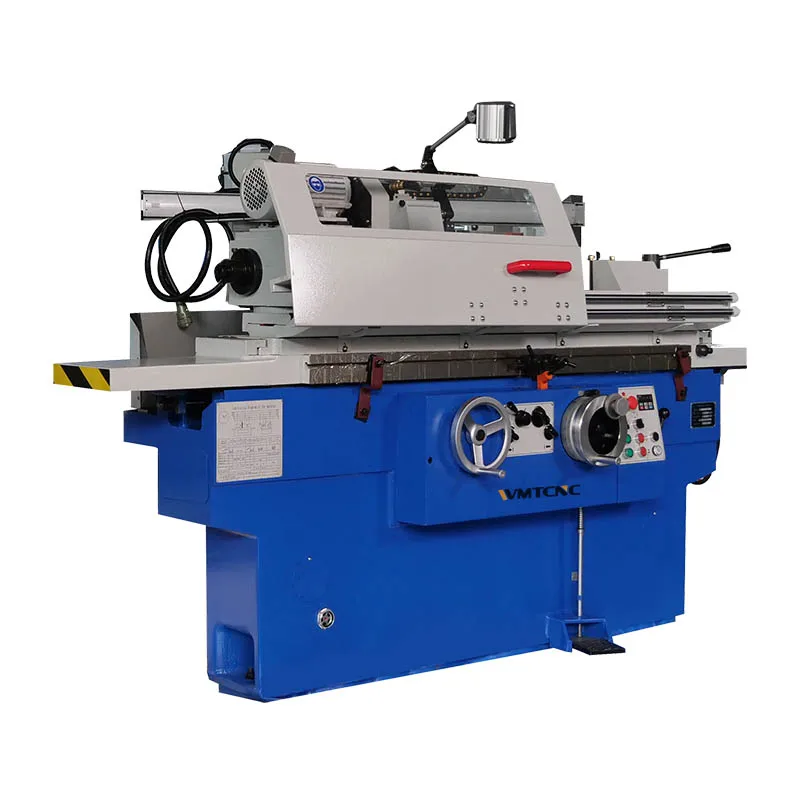

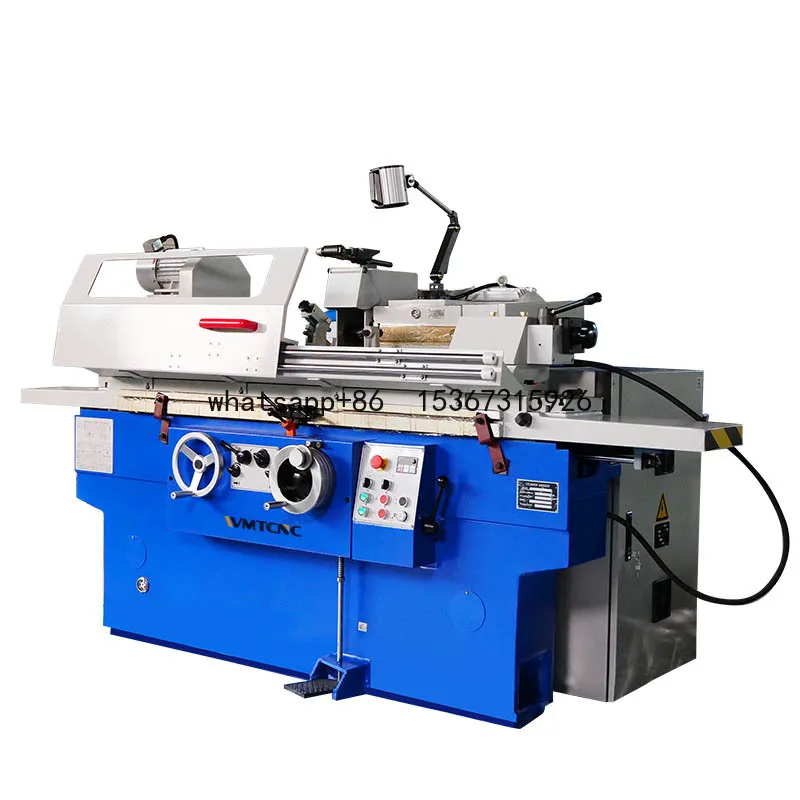

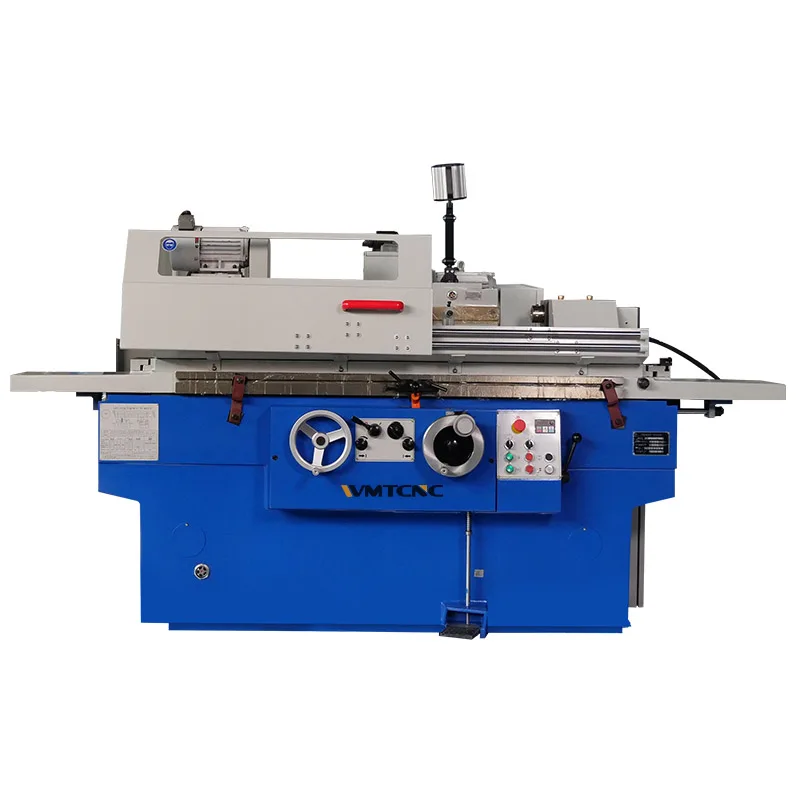

grinding machine grinder M1420H universal cylindrical grinding machine for internal and external grinding
