| Weight | 26 kg |
|---|---|
| Dimensions | 67 × 47 × 21 cm |
| Rated Voltage | 220V |
| Origin | Mainland China |
| Model Number | BFL-CW1500 BFL-CW1000 BFL-CW2000 |
| Usage | For fiber laser machine |
| Certification | CE |
| Single Pulse Energy | 1500W |
| Pulse Width | 20μ 25μm or 50μm |
| Brand Name | FONLAND, Fonland |
| Power | 1000W/1500W/2000W |
| Wavelength | 1080±10 nm |
| Output fiber core diameter | 20μ 25μm or 50μm |
| Cable Length | 12 m |
| Beam Delivery | QBH or Customized |
| Guide Beam | Red |
| Operation Mode | Continuous or Modulated |
| Polarization | Random |
| Power Stability | ±1.5% (2h) |
| Power Adjustment Scope | 10%-100% |
| Max. Modulation Frequency | 5kHz |
| Weight | 26Kg |
| Outline Feature | 80mm*402mm*346mm |
| Voltage | 220±20V, AC, PE, 50/60Hz |
| Power Consumption | 4.5 kW |
| Control Interface | RS232 |
| Mini. Water Cooling Capacity | 3.5 kW |
| Temperature Settings | 30 |
| Cooling Tubes Size (Inner) | 12mm |
| Cooling Water Flux | 15L/min |
| QBH Cooling Water Flux | 1.5~2.0L/min |
Instock

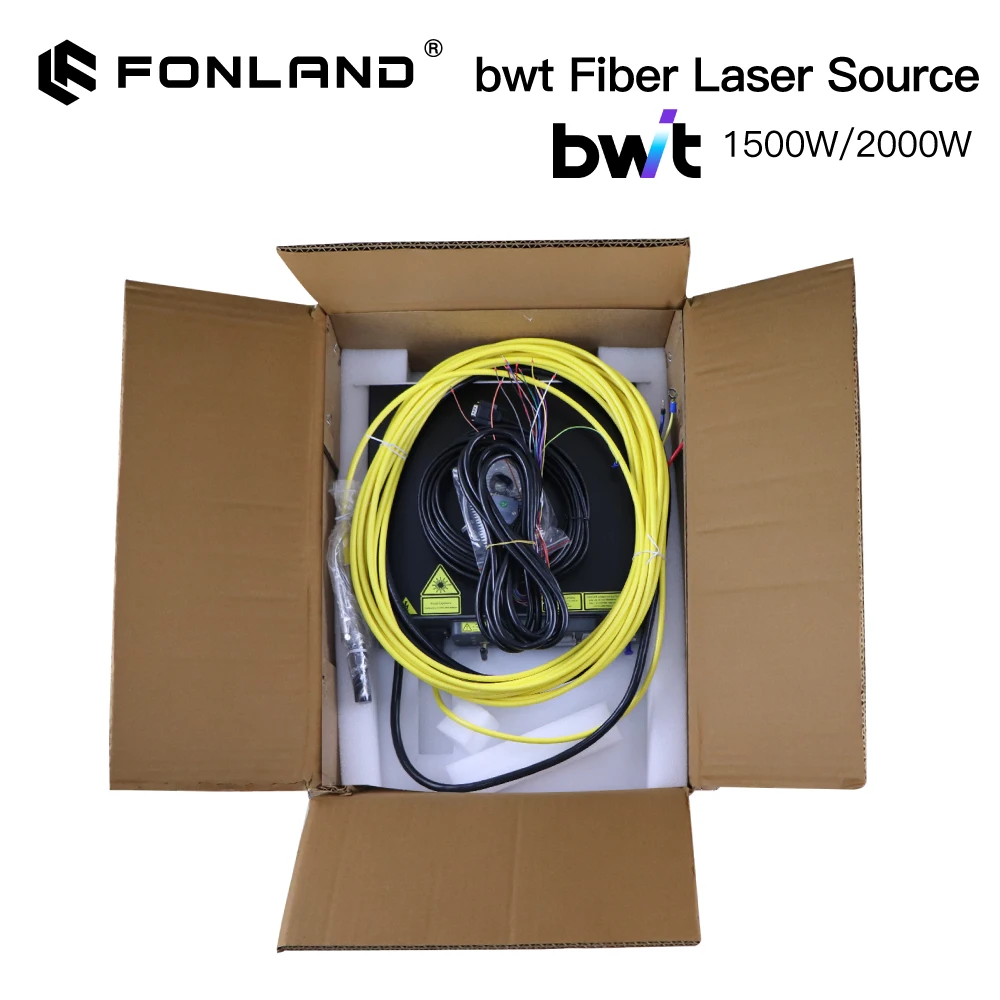

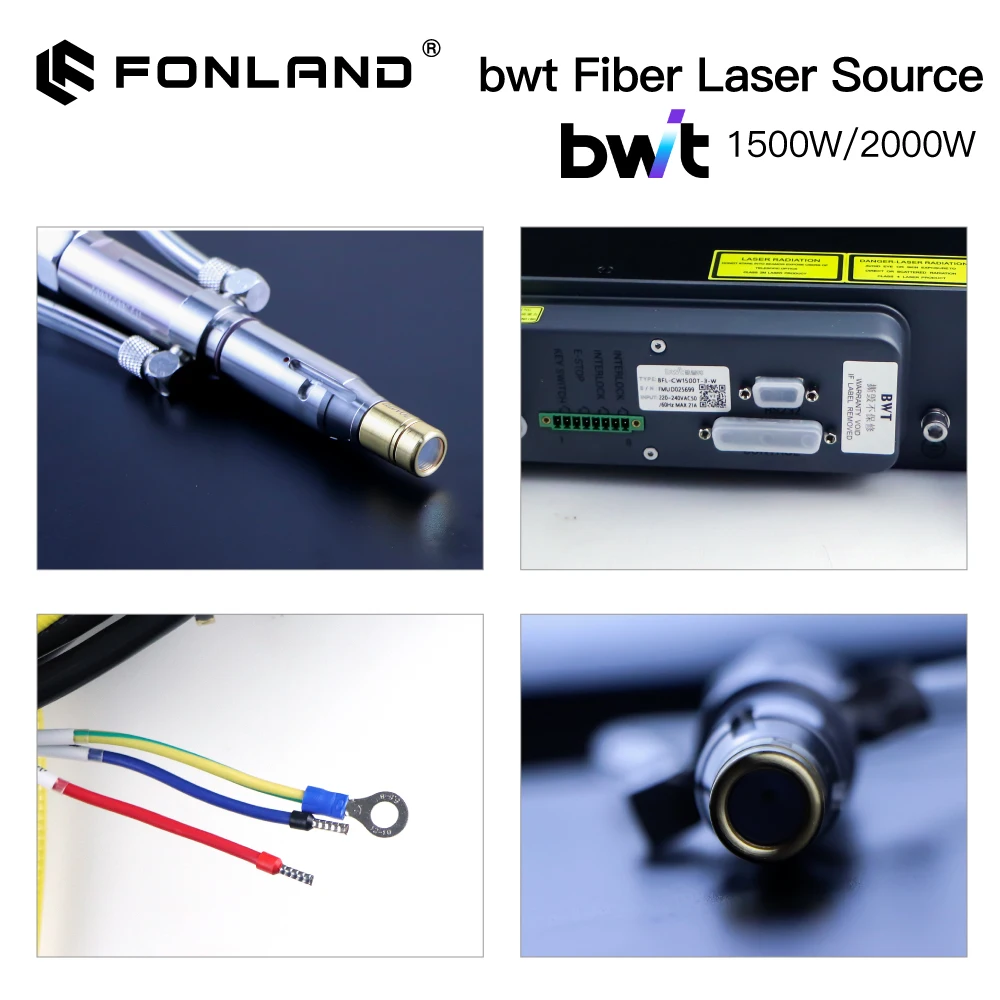

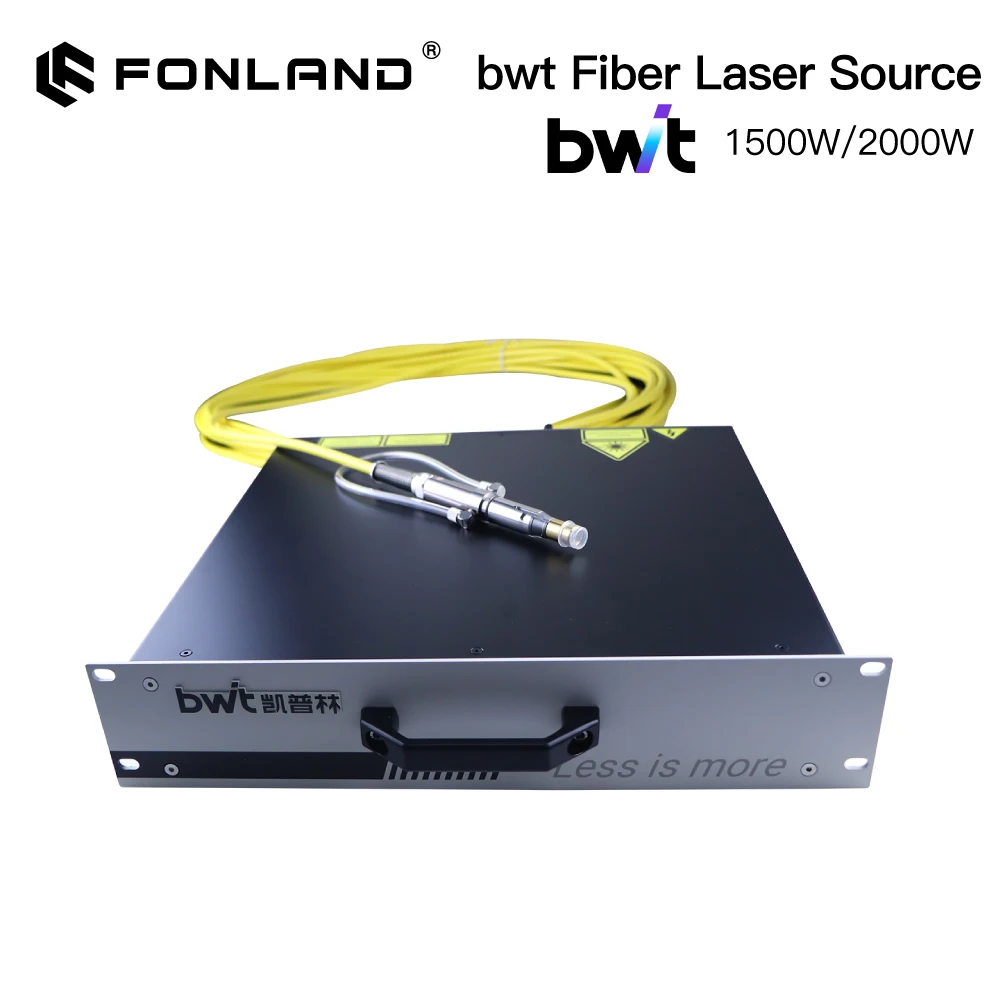

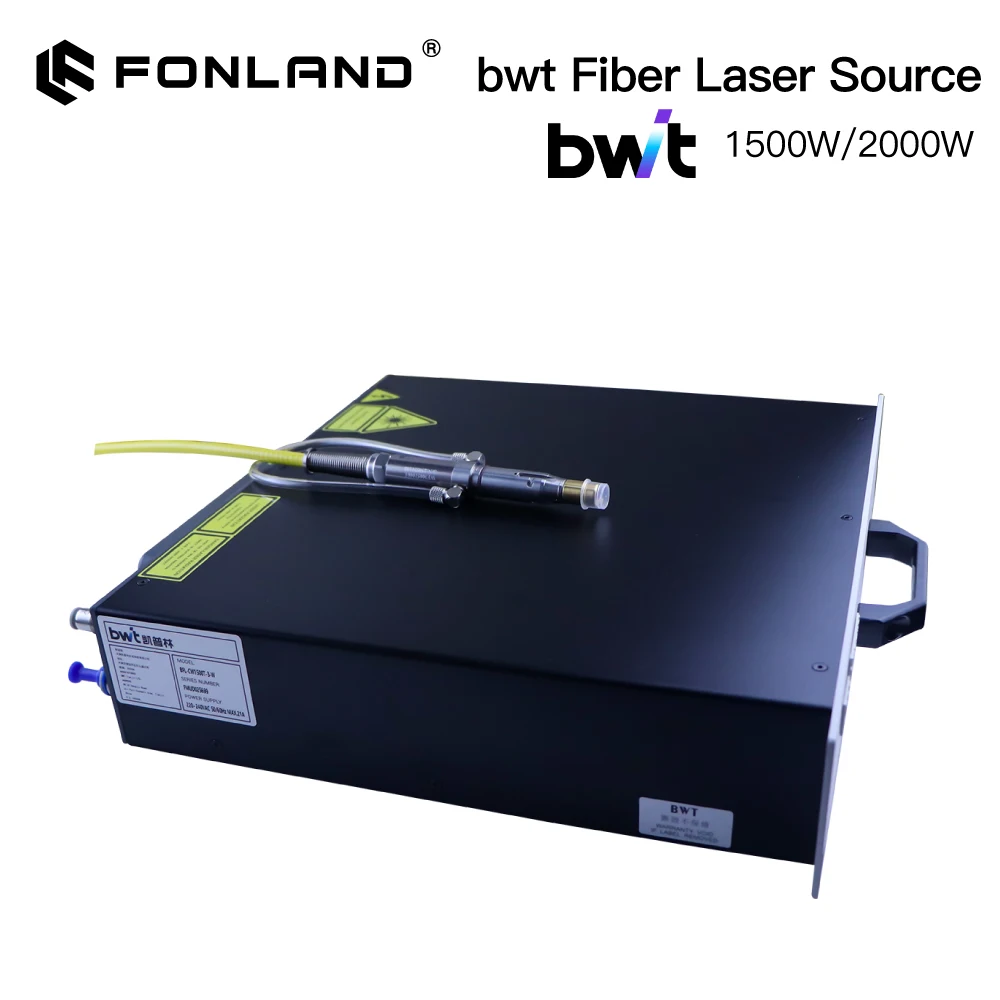

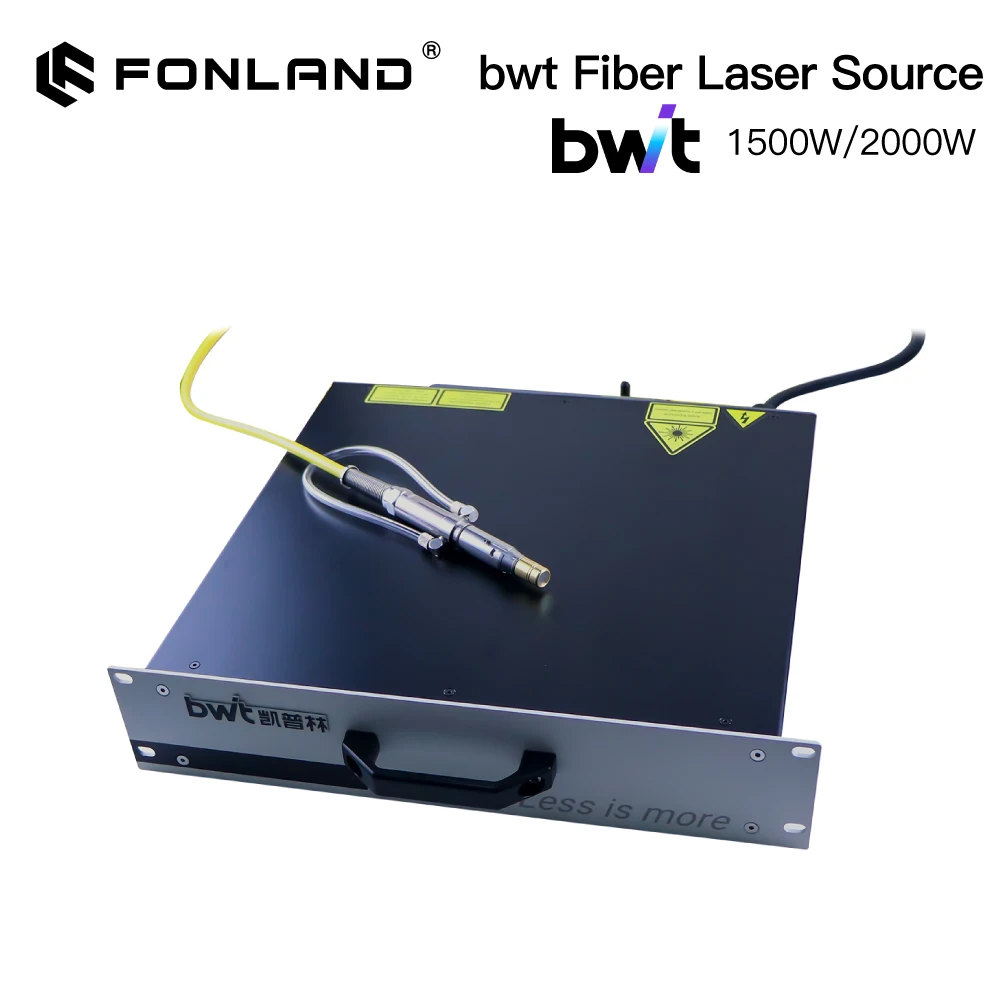

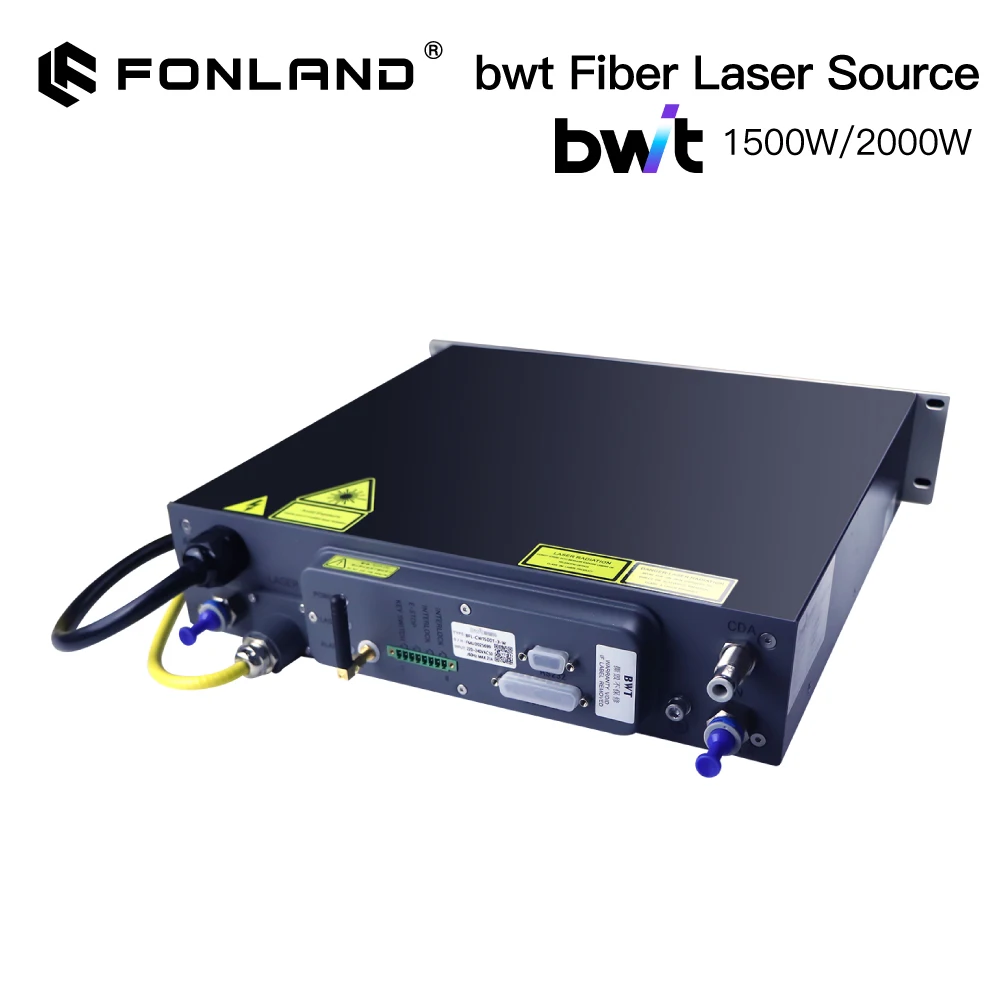

Fonland Fiber Cutting Welding Cleaning Laser Source BFL-CW1500 BFL-CW1000 BFL-CW2000 Single Module BWT Fiber Laser Power
