| Weight | 0.53 kg |
|---|---|
| Dimensions | 15 × 14 × 8 cm |
| Hign-concerned Chemical | None |
| Model Number | SG-003A |
| DIY Supplies | ELECTRICAL |
| Brand Name | FNIRSI |
| Origin | Mainland China |
| Certification | CE |
| Display size | 2.0 Inches |
| Active current output range | 0~24mA |
| Active current output resolution | 0.01 mA |
| Active current output maximum load | 750Ω |
| Active current output Precision | ±(0.1%+0.005) |
| Passive current output range | 0-24 mA |
| Passive current output resolution | 0.01 mA |
| Passive current output | external power supply Up to 30V |
| Voltage output range | 0-24 V |
| Voltage output resolution | 0.01v |
| Voltage output maximum current | 30mA |
| Voltage output Precision | ±(0.1%+0.005) |
| 24V voltage output drive current | 24mA |
| 24V voltage output resolution | 0.01 mA |
| 24V voltage output Precision | ±(0.1%+0.005) |
| Current input measurement range | 0-24 mA |
| Current input measurement resolution | 0.01 mA |
| Current input measurement | input impedance 100Ω |
| Current input measurement Precision | ±(0.1%+0.05) |
| Voltage input measurement range | 0-30 V |
| Voltage input measurement resolution | 0.01V |
| Voltage input impedance | 2MΩ |
| Voltage input measurement Precision | ±(0.1%+0.05) |
| PWM output (frequency) Range | 0-9999Hz |
| Operating environment | 0 °C – 50 °C. |

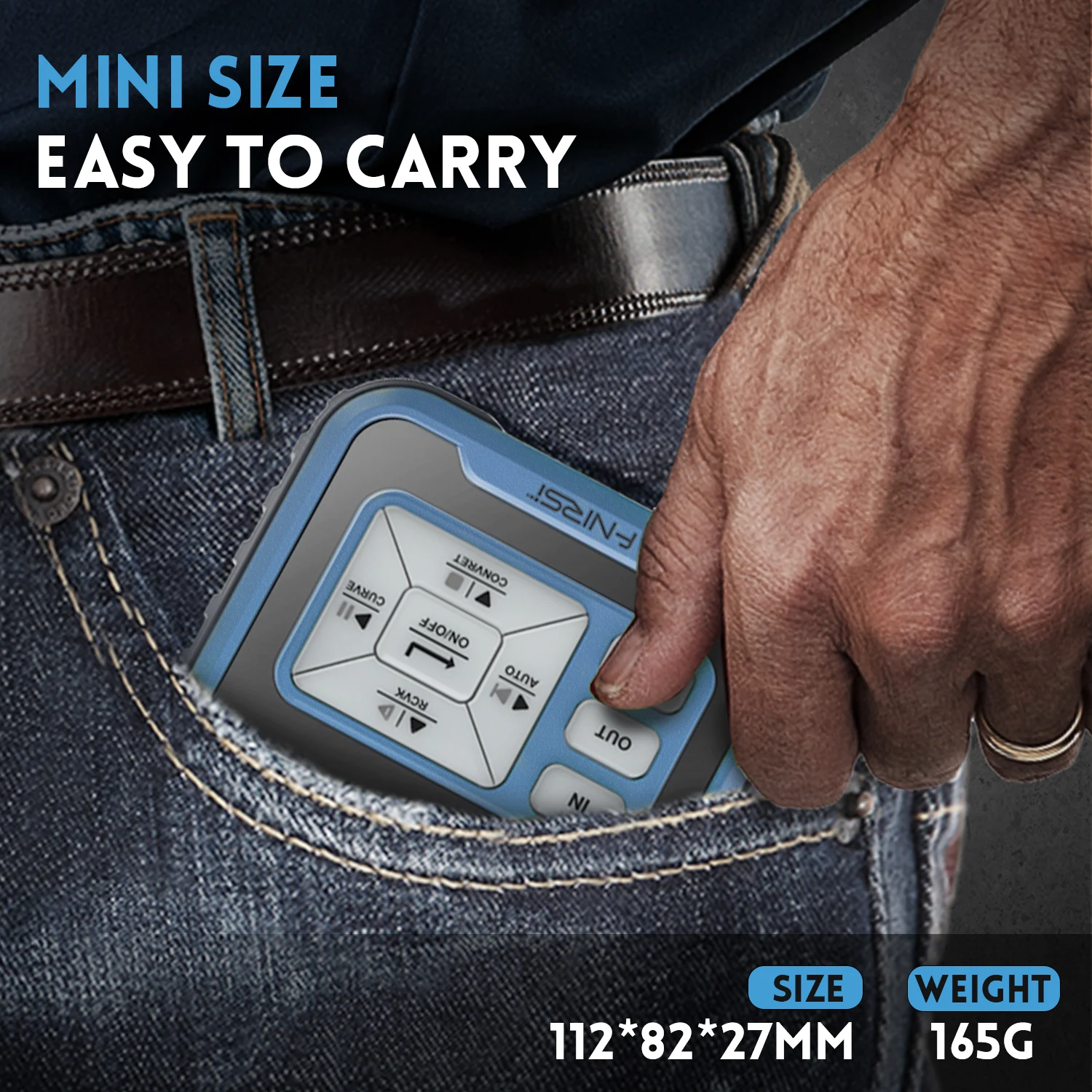

| Size | 112mm*82mm*27mm |
| battery capacity | 3000mAh |
Instock

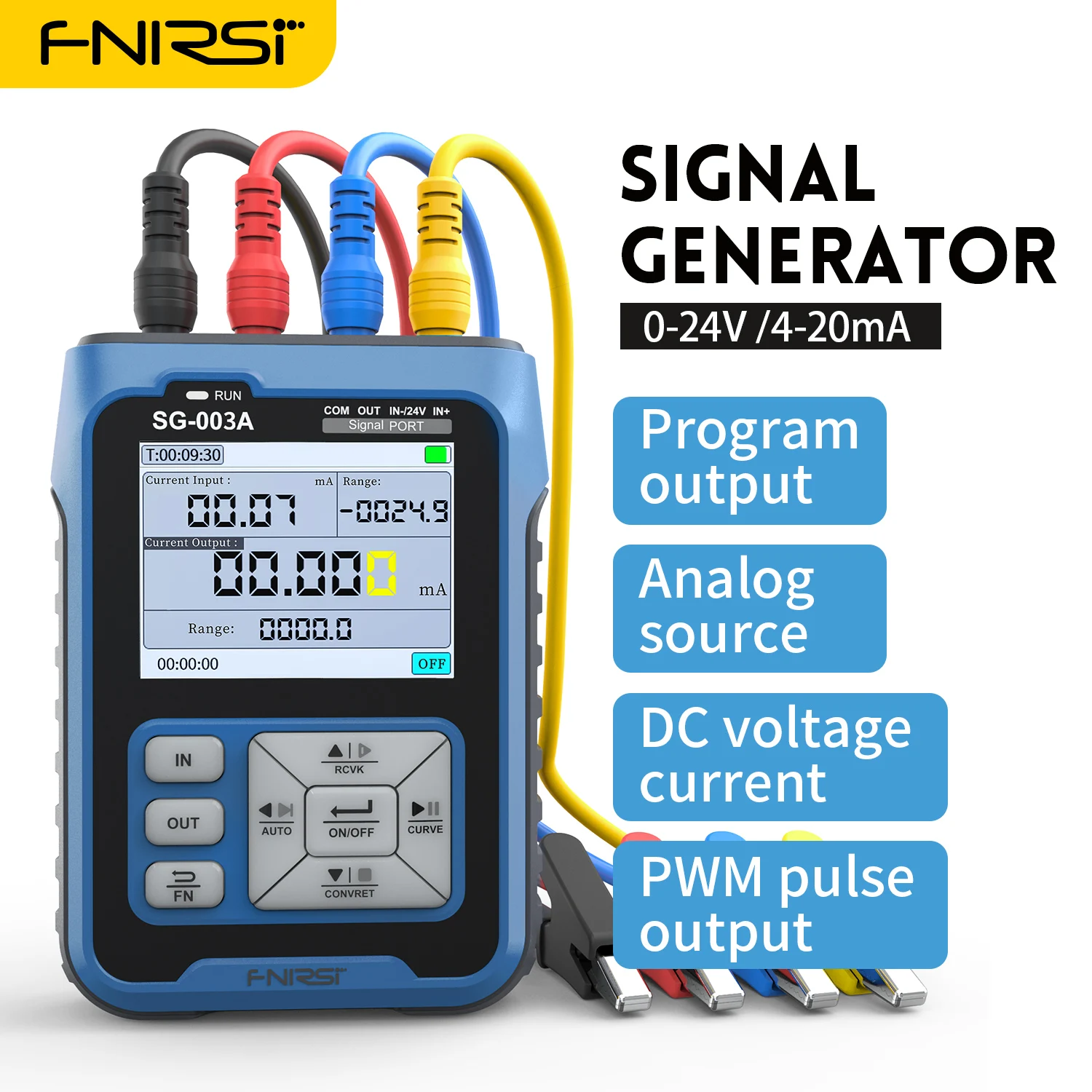

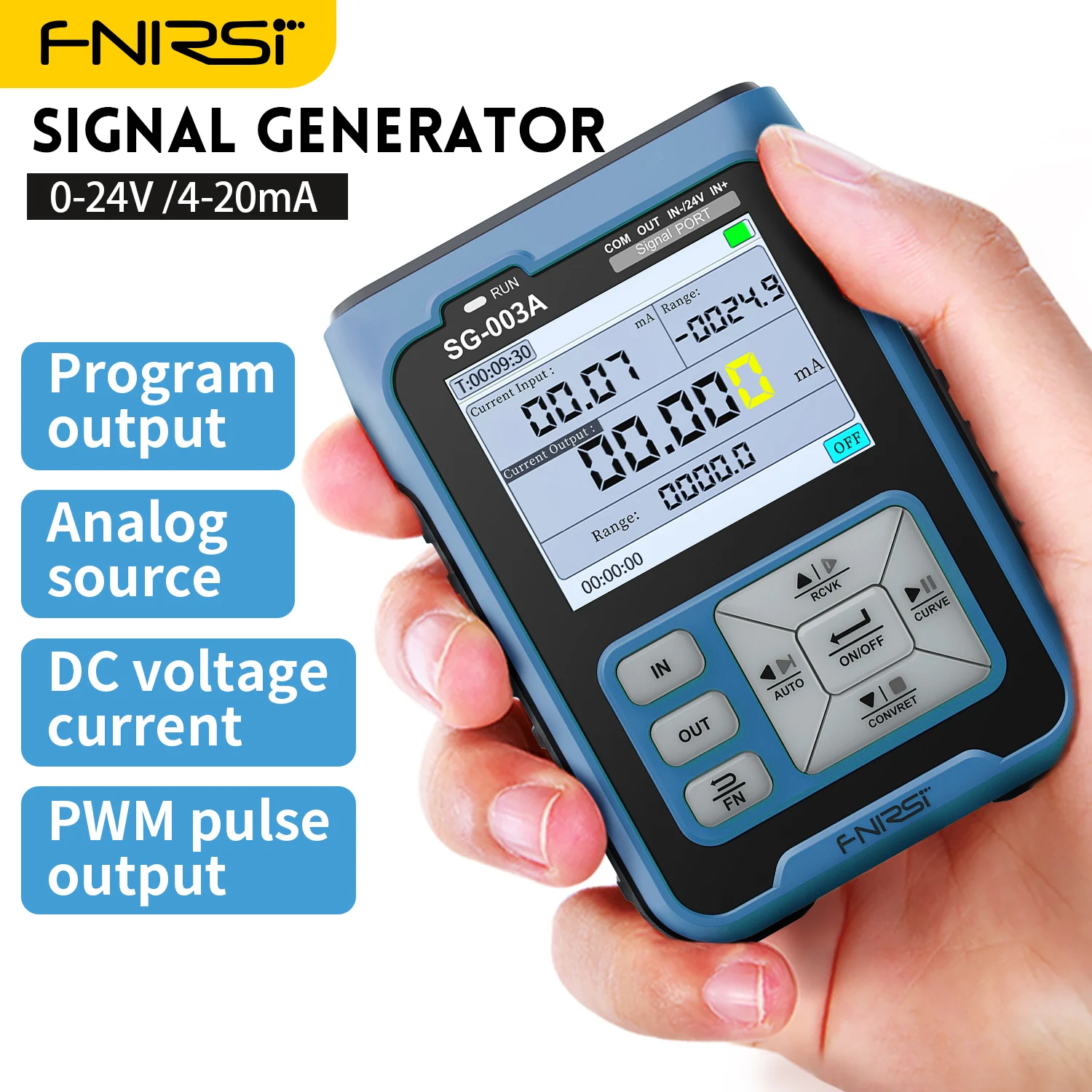

FNIRSI SG-003A 0-10V Adjustable Current Voltage Simulator 4-20mA Signal Generator Sources transmitter calibrator Transmitte
