| Weight | 0.85 kg |
|---|---|
| Dimensions | 15 × 10 × 5 cm |
| IS Battery Demountable | No |
| Model Number | FNIRSI DSO-TC3 |
| Certification | CE |
| Origin | Mainland China |
| Brand Name | FNIRSI |
| Display Size | 2.9 Inches & Under |
| Display resolution | 320*240 Pixels |
| DIY Supplies | ELECTRICAL |
| Band Width | Less than 60MHz |
| Digital Channels | 1 |
| Display Screen | 2.4 inch TFT color screen |
| Supply voltage | Rechargeable lithium battery |
| Charging specifications | Type-C 5V |
| Bracket specifications | All-in-one foldable stand |
| Real-time sample rate | 10MSa/s |
| Analog Bandwidth | 500Khz |
| Input resistance | 1MΩ |
| Coupling Mode | AC/DC |
| Test voltage range | 400V |
| Vertical Sensitivity (x1) | 10mV-10V |
| Horizontal time base range | 1us-10s |
| Trigger Mode | Auto / Normal / Single |
| Trigger type | Rising edge / Falling edge |
| Waveform Freeze | Yes |
| Automatic measurement | Yes |
| Diodes Forward voltage drop | <4.5V |
| Reglulated Diode | 0.01~4.5V |
| MOSFET | JFET IGBT MOSFET |
| SCR | Turn-on voltage <5V, gate Pole trigger current <6mA |
| Capacitor | 5pF~100mF |
| Resistor | 0.01Ω~50MΩ |
| Inductor | 10uH~1000mH |
| Battery | 0.1~4.5V |
| Input voltage | 0~40V |
| DS18B20 | 0-85℃ |
| DHT11 | 0-60℃/5-95% |
| Infrared remote decoding | NEC protocol infrared code |

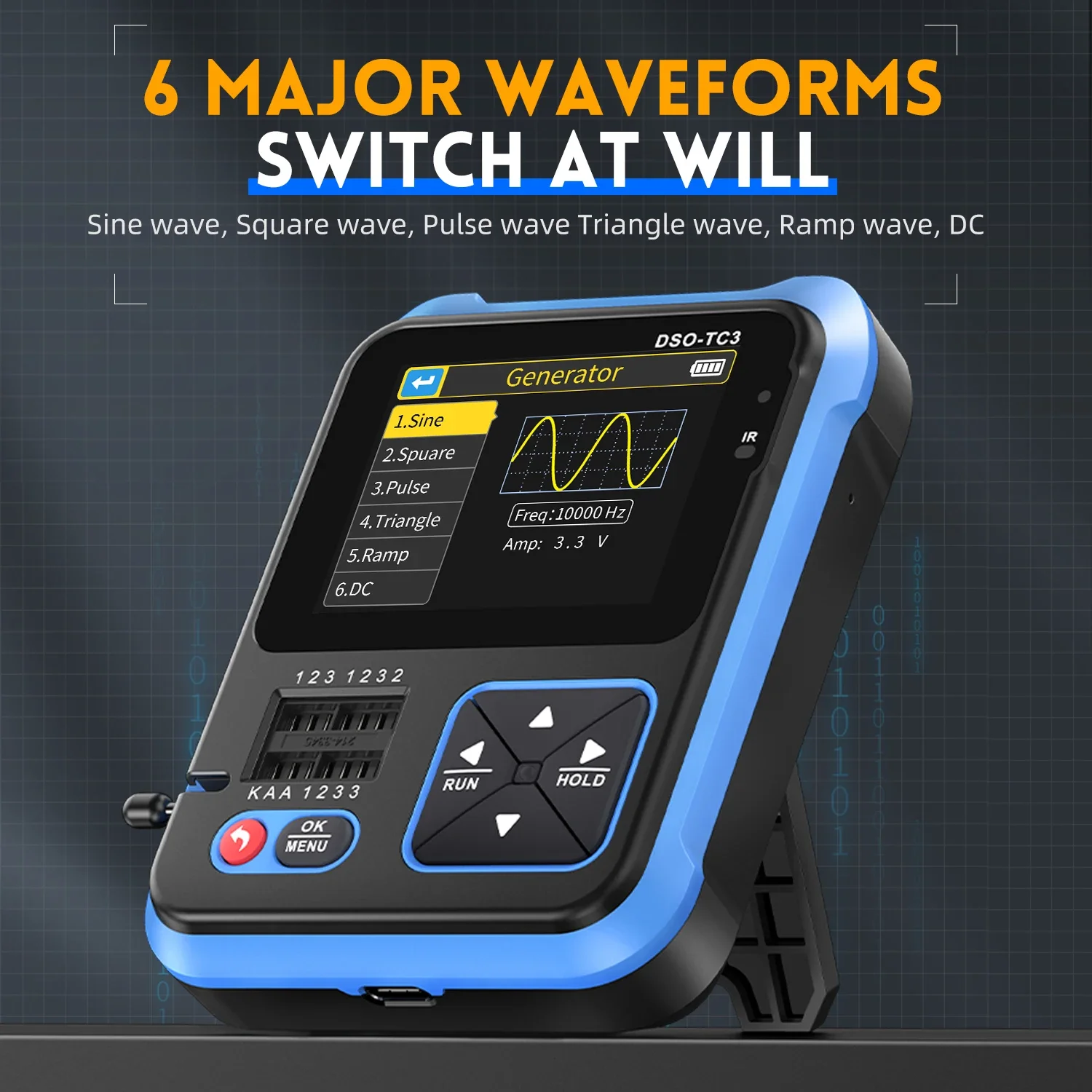

| Triangle wave | 1-10KHz/0-3.3V/50%, 1-10KHz/0-3.3V/50% |
| Square wave | 1-100KHz/3.3V/50% |
| Pulse wave | 1-100KHz/3.3V/0-100% |
| Ramp | 1-10KHz/0-3.3V/0-100% |
| DC | 0-3.3V |
Instock

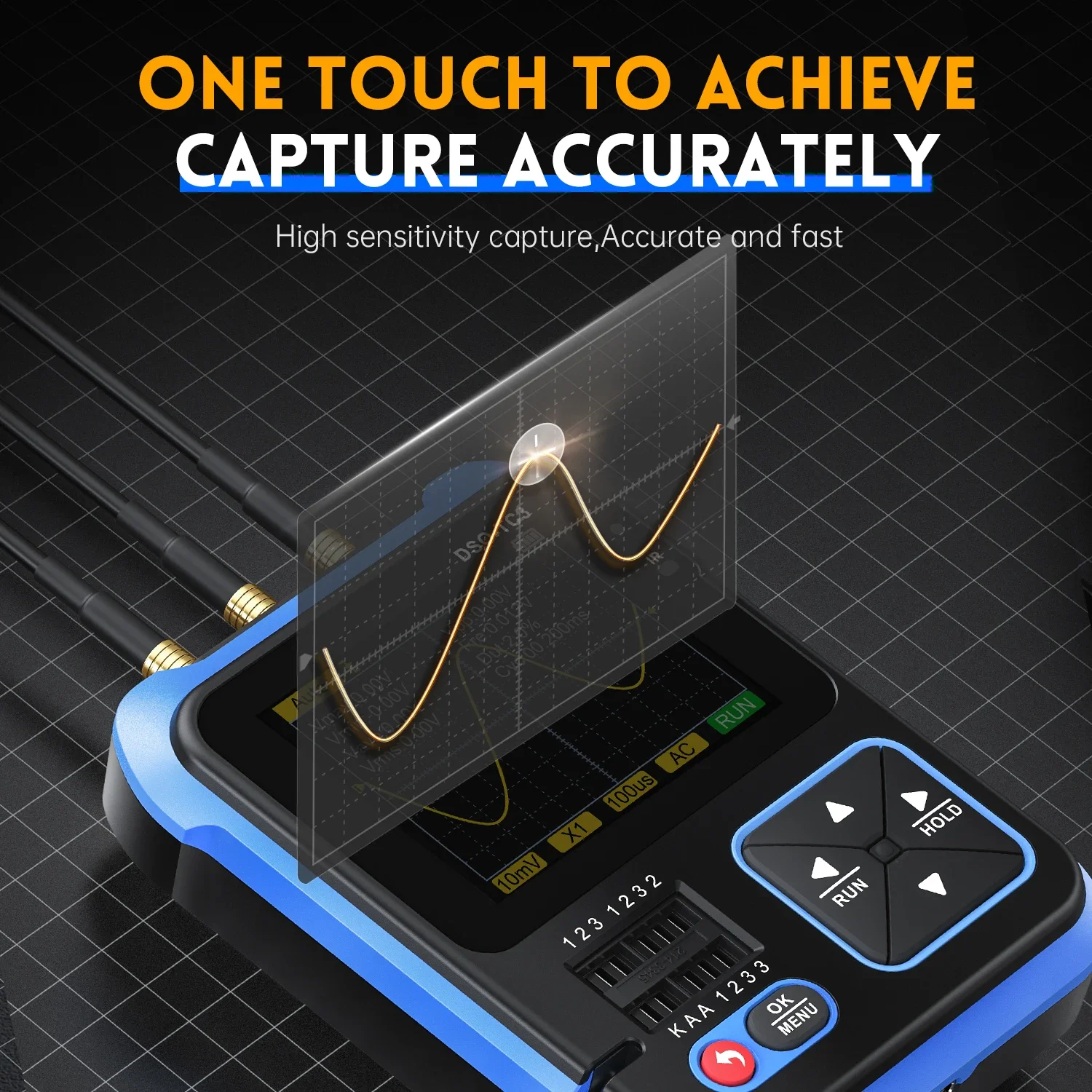

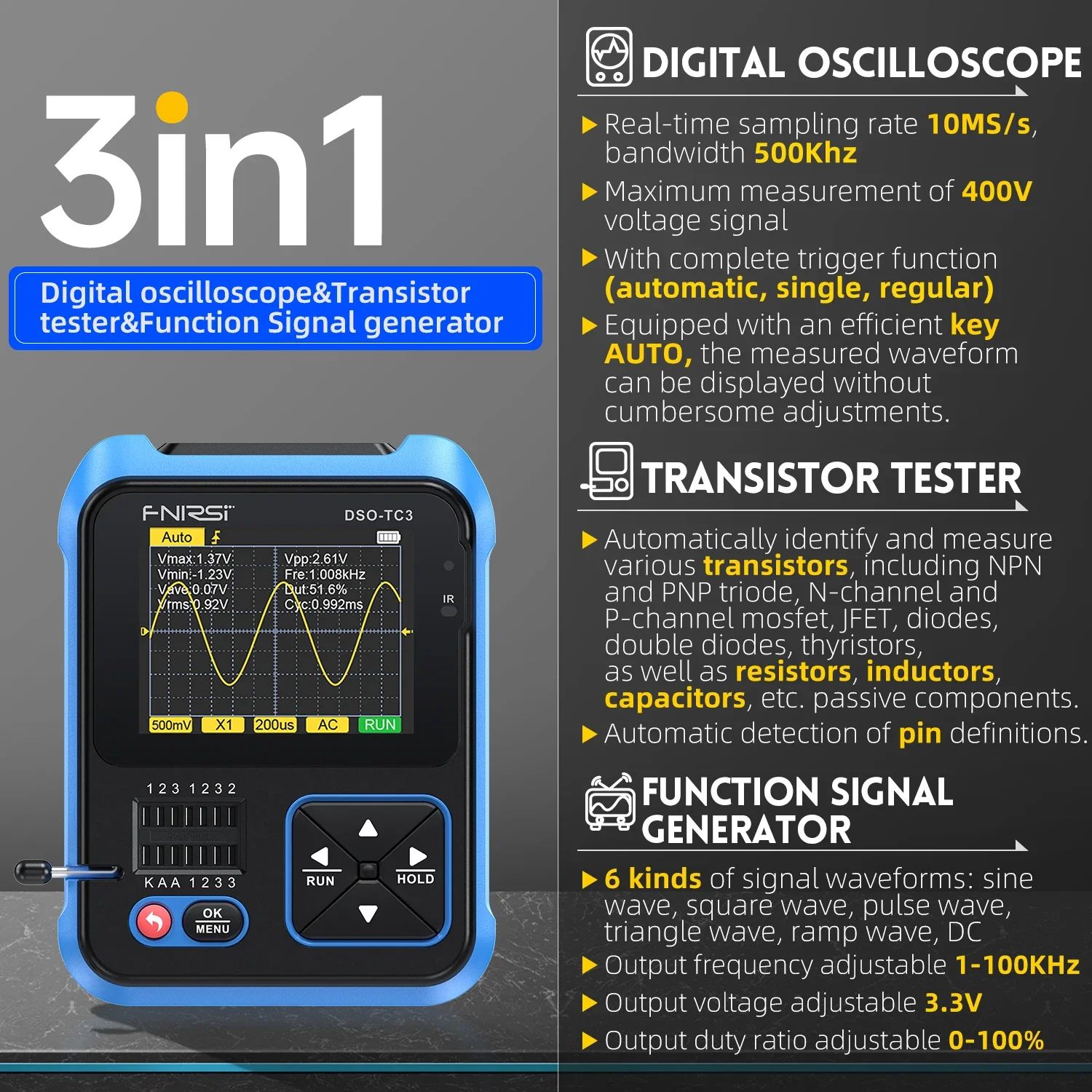

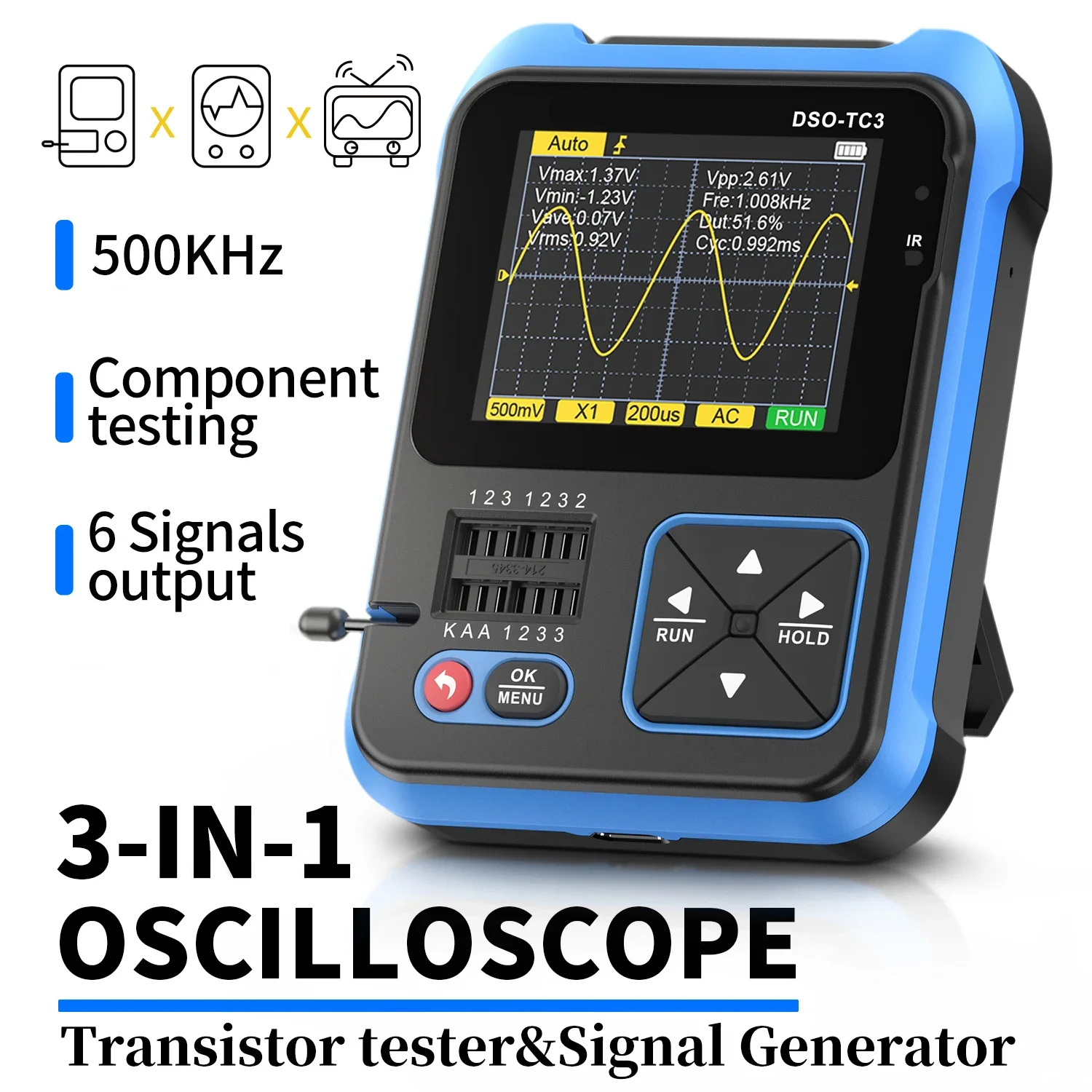

FNIRSI DSO-TC3 3 IN 1 Digital Oscilloscope Function Signal Generator Transistor Tester 500KHz 10MS/s Electronic Measuring Tester
