| Weight | 0.41 kg |
|---|---|
| Dimensions | 25 × 20 × 6 cm |
| Origin | Mainland China |
| Brand Name | FNIRSI |
| DIY Supplies | ELECTRICAL |
| Package Size | 18.2cmx12cmx7.3cm |

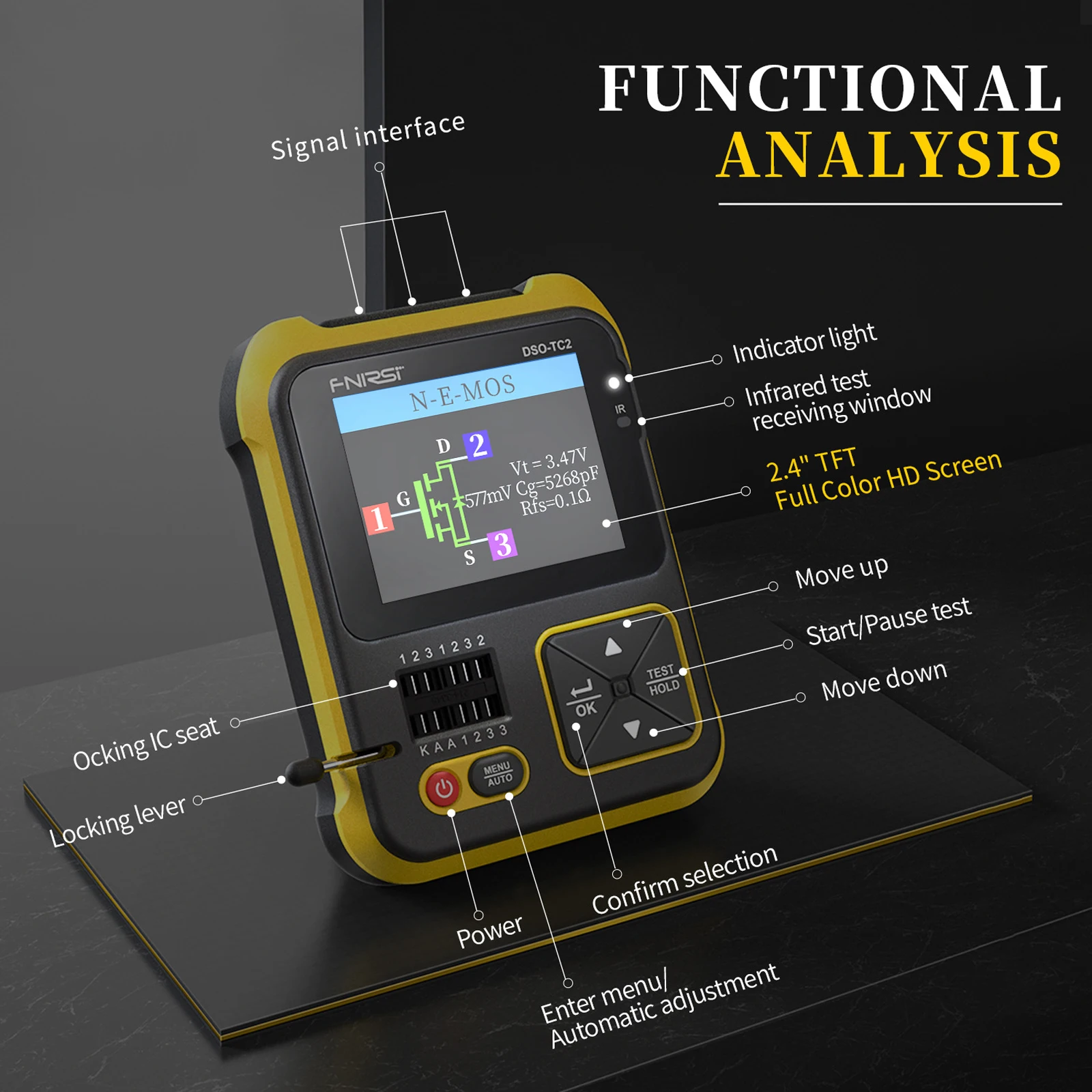

| Display screen | 2.4 inch TFT color screen |
| Supply voltage | Rechargeable lithium battery |
| Charging specifications | Type-C 5V |
| Bracket specifications | All-in-one foldable stand |
| Real-time sample rate | 10MSa/s |
| Analog Bandwidth | 500Khz |
| Input resistance | 1MΩ |
| Coupling method | AC/DC |

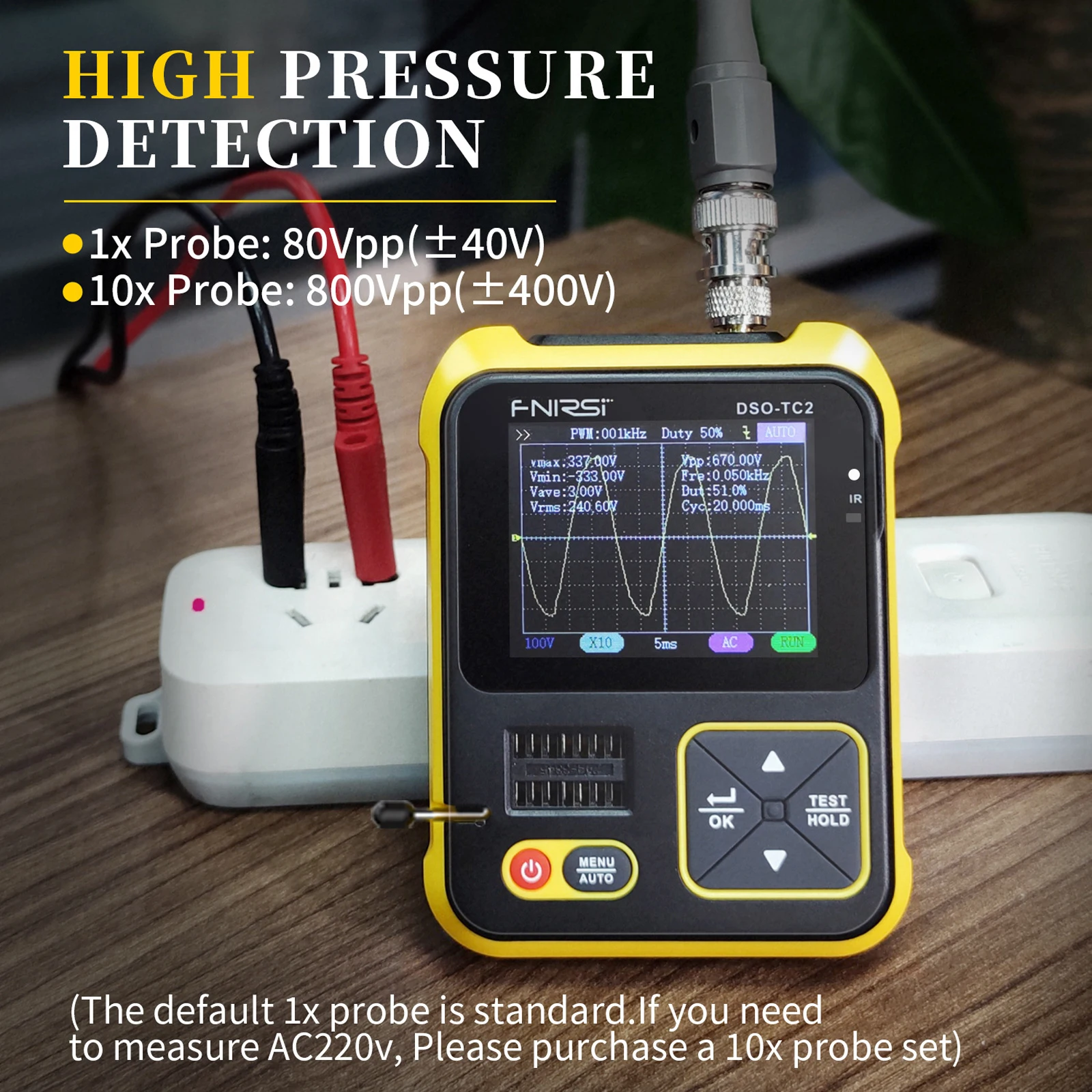

| Test voltage range | 400V |
| Vertical Sensitivity (x1) | 10mV-10V |
| Horizontal time base range | 1us-10s |
| Trigger mode | Auto / Normal / Single |
| Trigger type | Rising edge / Falling edge |
| Waveform Freeze | Yes |
| Automatic measurement | Yes |
| Diodes | Forward voltage drop <4.5V |
| Reglulated diode | 0.01~4.5V |
| MOSFET | JFET IGBT MOSFET |
| SCR | Turn-on voltage <5V, gate Pole trig |
| Capacitor | 5pF~100mF |
| Resistor | 0.01Ω~50MΩ |
| Inductor | 10uH~1000mH |
| Battery | 0.1~4.5V |
| Input voltage | 0~40V |
| DS18B20 | 0-85℃ |
| DHT11 | 0-60℃/5-95% |
| Infrared remote decoding | NEC protocol infrared code |
| Triangle wave | 1-10KHz/0-3.3V/50%, 1-10KHz/0-3.3V |
| Square wave | 1-100KHz/3.3V/50% |
| Pulse wave | 1-100KHz/3.3V/0-100% |
| Ramp | 1-10KHz/0-3.3V/0-100% |
| DC | 0-3.3V |
Instock

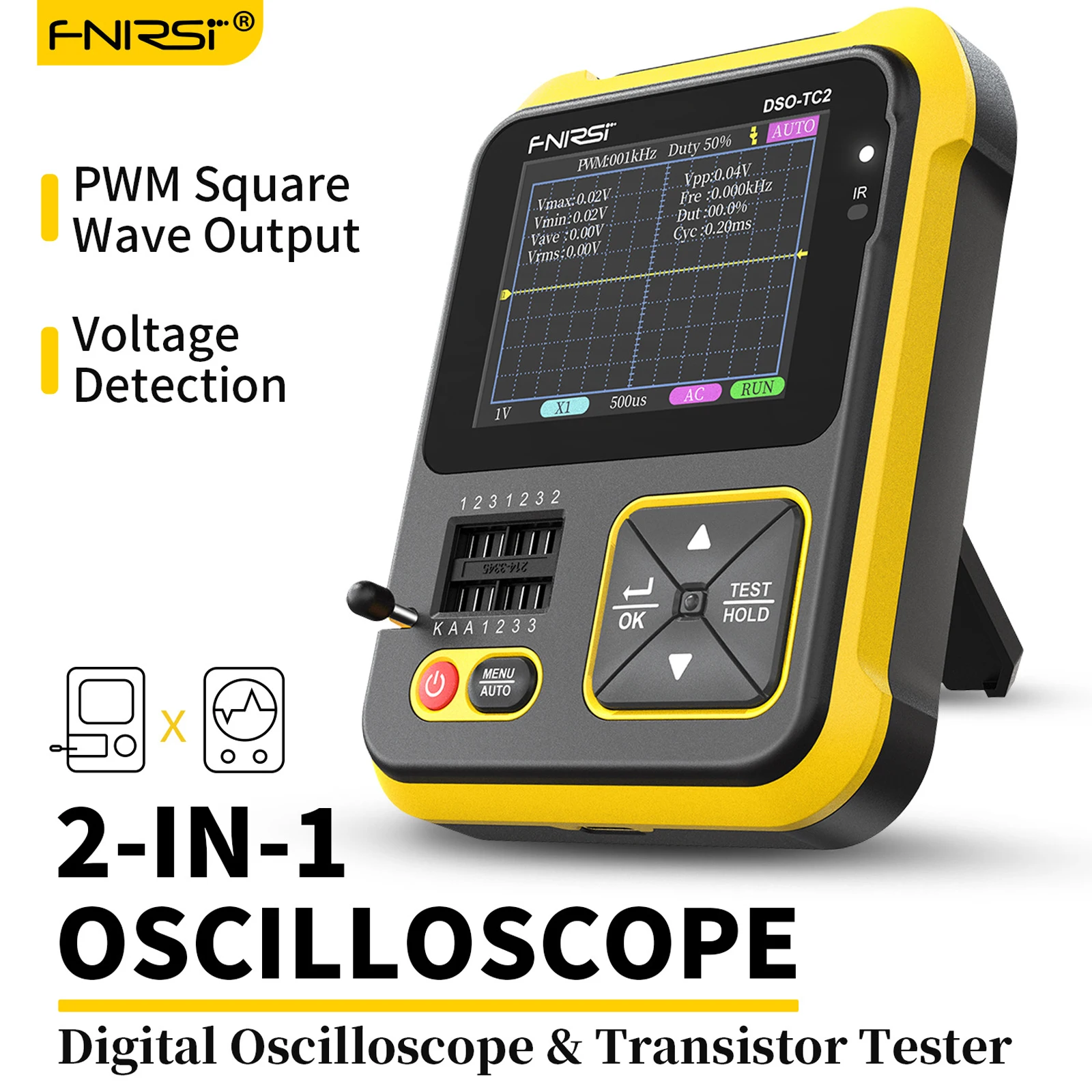

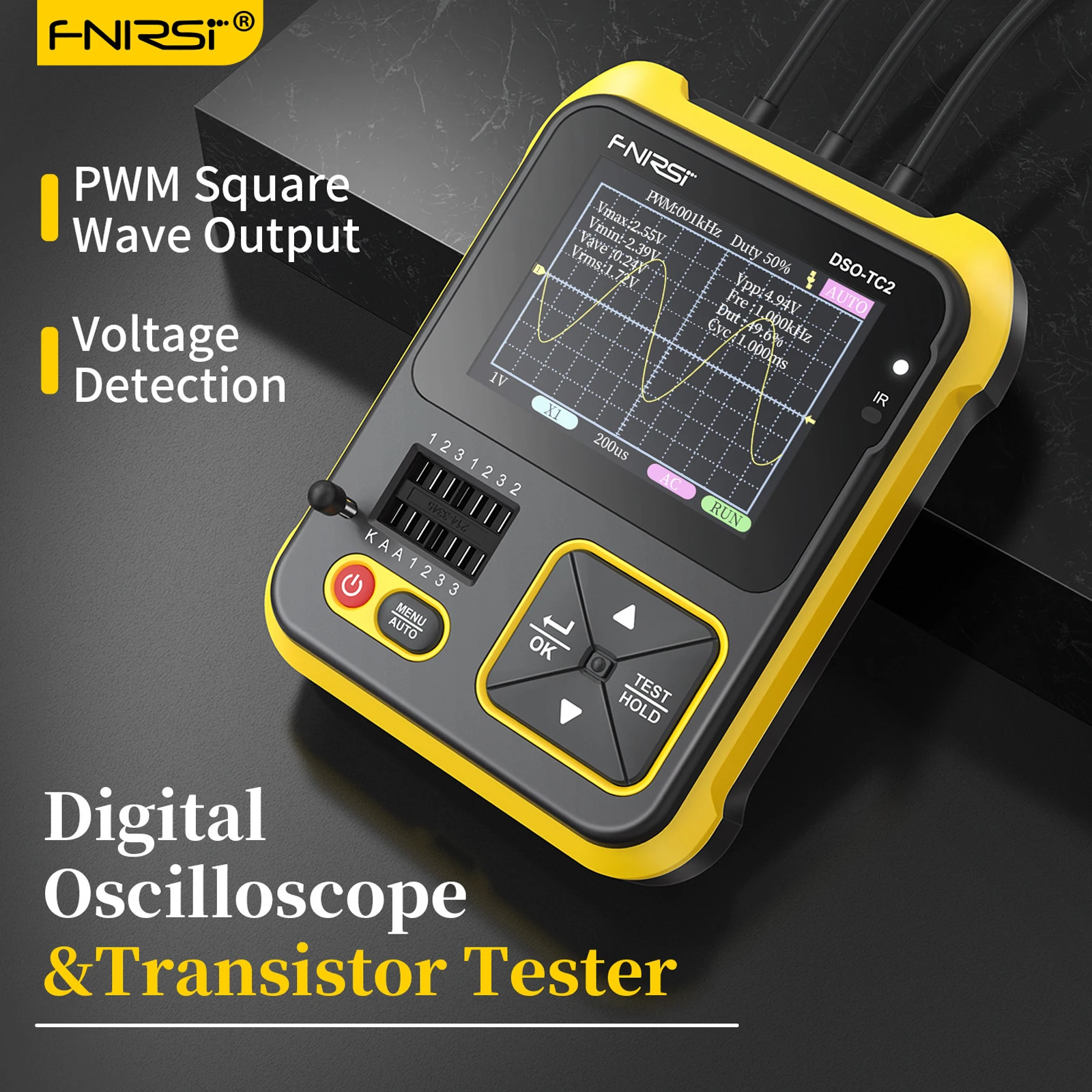

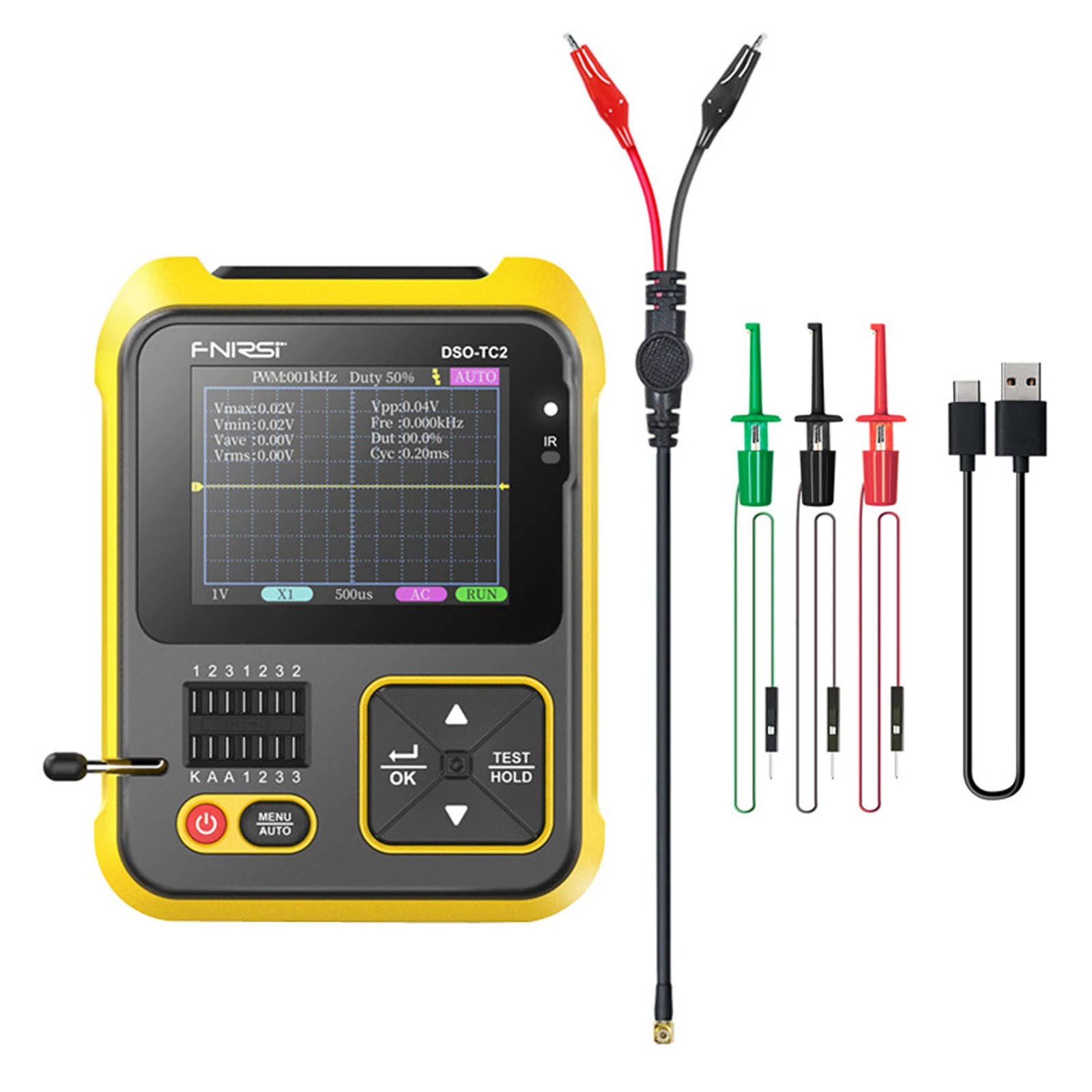

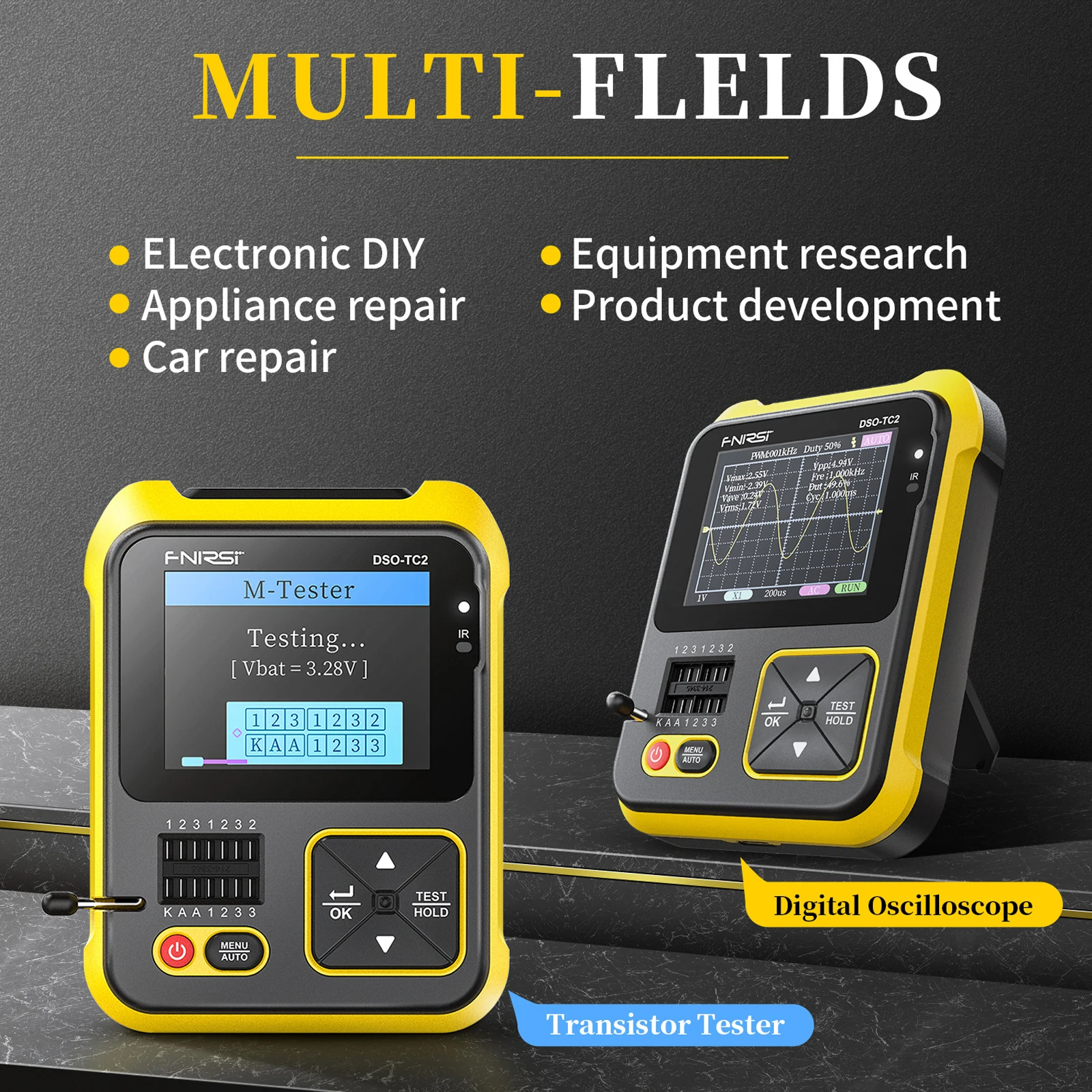

FNIRSI DSO-TC2 2 in 1 Multifunction Electronic Component Tester Digital Oscilloscope Transistor Tester Function Signal Generator
