| Weight | 1.1 kg |
|---|---|
| Dimensions | 25 × 19 × 10 cm |
| Hign-concerned Chemical | None |
| IS Battery Demountable | Yes |
| Record Length | 1Kpts |
| Model Number | 2C53T 3in1 Oscilloscope |
| Origin | Mainland China |
| Real Time Sampling Rate | 250MSaMSa/S |
| Brand Name | FNIRSI |
| Display resolution | 320*240 Pixels |
| DIY Supplies | ELECTRICAL |
| Band Width | 50MHz |

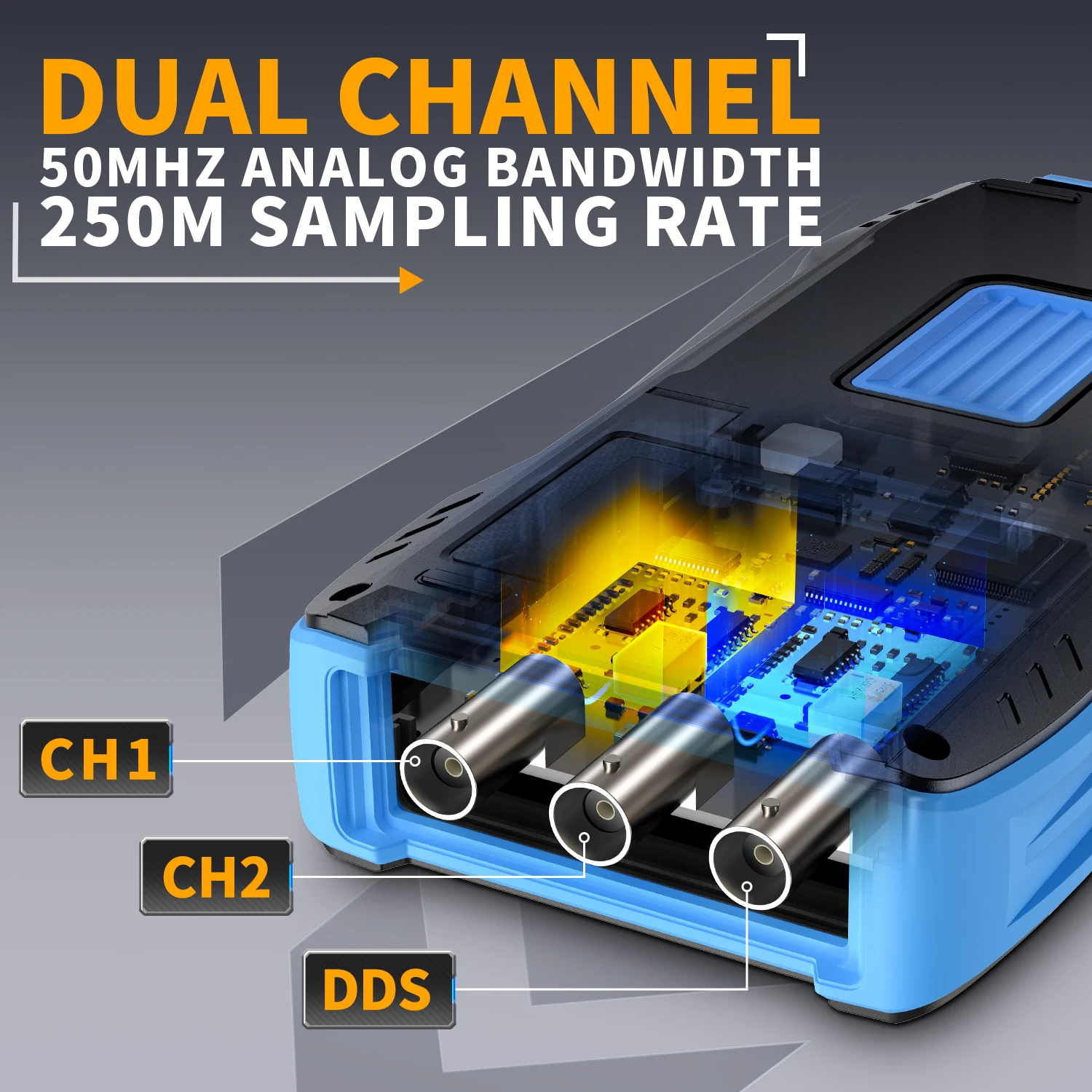

| Digital Channels | 2 |
| Display | 2.8'' HD color screen |

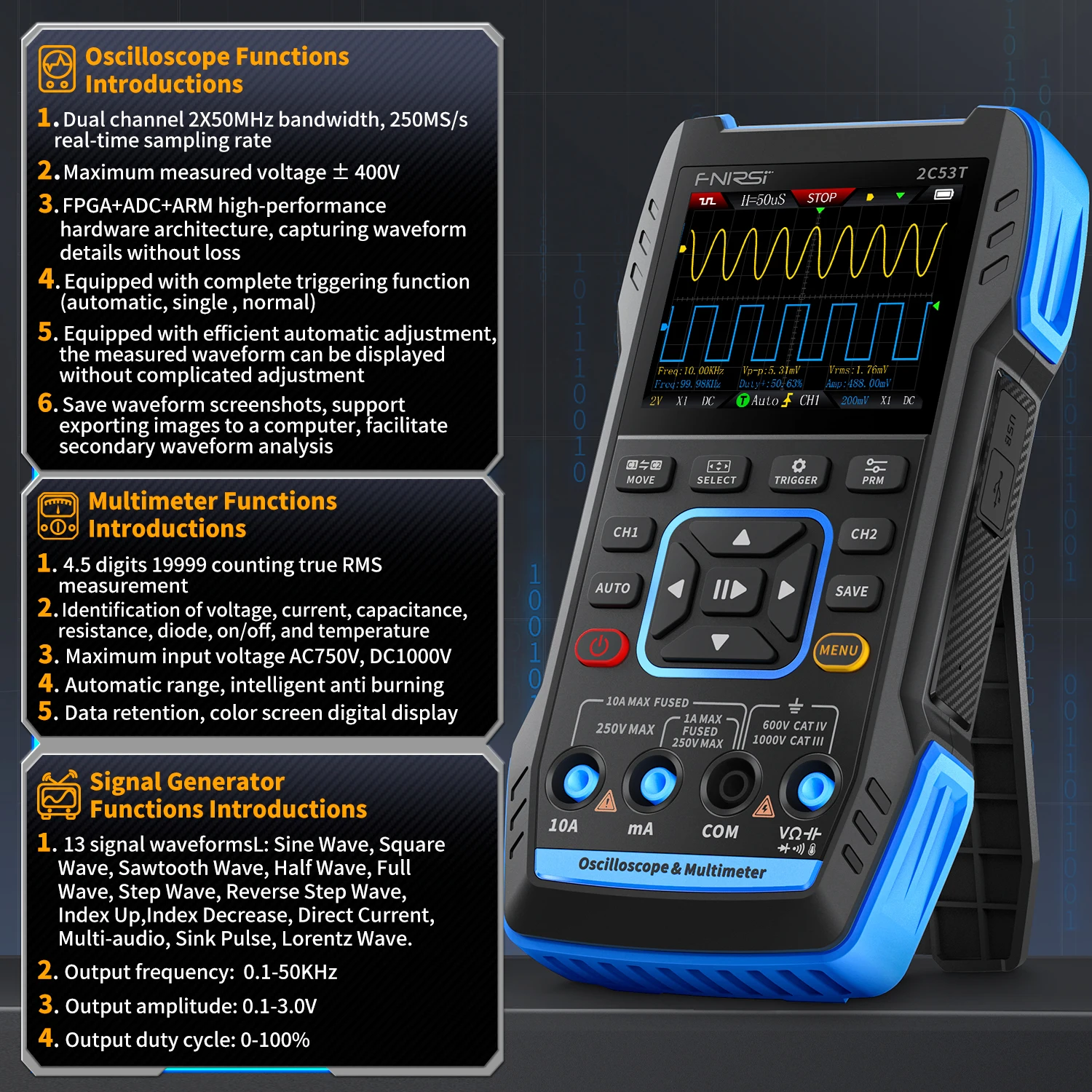

| Support functions | Oscilloscope+Signal generator+Multimeter |
| Impedance | 1MΩ |
| Time Base Range | 10ns-20s |
| Vertical Sensitivity | 10mV/div-10V/div (X1) |
| Max Measured Voltage | ±400V |
| Trigger Mode | AUTO/Normal/Single |
| Trigger Type | Rising edge, Falling edge |

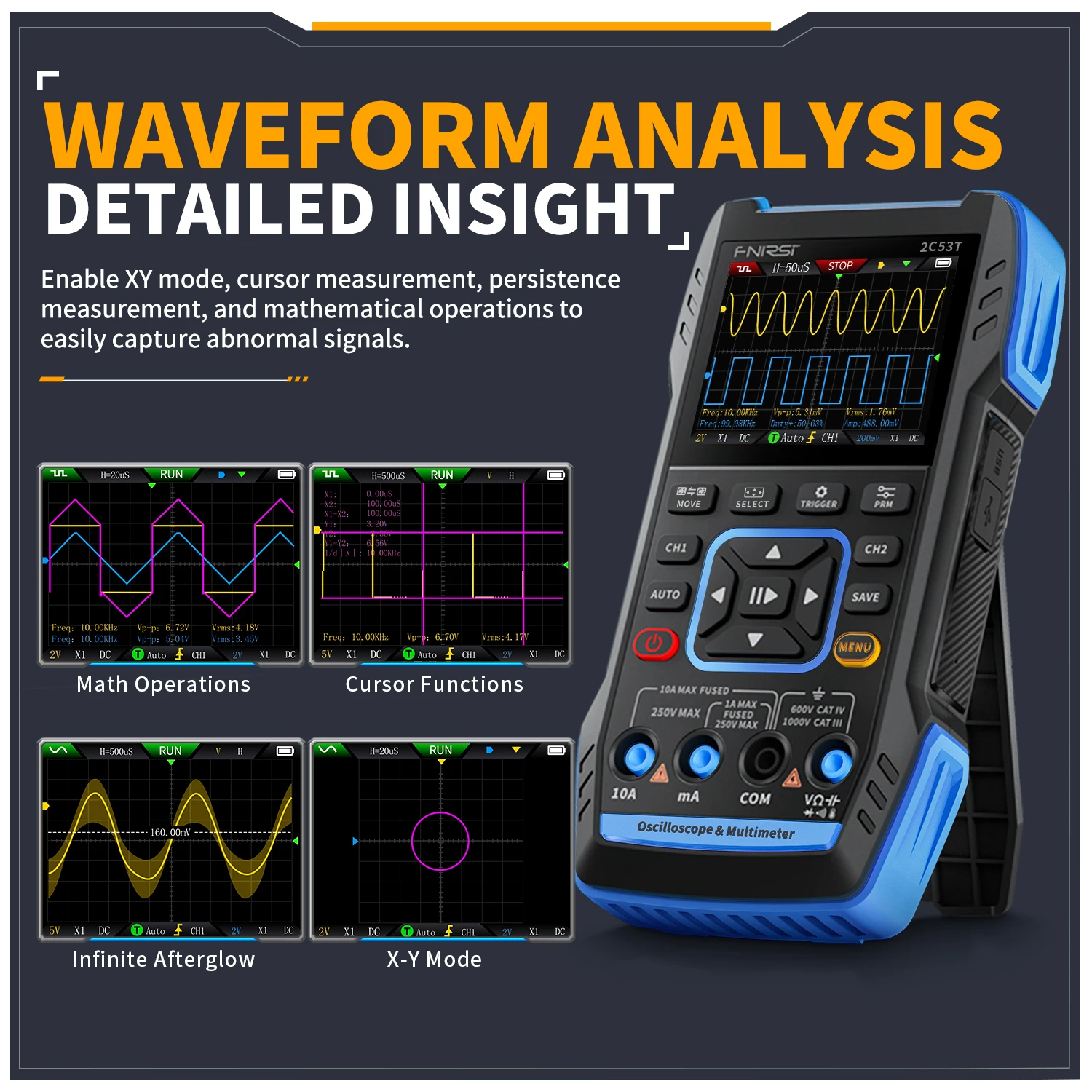

| Display Mode | Y-T/Rolling/X-Y |
| Coupling Method | AC/DC |
| Math | 8 Basic Operations & FFT |
| Cursor Measurement | Supported |
| Waveform Screenshot Save | Supported |
| Export Waveform Image | Supported |
| Output Waveforms | 13 types |
| Frequency output | 1Hz-50KHz |
| Amplitude | 0.1-3.0V |

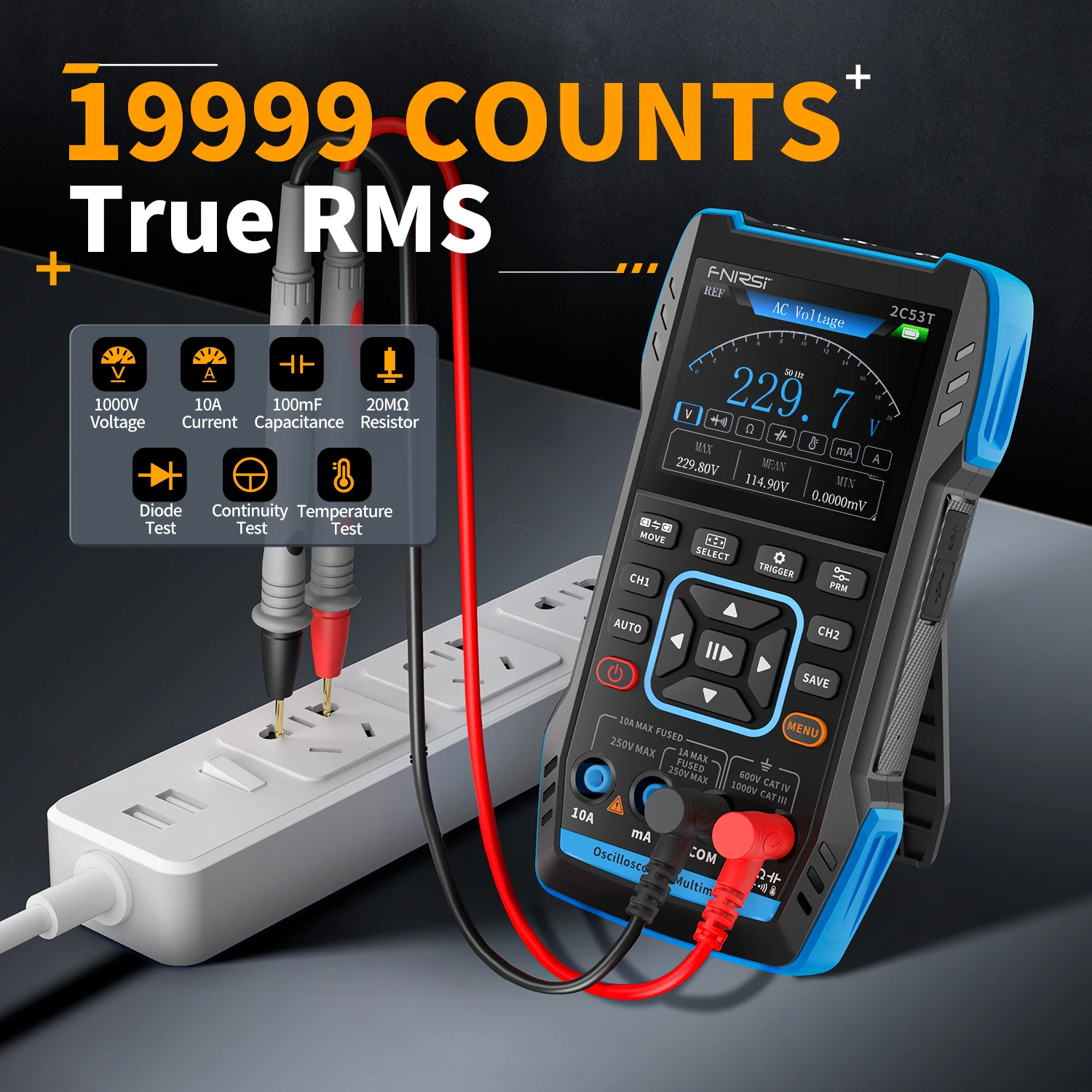

| DC Voltage | 1000V |
| AC Voltage | 750.0V |
| DC Current | 9.999A |
| AC Current | 9.999A |
| Resistance | 19.999MΩ |
| Capacitance | 99.99mF |
| Temperature | -55℃~1300℃/-67℉~2372℉ |
| Diode Test | YES |
| Continuity Test | YES |
Instock

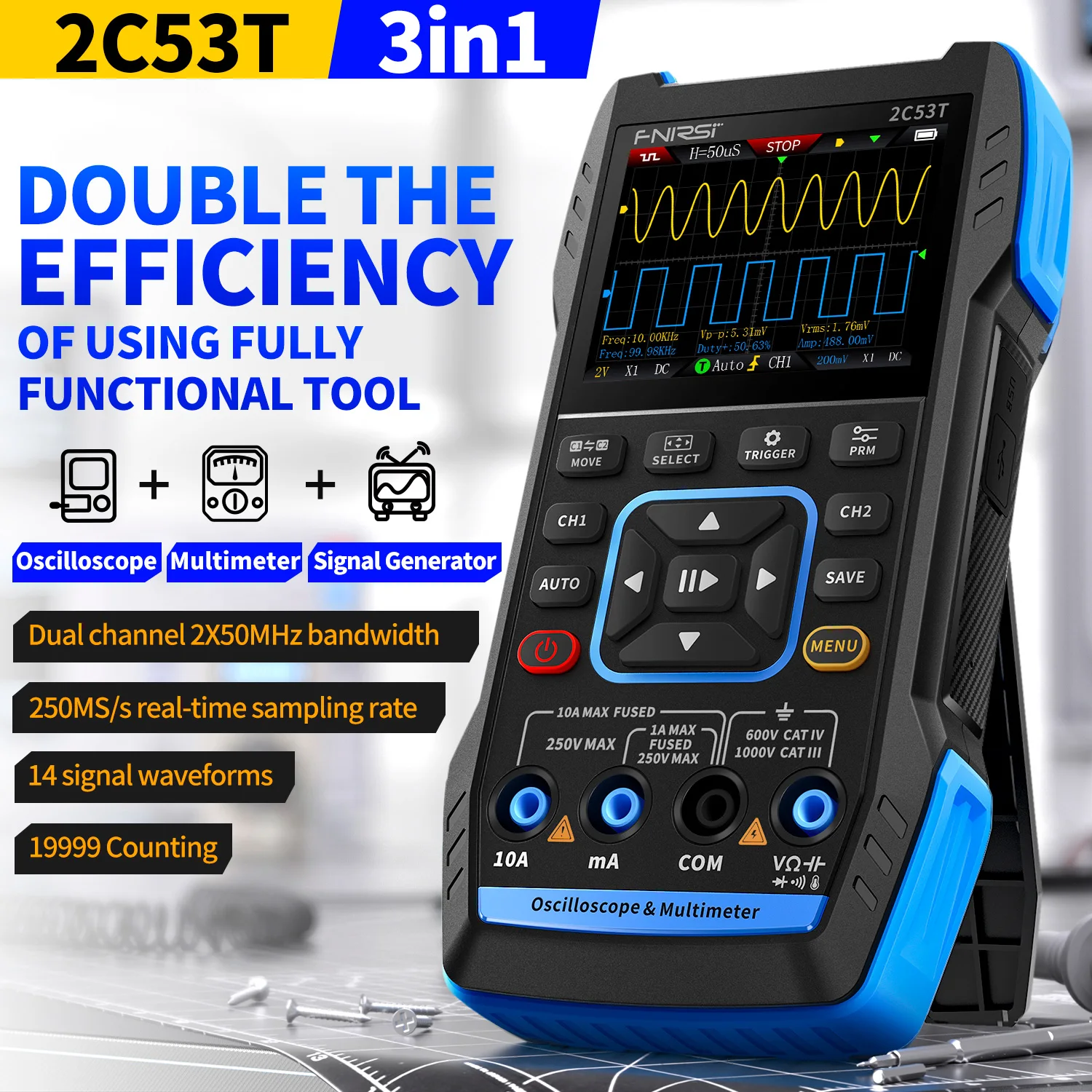

FNIRSI 2C53T 2C23T Upgrade 3in1 Oscilloscope Multimeter Signal Generator 50MHz Bandwidth 250MS Rate Dual Channel 20000 Counts
