| Weight | 0.7 kg |
|---|---|
| Dimensions | 25 × 13 × 8 cm |
| Hign-concerned Chemical | None |
| IS Battery Demountable | No |
| Max Waveform Capture Rate | 50, 000wfm/s |
| Record Length | Oscilloscope Multimeter Signal Generator |
| Model Number | Oscilloscope Multimeter Signal Generator |
| Certification | CE |
| Real Time Sampling Rate | 50MSa/s |
| Origin | Mainland China |
| Brand Name | FNIRSI |
| Display Size | 3.0 – 4.9 Inches |

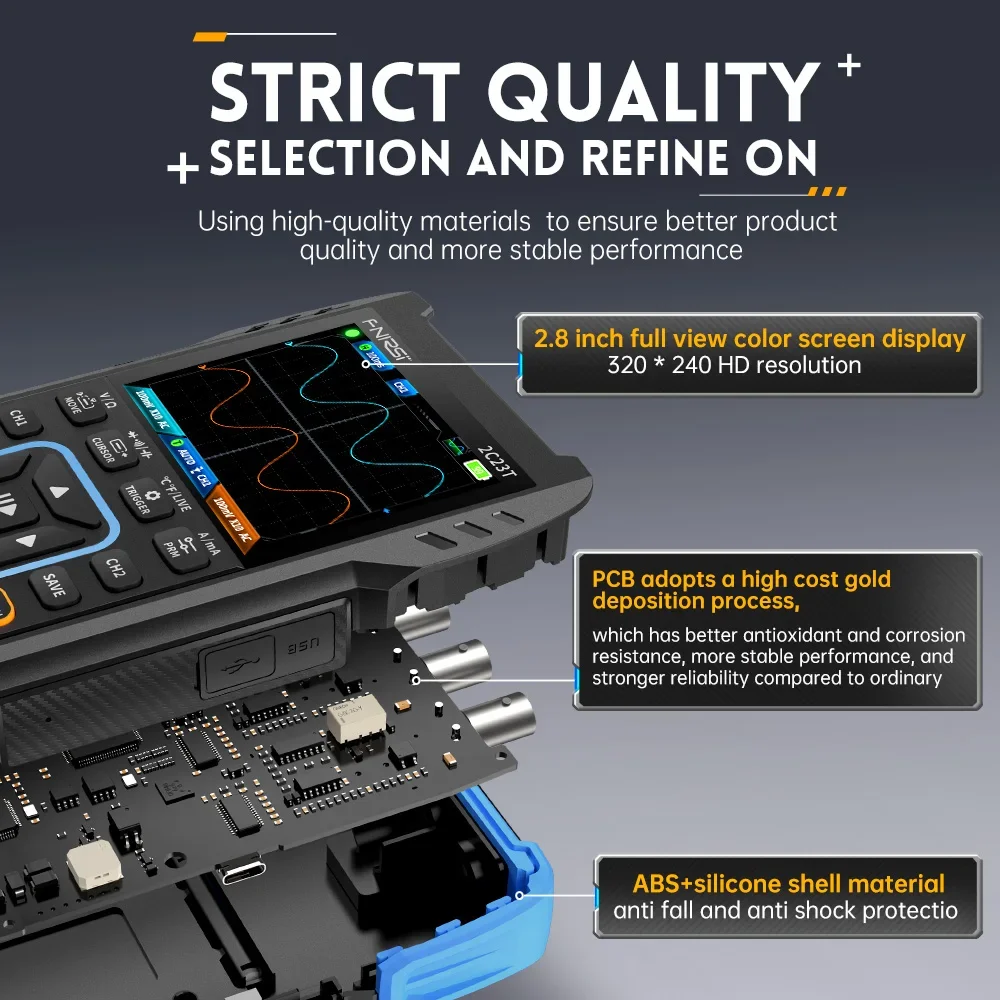

| Display resolution | 320*240 Pixels |
| DIY Supplies | ELECTRICAL |
| Band Width | 100-349MHz |

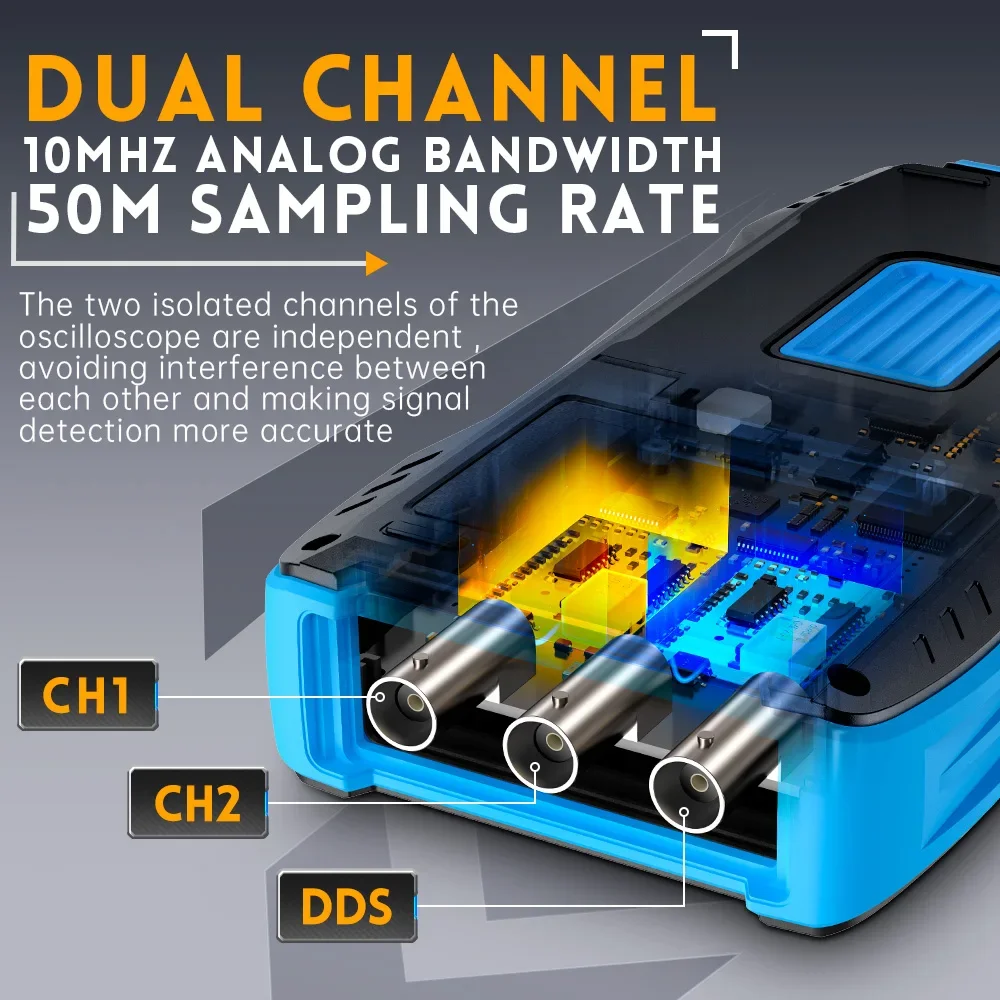

| Digital Channels | 2 |
| FNIRSI Model | 2C23T |
| Sample rate | 50M |
| Analog bandwidth | 10M(dual channel independent 10M) |
| Storage depth | 32kb |
| Impedance | 1MΩ |
| Time Base Range | 50ns-10s |
| Vertical sensitivity | 20mV/div-10V/div(X1) |
| Amplitude | 0.1-3.3V |
| Frequency | 1Hz-2MHz |
| Maximum measured voltage | ±400V |
| Trigger mode | AUTO/Normal/Single |
| Trigger type | Rising edge, Falling edge |
| Display mode | YT/Scroll |
| Coupling method | AC/DC |
| Save waveform screenshot | Yes |
| Export waveform images | Yes |
| DC Voltage | 9.999V~999.9V |
| AC voltage | 9.999V~750.0V |
| DC current | 9999uA~9.999A |
| AC current | 9999uA~9.999A |
| Resistance | 999.9Ω~99.99MΩ |
| Capacitance | 9.999nF 99.99mF |
| Temperature | (-55~1300℃)/(-67~2372℉) |
| Diode | Yes |
| Continuity test | Yes |
| Live line detection | Yes |
Instock

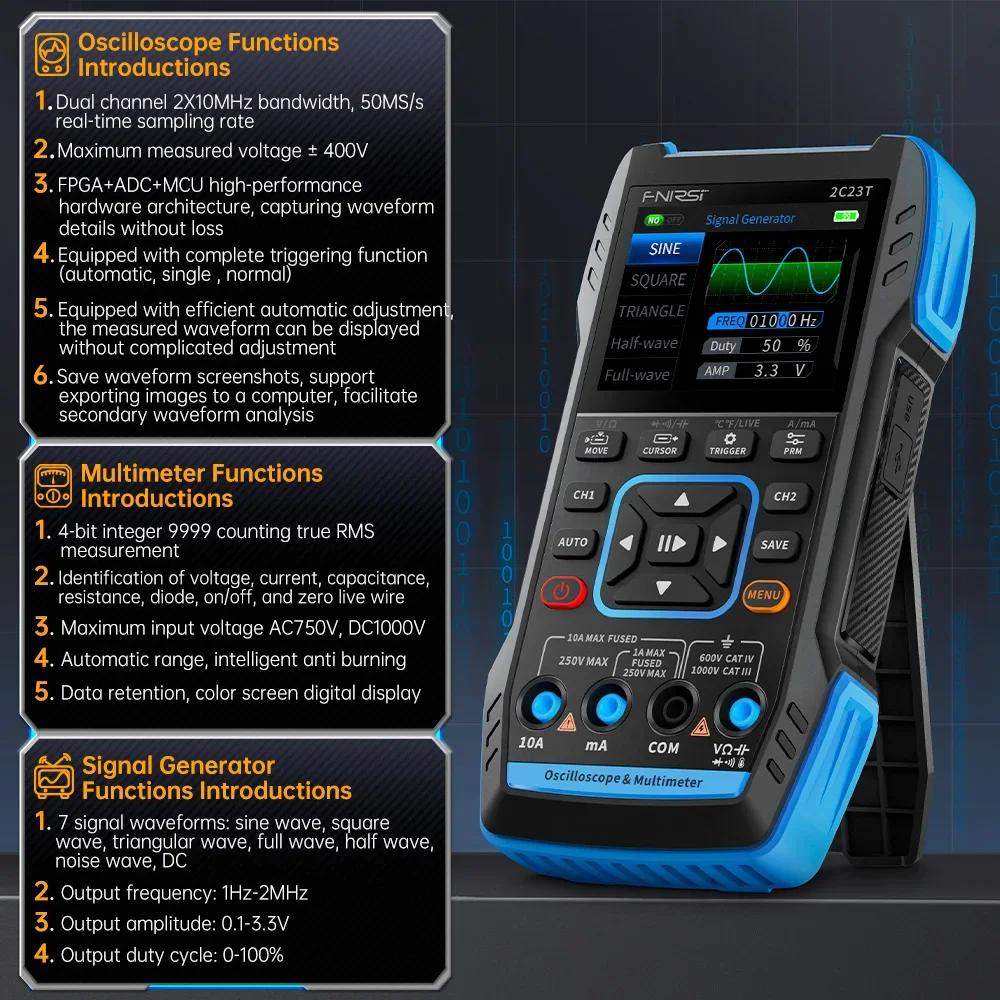

FNIRSI 2C23T 3 in 1 Digital Oscilloscope Multimeter Dual Channel Bandwidth Function Signal Generator Repair 50MS/s 10MHz*2 Tools
