| Weight | 0.05 kg |
|---|---|
| Dimensions | 5 × 3 × 3 cm |
| Hign-concerned Chemical | None |
| Is Smart Device | no |
| Operating Mode | Automatic |
| Measuring Capacitance Range | 0~9999.99Ah |
| Operating Temperature | 0~99 Celsius |
| DIY Supplies | ELECTRICAL |
| Certification | CE |
| Origin | Mainland China |
| Model Number | DC Energy Power Meter |
| Brand Name | Gaqqee |
| Dimensions | 47.59*28.67*25.33mm |
| Display Type | Digital display |
| Input/output interface | 10A/20A/50A/100A high current 2P terminals |

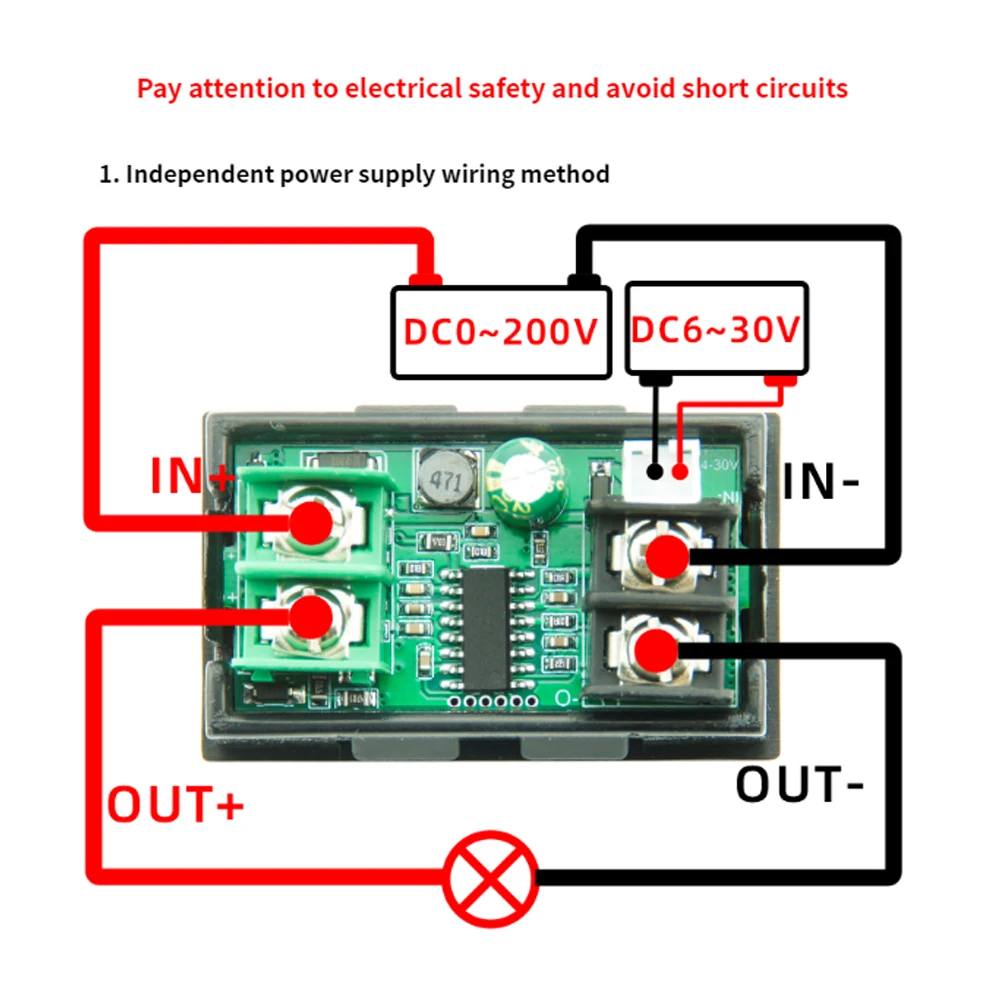

| Instrument working voltage 1 | XH-2P DC6~30V |

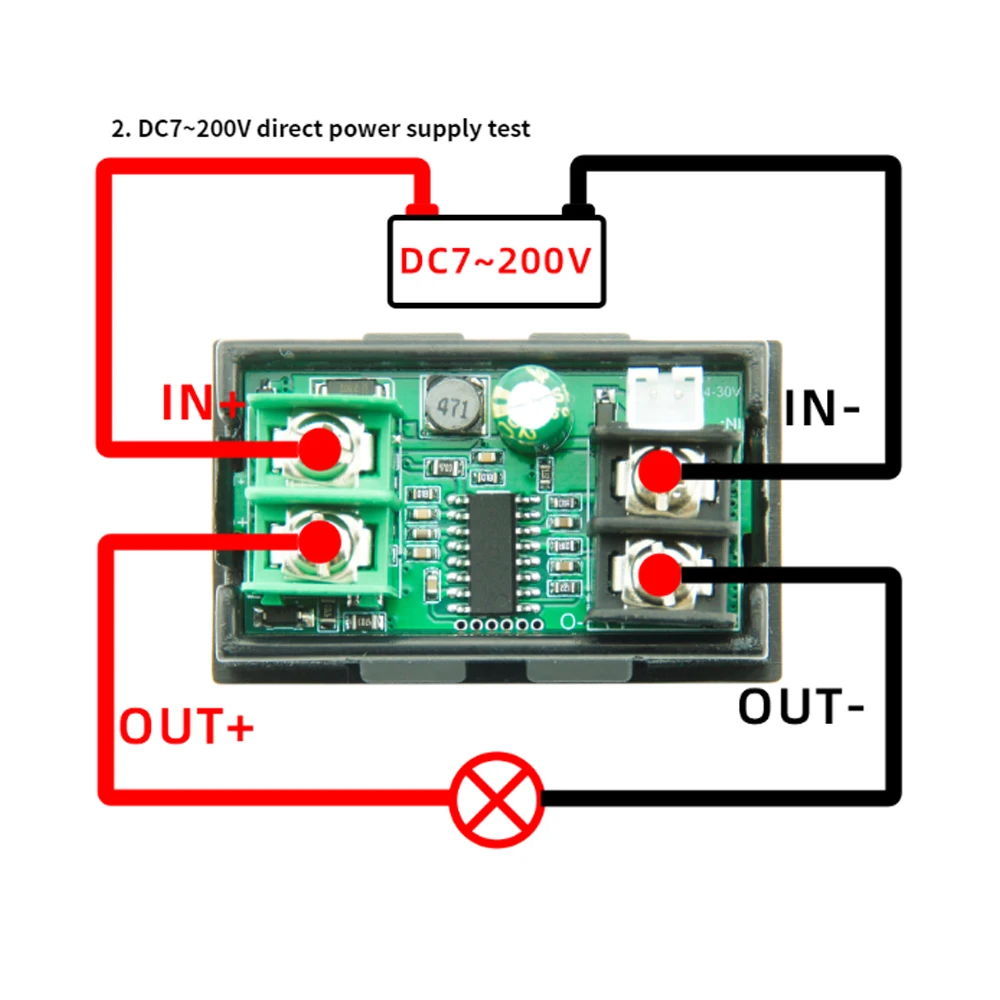

| Instrument working voltage 2 | Shared power supply DC7~200V/DC4~30V |
| Voltage measurement range | DC0~200V/DC0~100V |
| Current measurement range | 0.00A~10A/20A/50A/100A |
| Power measurement range | 00.00~1000W/4000W/5000W/9999W |
| Electricity measurement range | 0~9999.99Wh |
| Temperature measurement range | 0~99℃ |
| ime measurement range | 0~999:59:59(hours: minutes: seconds) |
| Data zeroing | support |
| No-load zeroing | support |
| Voltage trim | Support |
| Current fine-tuning | Support |
| Percentage power display | Support |
| Installation opening | 45*26mm |
Instock
DC 0-200V 20A Voltmeter Ammeter KWS Power Energy Meter LED Digital DC Wattmeter Meter 9-in-1 Multi-function Measuring Instrument
