| Weight | 0.4 kg |
|---|---|
| Dimensions | 20 × 15 × 10 cm |
| Model Number | Oscilloscope Multimeter Signal Generator |
| Origin | Mainland China |
| Real Time Sampling Rate | 50MS/s |
| Brand Name | FNIRSI |
| Display Size | 3.0 – 4.9 Inches |
| Display resolution | 320*240 Pixels |
| DIY Supplies | ELECTRICAL |
| Band Width | 10MHz*2 |
| Digital Channels | 2 |
| FNIRSI Model | 2C23T |
| Storage depth | 32kb |
| Impedance | 1MΩ |
| Time Base Range | 50ns-10s |
| Vertical sensitivity | 20mV-10V |
| Maximum measured voltage | ±400V |
| Trigger mode | AUTO/Normal/Single |
| Trigger type | Rising edge, Falling edge |
| Display mode | YT/Scroll/XY |
| Coupling method | AC/DC |
| Save waveform screenshot | YES |
| Export waveform images | YES |
| Frequency | 1Hz-2MHz |
| Amplitude | 0.1-3.3V |
| DC Voltage | 9.999V-999.9V |
| AC voltage | 9.999V-750.0V |
| DC current | 9999uA-9.999A |
| AC current | 9999uA-9.999A |
| Resistance | 999.9Ω-99.99MΩ |
| Capacitance | 9.999mF-999.9nF |
| Temperature | -55~1300℃ / -67~2372℉ |
| Diode | YES |
| Continuity test | YES |
| Live line detection | YES |
| Ladeanschluss | USB TYPE-C (5V/1A) |

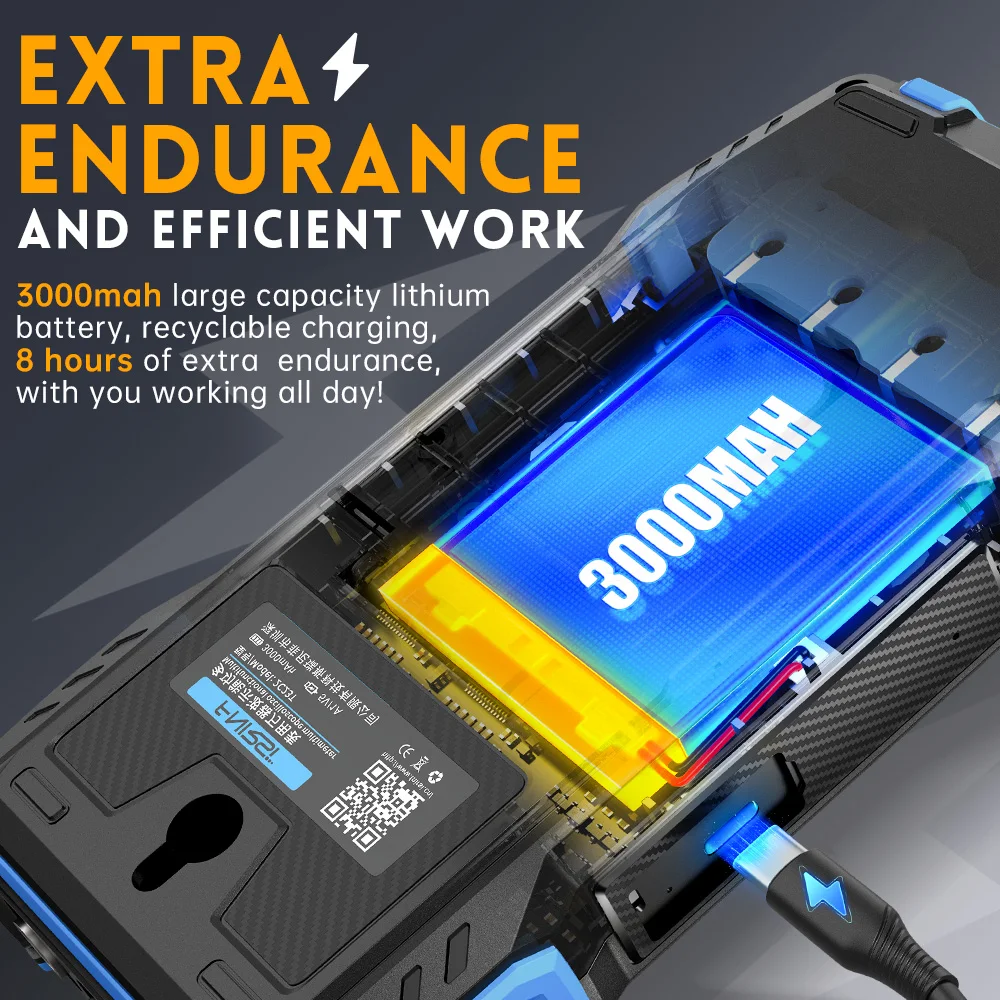

| Batterie | 3000mAh Lithium Akku |
| Standby Zeit | 6h (theoretisches Maximum, Laborwert) |
| Size | 167*89*35 mm |
Instock

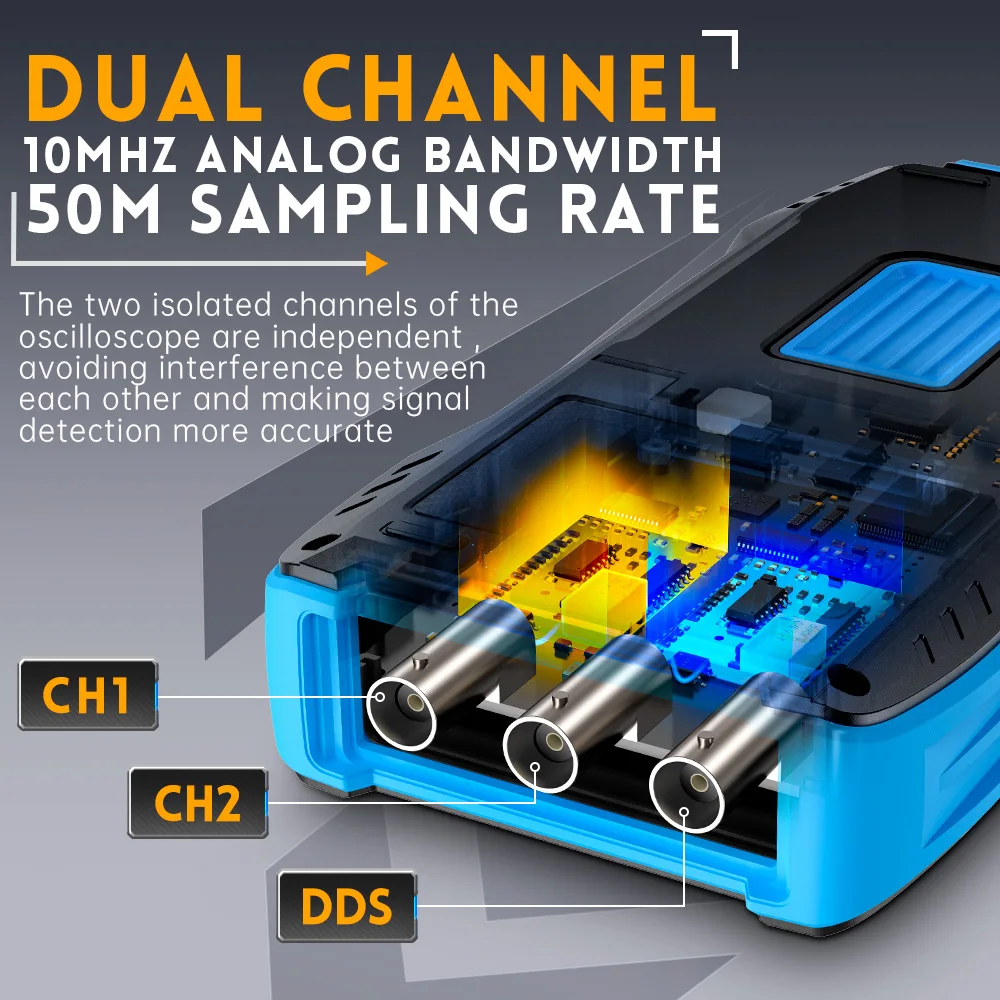

2C23T Digital Oscilloscope Multimeter 3 in 1 Dual Channel 50MS/s Sampling Rate 10MHz*2 Bandwidth Function Signal Generator
